        Clipsal 4RCBE220/30s | 20 Amp RCBO 1P+N 6kA 30mA
        $39.44 $35.85 ex. GST
        Video

        Learn more by watching our Clipsal 4RCBE220/30s | 20 Amp RCBO 1P+N 6kA 30mA video.

        Description

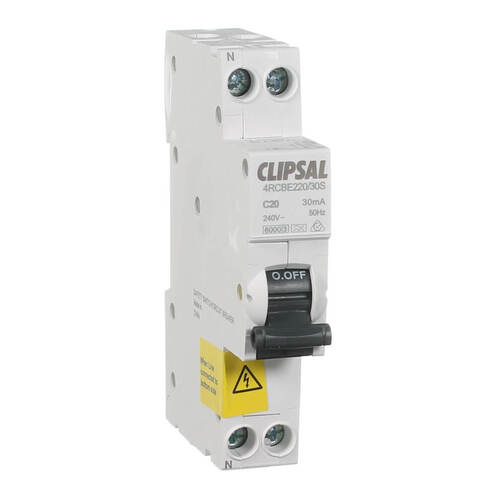

        Clipsal 4RCBE220/30s | 20 Amp RCBO 1P+N 6kA 30mA

        Clearance 68 Left - NO RETURNS

        Clipsal Resi Max RCBO is a Residual Current Breaker with Overcurrent Protection.
        The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
        The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic and commercial switchboards and load centres.
        The Clipsal 20 Amp RCBO also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

        This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.
        The 4RCBE220/30S RCBO can be wired from the top or bottom.

        Features:

        • Residual current breaker with overcurrent protection (RCBO)
        • Product brand: Clipsal
        • Poles description: 1P + N
        • Breaking capacity: 6 kA Top and bottom, line and load compatible
        • Neutral position: Left
        • Number of modules: 1
        • Number of protected poles: 1
        • [In] rated current: 20 A
        • Network type: AC
        • Trip unit technology: Thermal-magnetic
        • Curve: C
        • Earth-leakage sensitivity: 30 mA
        • Earth-leakage protection class: Type A
        • Narrow module design, allows for more RCDs/MCBs to be installed in the one enclosure
        • Two pole safety feature allows switching of both active and neutral contacts
        • Trip free locking device (lockable in 'ON' or 'OFF' position)
        • Compatible with Clipsal switchboards and switchboard accessories
        • AS/NZS 61009 compliance
        • Two–year warranty.

        This product has been replaced with

        (4RCBE220-30S)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 4RCBE220-30S
        Barcode # 9311554722630
        Shipping Weight 0.1410kg
        Shipping Width 0.074m
        Shipping Height 0.018m
        Shipping Length 0.098m
        Shipping Cubic 0.000131000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 20
        Height (mm) 92.5
        Width (mm) 18
        Depth (mm) 71.5
        Standards AS/NZS 61009
        Mounting Din Rail
        Breaking Capacity 6kA
        Voltage (V) 240V
        Curve C
        Neutral Position Left
        IP Rating IP20 ( IP40 Enclosed )
        Earth Leakage Protection Class Type A
        Box increments (This item is sold individually) 12
        Number of Poles 1P+N,1
        Earth Leakage Sensitivity 30mA
