        Learn more by watching our Clipsal MX9R3120 | 20A MAX9 RCBO 1PN C | 30mA Type A SLIM video.

        Additional related video.

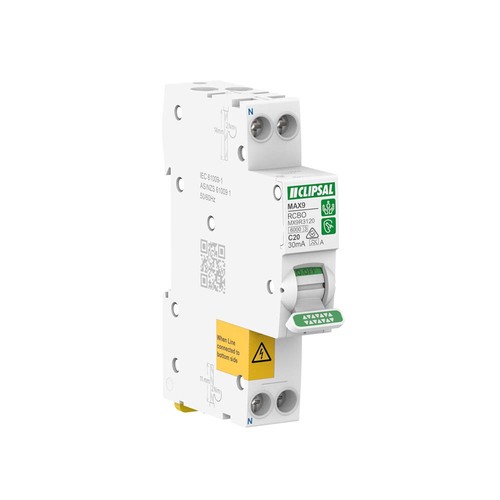

        Clipsal MX9R3120 | 20A MAX9 RCBO 1PN C | 30mA Type A SLIM

        The famous Clipsal RCD (also known as ‘Safety Switch’) is an absolute must for every home. In fact, it is a legal requirement for all new homes in Australia to have RCD protection for all final sub-circuits. Why? Because in the case of faulty appliances or wiring, this little device in your switchboard will help to disconnect power and help to save your loved ones from a potentially fatal electric shock.

        Electrical cables can get extremely hot due to overload and short circuits and potentially damage your home due to electrical fires.
        To help protect cables from damage, you need to have MCB installed at the switchboard.
        Instead of having a separate MCB and RCD for each circuit, make the smart choice with Clipsal SLIM RCBO. This is a combo device that will provide RCD & MCB functions in 1 device and save valuable space in your switchboard.

        The Clipsal MX9R3120 product is a residual current breaker with overcurrent protection (RCBO).
        The MX9R3120 is a 1P+N circuit breaker with 1 protected pole, 20A In rated current at 30øC and C tripping curve.

        Features and benefits:

        • Top and bottom line and load compatible for ease of installation.
        • Short circuit breaking capacity of 6kA.
        • Rated at 240V, 30mA, type A, C-Curve.
        • One module width – ideal for retrofit installations where space is limited.
        • The two-pole safety feature allows the switching of both Active and Neutral contacts.
        • Trip free locking device (lockable ‘ON’ or ‘OFF’ position).
        • Compatible with Clipsal’s 4LD Lock Dog.
        • AS/NZS 61009 compliance.

        Applications:

        • Ideal for retrofit installations where pole space is a problem.
        • Small width allows a greater number of RCBOs to be installed in one enclosure.

        Specifications

        • The operating frequency is 50Hz or 60Hz.
        • The earth leakage protection class is type A with a sensitivity of 30mA.
        • The earth-leakage protection time delay is instantaneous.
        • The Icn rated short circuit breaking capacity is up to 6000A at 240VAC.
        • It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
        • This product protects against short circuits, cable overload, electrical shock by indirect contact and fire hazards.
        • It brings safe, reliable solutions for commercial and industrial applications with high breaking capacity.
        • It has an RCM quality label.
        • The Ue rated operational voltage is 240VAC.
        • The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV.
        • It can be mounted on a DIN rail for modular installation.
        • The width in 9mm pitches is 2.
        • The dimensions are (W) 18mm x (H) 93mm x (D) 73mm.
        • The product colour is white (RAL9003).
        • The product weight is 136g.
        • According to IEC 60529 standard, the degree of protection is IP20.
        • The pollution degree is 2.
        • The operating temperature is from -25øC to +70øC.
        • The storage temperature is from -40øC to +85øC.
        • This product complies with IEC 61009-2-2 and EN/IEC 61009-1 standards.

        (MX9R3120)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9R3120
        Model # MX9R3120
        Barcode # 9311554812713
        Package Weight 0.142kg
        Package Width 0.098m
        Package Height 0.068m
        Package Length 0.022m
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 20A
        Voltage (V) 240Vac
        Breaking Capacity 6kA
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class A-type
        Curve C-curve
        Poles 1P+N
        Tripping Standard
        Equivalent Max 4 Reference 4RCBE220/30S
        Equivalent Hager Reference ADC920T
