        Learn more by watching our Clipsal Iconic Outdoor video

        Clipsal Iconic Outdoor range - see what all the hype is about!

        Outdoor power points and light switches like never seen before.

        Discover the Iconic® Outdoor range Redefining weather-proof products, Iconic Outdoor is the innovative new range that achieves a balance between simplicity of installation, clever technology and consumer-friendly aesthetics. Designed for the residential market but with electrical contractors in mind, the range is suitable for Zone 2 applications.

        • Reducing the time to install saves everyone time and money - New patented technology for a faster, weather-protected finish.
        • Built to withstand the harsh Australian outdoor living
        • Future-proof design - Clipsal WiserTM smart connectivity and stylish finishes to suit your customer's needs

        Clipsal Iconic Outdoor - Available at Sparky Direct

        Clever functionality

        Iconic Outdoor is
        RELIABLE

        These outlets have IP54 protection, all Iconic Outdoor Socket Outlets have a spring-loaded sealing shutter with a designed water channel. It is suited for applications such as zone 2 wet areas due to its IP54 protection.

        EASY TO USE

        So to make things simple and water-resistant, there is no need to drill holes in the products because they are designed with mounting holes outside the waterproof region. Because of the location of the mounting holes, no sealant or Screw caps are required, resulting in a clean, quick installation that maintains its IP54 rating.

        INGENIOUS

        Eliminating the need for sealants because the seals are built into the frame of all conduit entries. Pull tabs make it simple to open the seals, making installation a breeze.

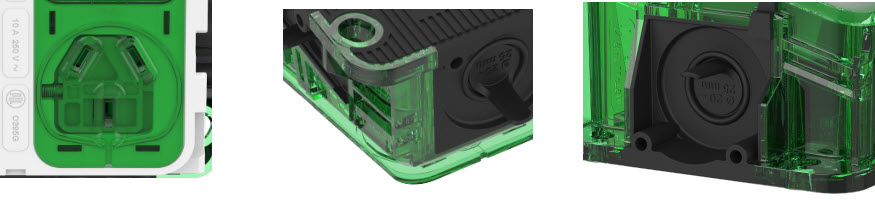

        Clipsal Outdoor Iconic Reliable

        Designed alongside electricians

        Iconic Outdoor has been developed and tested with Electricians to bring clear innovations, and a more reliable form while simplifying many steps in the installation process.

        A quick and easy-to-install outdoor solution that has been tested for durability in Australian backyards. Residential-focused aesthetic that complements the design of the home. Bringing the indoors outside by enhancing the look of your outdoor entertaining area and increasing functionality with smart home connectivity. Perfect for new builds, renovations, and retrofits

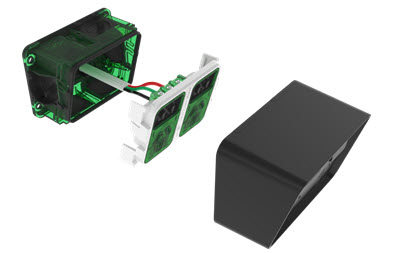

        Exploded view Clipsal Iconic outdoor

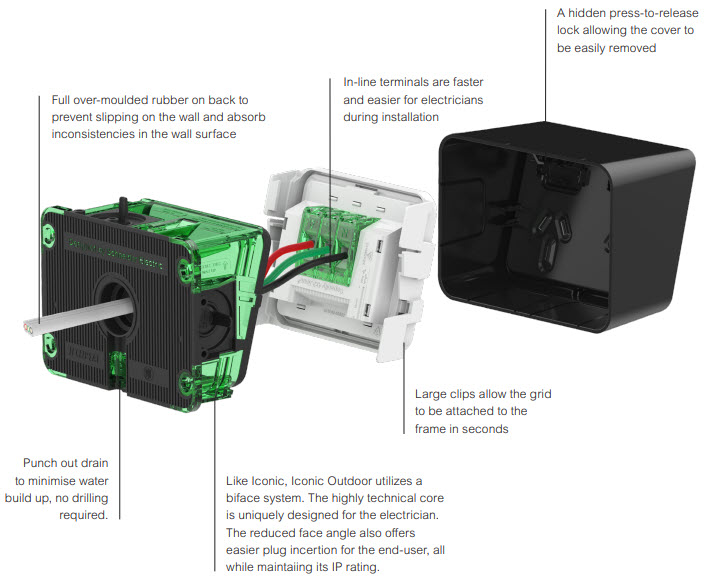

        Iconic Outdoor has so many innovative features.

        • Full over-moulded rubber on the back to prevent slipping on the wall and absorb inconsistencies in the wall surface
        • In-line terminals are faster and easier for electricians during installation.
        • A hidden press-to-release lock allows the cover to be easily removed
        • Punch-out drain to minimise water build-up. No drilling is required.
        • Like Iconic, Iconic Outdoor utilizes a biface system. The highly technical core is uniquely designed for the electrician. The reduced face angle also offers easier plug insertion for the end user, all while maintaining its IP rating.
        • Large clips allow the grid to be attached to the frame in seconds

        Connected Solution

        Scalable, from one switch to an entire home

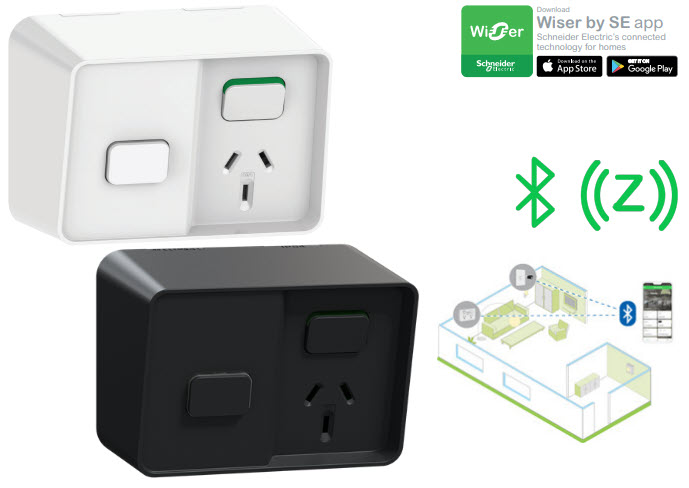

        The Iconic Outdoor Single switched socket with timer leverages BLE (Bluetooth Low Energy) and Zigbee technology, making them ultra-flexible and scalable. Iconic connected devices in BLE default mode can be swapped to Zigbee mode after installation to allow the smart home to evolve over time with the changing needs of the end-user.

        Clipsal Iconic with a timer

        iconic outdoor timer

        Room Control

        Use the Wiser by SE App to set timers, schedulers or specific device features by pairing your smartphone to an Iconic connected device in BLE mode. When in the room, the end-user can switch loads and dim lights through the Wiser by SE App or directly via the wall-mount switch. The Wiser Hub is not required.

        Wiser System

        For an advanced smart home experience, Iconic connected devices in Zigbee mode can interact with other Wiser devices that are connected to the Wiser Hub. This allows the end-user to benefit from the full feature set provided by the Wiser system, including Moments, sensor triggered actions, remote access to the home and voice control. The user is still able to control loads via the wall-mounted switches or the Wiser by SE App. See the Wiser System User Guide for more details.

        Connected Devices (BLE default)

        O3015T-XW Single switched socket with timer 10A 250V

        O3015T-XW Single White switched socket with timer 10A 250V

        O3015T-BK Single Black switched socket with timer 10A 250V


        Iconic Outdoor

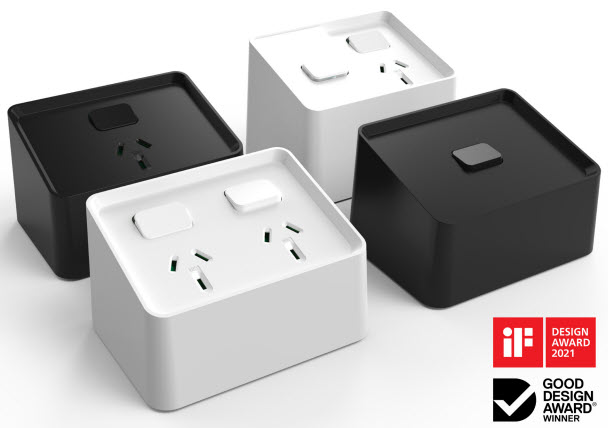

        The Good Design Awards jury commented:

        "The clean and contemporary exterior conceals clever features for safety and sealing, making it a significant departure from existing outdoor electrical accessories."

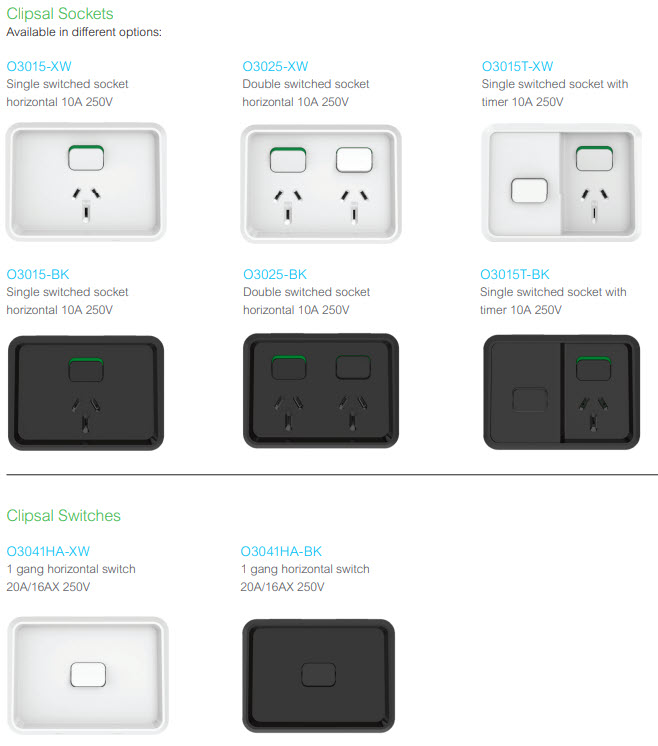

        Range overview

        Clipsal Sockets are Available in different options:

        • O3015-XW Single switched socket horizontal 10A 250V
        • O3015-BK Single switched socket horizontal 10A 250V
        • O3025-XW Double switched socket horizontal 10A 250V
        • O3025-BK Double switched socket horizontal 10A 250V
        • O3015T-XW Single switched socket with timer 10A 250V
        • O3015T-BK Single switched socket with timer 10A 250V

        Clipsal Switches

        • O3041HA-XW 1 gang horizontal switch 20A/16AX 250V
        • O3041HA-BK 1 gang horizontal switch 20A/16AX 250V

        The complete Iconic Outdoor range is available at Sparky Direct.

        Clipsal Iconic outdoor Switches and sockets

        Accessories

        Conduit Covers

        The Clipsal Iconic outdoor conduit covers come in 20mm or 25mm diameter- they are designed to accept conduits and make a clean neat fit when entering into an Iconic outdoor switch or PowerPoint. Accepts both flexible and rigid conduits

        Summary

        Clipsal Iconic outdoor is redefining weather-proof products, Iconic Outdoor is an innovative new range that achieves a balance between simplicity of installation, clever technology and consumer-friendly aesthetics. Designed for the residential market but with electrical contractors in mind, the range is suitable for Zone 2 applications. Iconic Outdoor sockets have an IP54 protection rating, while Iconic Outdoor switches have an IP56 protection rating.

        Easy to install, and they look great - it's a no-brainer, switch out to Clipsal Iconic outdoor today, available at Sparky Direct.

        Outdoor Iconic like never before
