        NLS 30664 | 4 Pole 63Amp Isolating Switch | IP56 Weather Protected
        $18.15 $16.50 ex. GST
        Video

        Learn more by watching our NLS 30664 | 4 Pole 63Amp Isolating Switch | IP56 Weather Protected video.

        Description

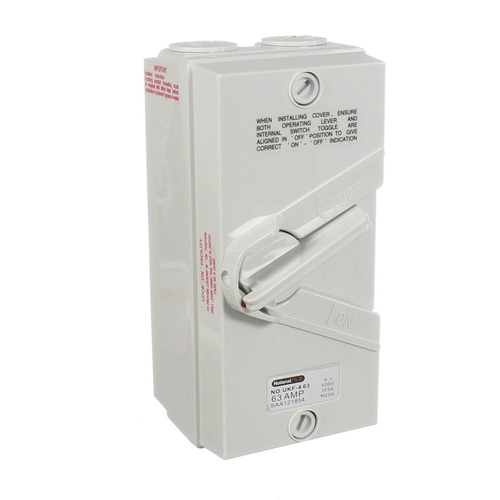

        NLS 30664 | 4 Pole 63Amp Isolating Switch | IP56 Weather Protected

        Suitable for Air Conditioners and many other isolating purposes. These outdoor isolator switches are robust and can stand the harsh Australian sun.
        Electricians and Air conditioner installers find these isolators easy to install and find the neutral link and earth link located inside very handy. The terminals are large and will easily clamp down on 6mm - 8mm cable if required.

        Features:

        • Amperage: 63amp
        • 4 Phase
        • The isolator switch complies with IEC/EN60947-3 and AS/NZS60947-3 standard.
        • Facility for padlocking in both on and off position provided, thereby enabling conformity to the electricity at work regulations.
        • The enclosure is made of high impact polycarbonate plastic material combining good insulation properties with strength, durability and style.
        • Silica gel basket seal is used between lid and base to provide environmental protection.
        • 2 x 25mm screwed entries on top of mounting block
        • 2 x 25mm screwed entries on bottom of mounting block
        • Supplied with two 25 to 20mm reducers for optional installation to 20mm conduit.
        • IP56 Rating prevents water and dust ingress.
        • Width: 84mm
        • Height: 84mm
        • Length: 174mm

        (30664)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30664
        Barcode # 9336700013769
        Shipping Weight 0.5290kg
        Shipping Width 0.085m
        Shipping Height 0.180m
        Shipping Length 0.090m
        Shipping Cubic 0.001377000m3
        TYPE VALUE
        Brand National Light Sources
        Range WeatherX
        Colour Resistant Grey
        Rated Current (A) 63
        Height (mm) 84
        Width (mm) 84
        Length (mm) 174
        Complete / Skin Only / Grid Plate Only Complete
        Number of Switches / Gangs 1
        Standards IEC/EN60947-3 and AS/NZS60947-3
        Protection IP56
        Number of Poles 4
