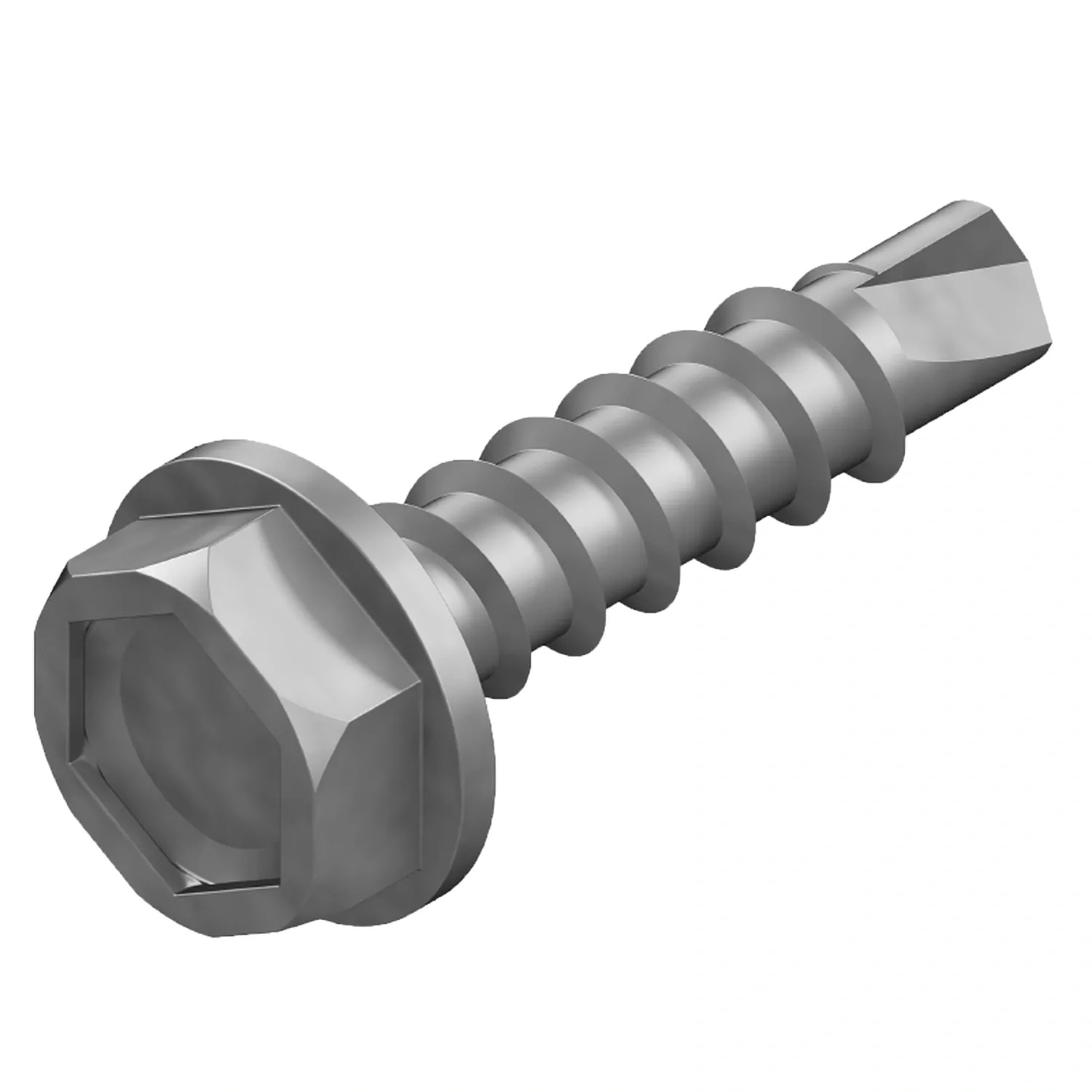

        Matelec | Hex Head Drill Point Screw 12G x 20mm | Mechanically Galvanised Steel

        The Matelec HXD-G12M20-G is a hex head drill point screw, 12 gauge by 20mm, supplied 200 per jar. The head takes a 5/16 inch hex socket driver, and the drill point cuts its own hole in sheet metal and light steel sections. The HXD-G12M20-G is made from mechanically galvanised steel, one of the three materials supplied in the Matelec fastener range.

        A drill point screw makes its own hole, so fixing into sheet metal is one operation instead of drilling and then driving. The drill point on the HXD-G12M20-G cuts and threads in one pass, with no pilot hole. The 5/16 inch hex head takes a socket or nut driver rather than a screwdriver bit.

        Every hex head screw in the Matelec fastener range drives with the same 5/16 inch socket, so one driver covers the group. The HXD-G12M20-G is the heavier gauge in that group, at 12 gauge by 20mm. The finish is mechanically galvanised steel, the same as the other hex head drill point codes.

        Features

        • Drill point tip — the point drills its own hole and threads in one action, with no separate pilot drilling step on sheet metal.
        • 5/16 inch hex head — driven with a 5/16 inch hex socket driver or nut driver rather than a bladed or square bit.
        • 12 gauge shank — the HXD-G12M20-G runs a 12 gauge shank, the heavier of the two gauges in the hex head drill point group.
        • 20mm length — the HXD-G12M20-G measures 20mm under the head, the shorter of the two 12 gauge lengths in the group.
        • Mechanically galvanised steel — the screw is mechanically galvanised steel, one of the three materials used across the Matelec fastener range.
        • 200-piece jar — supplied in a 200-piece jar.
        • 16 jars per carton — the carton quantity is 16 jars.
        • No sealing washer — the HXD-G12M20-G carries no seal, so it is not one of the sealed roofing screws in the range.

        Where to use

        • Sheet metal fixing — the drill point suits sheet metal work where drilling and fixing happen in one pass.
        • Light steel sections — the 12 gauge shank handles light steel sections and the brackets fixed to them.
        • Bracket and enclosure mounting — the 20mm length suits mounting brackets, enclosures and accessories onto thin material.

        The HXD-G12M20-G carries no sealing washer, so roof and cladding fixings call for a sealed screw instead. The screw is mechanically galvanised steel, not 316 stainless, so it is not the fixing to specify where a stainless grade is required. The point is cut for metal rather than for timber framing.

        (HXD-G12M20-G)

        No. The drill point tip allows the screw to drill and fasten in one step in many metal and sheet material applications.

        They use a hex head that suits a 5/16" hex socket driver. This provides strong drive engagement during installation.

        Yes. They feature a C3 corrosion-resistant coating, suitable for general outdoor and construction environments.

        They are commonly used with sheet metal, light steel sections, brackets and electrical accessories.

        Each jar contains 200 screws, making it convenient for site work or workshop use.

        Yes. Sparky Direct stocks the Matelec HXD-G12M20-G with fast dispatch and fast delivery Australia wide.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU HXD-G12M20-G
        Model # HXD-G12M20/G
        Barcode # 9338999009331
        Package Weight 0.773kg
        View Datasheet
        TYPE VALUE
        Type Screws
        Brand Matelec
        Screw Gauge 12
        Screw Type Drill Point
        Screws (Qty) 200
        Screw Size Length (mm) 20
        Hex Head 5/16"
