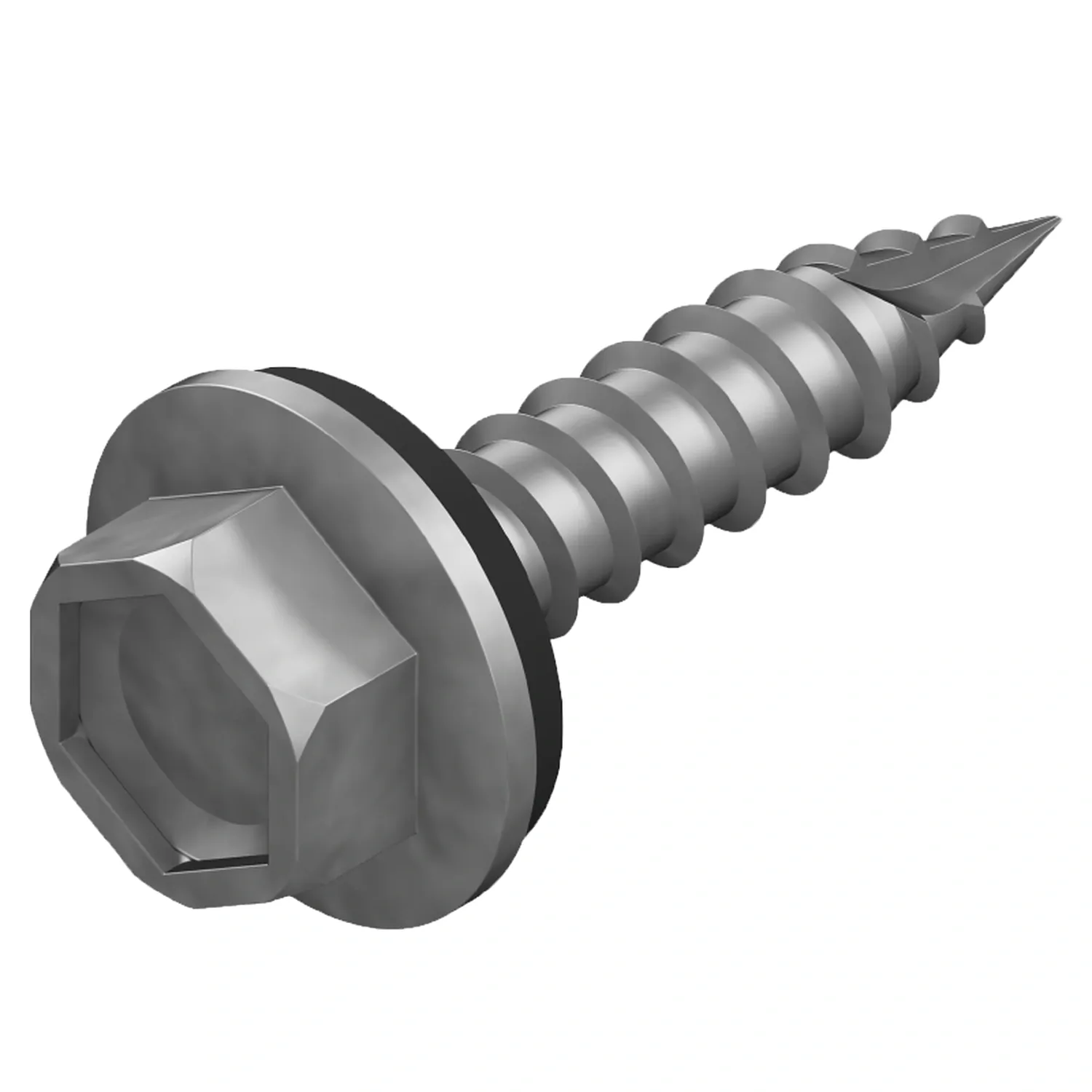

        Matelec | Hex Head Type 17 Roofing Screw 12G x 25mm | Seal Fitted

        The Matelec HXN-G12M25-GS is a hex head Type 17 roofing screw, 12 gauge by 25mm, fitted with a seal and supplied 200 to a jar. The head takes a 5/16 inch hex socket driver. The HXN-G12M25-GS is made from mechanically galvanised steel, and the Type 17 point drives into timber without a pilot hole.

        A Type 17 point carries a cutaway notch at the tip that clears the material as the screw enters, which is what lets it start in timber and pull down fast. The fitted seal then compresses against the sheet as the screw seats, closing the hole the point made. Together that is a roof fixing into timber in one pass.

        The HXN-G12M25-GS drives with a 5/16 inch socket, the same drive used across the Matelec hex head range. A hex socket grips the outside faces of the head, so the driver does not cam out of a recess the way a bladed or cross bit can. The finish is mechanically galvanised steel, a zinc coating applied mechanically rather than by electroplating or hot dipping.

        Features

        • Type 17 point — the notched point clears material as it enters, so the screw starts and pulls down in timber without a pilot hole.
        • Seal fitted — the screw carries a seal under the hex head, which compresses as the screw seats and closes the hole.
        • 5/16 inch hex head — driven with a 5/16 inch hex socket driver or nut driver rather than a bladed or square bit.
        • 12 gauge shank — gauge is the shank size on a screw, and a higher gauge number means a thicker shank.
        • 25mm length — the HXN-G12M25-GS measures 25mm under the head, which is the depth available to pass through and engage behind.
        • Mechanically galvanised steel — the screw is mechanically galvanised steel, not 316 stainless.
        • 200 piece jar — supplied in a 200 piece jar, and the jar is the sell unit.
        • Not a drill point — the Type 17 point cuts into timber, so it does not drill through steel the way a drill point does.

        Where to use

        • Roof sheet to timber — the Type 17 point and the seal together suit fixing roof sheet down onto timber battens and rafters.
        • Wall cladding on timber — the same combination suits cladding fixed to a timber frame, where the hole has to be closed.
        • Timber framing fixings — the 12 gauge shank and 25mm length suit brackets and accessories fixed to timber.

        The HXN-G12M25-GS is not a drill point screw. Steel purlins and steel battens call for a drill point instead. The screw is mechanically galvanised steel and is not 316 stainless, so it is not the fixing where a stainless grade is required.

        (HXN-G12M25-GS)

        They are commonly used to fix metal roofing sheets or cladding into timber supports.

        In many timber applications, no pre-drilling is needed. The Type 17 needle point helps the screw cut into timber quickly.

        They use a hex head that suits a 5/16" hex socket driver for secure installation.

        The washer helps create a weather-resistant seal around the fixing point, helping protect against water entry.

        Yes. They have a C3 corrosion-resistant coating suitable for general outdoor environments.

        Yes. Sparky Direct stocks the Matelec HXN-G12M25-GS with fast dispatch and fast delivery Australia wide.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU HXN-G12M25-GS
        Model # HXN-G12M25/GS
        Barcode # 9338999009362
        Package Weight 1.169kg
        View Datasheet
        TYPE VALUE
        Type Screws
        Brand Matelec
        Screw Gauge 12
        Screw Type Needle Point
        Screws (Qty) 200
        Screw Size Length (mm) 25
        Washer Yes
        Hex Head 5/16"
