        Cabac XLPKIT | 22 Piece Heat Shrink Kit 1.5mm to 125mm diameter | Assorted Colours
        $27.50 $25.00 ex. GST
        Video

        Learn more by watching our Cabac XLPKIT | 22 Piece Heat Shrink Kit 1.5mm to 125mm diameter | Assorted Colours video.

        Description

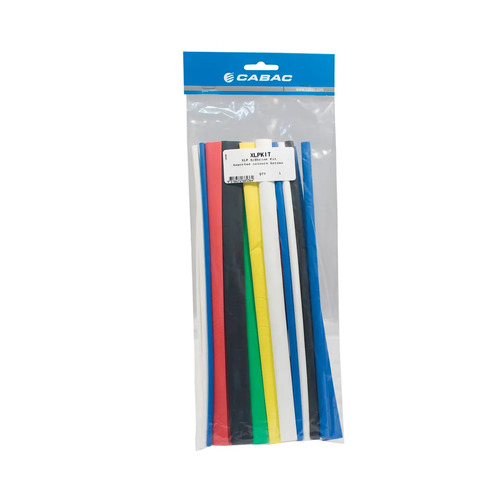

        Cabac XLPKIT | 22 Piece Heat Shrink Kit 1.5mm to 125mm diameter | Assorted Colours

        Description:

        The XLP Heatshrink Kit contains various colours and sizes of XLP Thin Wall Heatshrink.

        XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75°C to 135°C for normal operating conditions and 200°C for short intervals. Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heatgun or a heat tunnel (Part No. HG2000 or HG2000C).

        XLP Heatshrink Thin Wall Features:

        • Highly flexible
        • Flame retardant
        • Abrasion and impact resistant
        • For use in all electrical and electronic applications
        • In-house cutting facility available for cut sleeves
        • Full range 1.5mm to 125mm diameter with 2:1 shrink
        • Available in most colours on reels or 4ft (1.2m) lengths
        • Full range is UV stabilised

        XLP tubing has numerous uses in the electrical and associated industries, including insulation, colour coding and mechanical protection.

        Technical Data:

        • Compliant Standards: UL224 VW1 File No. E197423
        • Conformant Standards: MIL-1-23053/5; JIS
        • Material: Chemically, cross-linked, thermally stabilised flame retardant polyolefin
        • Continuous operating temp: -75°C to +135°C
        • Shrinkage temp: > 100°C
        • Longitudinal shrinkage: < 5%
        • Tensile strength: 16 MPa
        • Breakdown voltage: 25 kV/mm wall thickness
        • Volume resistivity: 1.0 x 1014 ohm cm
        • Elongation at break point: 400%
        • Water absorption: 0.15% max
        • Flammability: Passed ASTM-D-2671
        • UV stability: All tubing is stable
        • Voltage rating: 600V

        (XLPKIT)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU XLPKIT
        Barcode # 9318674685364
        Shipping Weight 0.0820kg
        Shipping Width 0.031m
        Shipping Height 0.002m
        Shipping Length 0.015m
        TYPE VALUE
        Type Heat Shrink
        Brand Cabac
        Colour Assortment
        Voltage (V) 600
        Length (mtrs) 1.2
        Full Range 1.5mm to 125mm
        Shrink 2:1
