        Learn more by watching our Major Tech MTC40 | Tone & Probe Tester video.

        Description

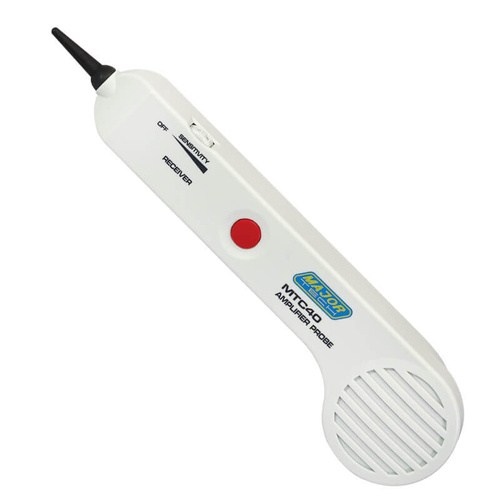

        Major Tech MTC40 | Tone & Probe Tester

        Description:

        The MTC40 Tone and Probe generator traces cables using a tone generator connected on one side and at the other end the probe. This tests even when cables are in a bundle. It is easily used to verify cable continuity, pair condition, line polarity and voltage in networking cabling systems for CAT5, coax and modular telephone lines.

        Features:

        • RJ11 modular connectors
        • Built-in speaker on probe with sensitivity control
        • Traces & identifies wires / cables in a bundle or group
        • Insulated inductive probe tip prevents shorting conductors
        • Tests include wire trace / continuity test clear / busy / ringing line test and tip/ring identification

        (MTC40)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Features

        Specifications

        Function Range
        Tone & Probe Tester Cable & Wire, RJ11
        Tracing Telephone, cable and wire
        Continuity Yes
        Enclosure Moulded casing
        Batteries  2 x 9V
        Weight 270g
        Dimensions 231 x 56 x 27mm Probe
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTC40
        Barcode # 6008229012877
        Package Weight 0.473kg
        Package Width 0.080m
        Package Height 0.300m
        Package Length 0.130m
        TYPE VALUE
        Type Tone and Probe
        Brand Major Tech
        Dimensions 231 x 56 x 27mm (Probe)
        Batteries 2 x 9V
