        Learn more by watching our Major Tech MT902 | VDV Wire Tester video.

        Description

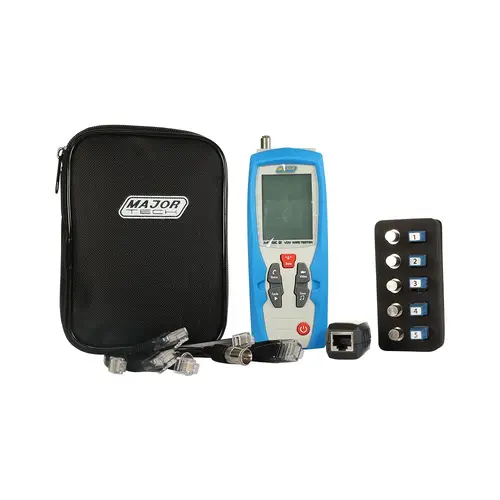

        Major Tech MT902 | VDV Wire Tester

        Description:

        The Major Tech MT902 VDV Wire Tester is a vital tool for electricians. It provides detailed analysis and troubleshooting for voice, data, and video cables. It supports RJ11, RJ12, RJ45, and coaxial connections. It quickly identifies issues such as opens, shorts, and crossed pairs with clear PASS or FAIL indications on a large LCD display.

        The tester includes five RJ45 and five coax remote identifiers for efficient cable mapping and troubleshooting. Safety features like voltage warnings and an automatic power-off function enhance user safety and device longevity. Housed in a durable, double-moulded case, the MT902 combines functionality and reliability for rigorous daily use.

        Features:

        • Cable Types: Tests STP, UTP, and coaxial cables.
        • Fault Detection: Detects shorts, opens, reversed polarity, crossed and split pairs.
        • Enhanced Identification: Comes with 5 data RJ45 and 5 coax F-connector remote identifiers.
        • Tone Generation: Three selectable tone patterns for advanced cable tracing.
        • Safety and Convenience: Flashing voltage warning, low battery indicator, and auto power-off.
        • Display: Large LCD backlit display for clear readability in various lighting conditions.
        • Durability: Rugged double-molded casing for long-term reliability.

        FAQ:

        Q: What types of cables can the MT902 test?
        A: It tests RJ11, RJ12, RJ45, and coaxial cables.

        Q: Does the MT902 provide diagnostics for cable status?
        A: Yes, it indicates wiring status with PASS or FAIL icons and can detail specific wiring faults.

        Q: Can the MT902 help in locating hidden cables?
        A: Yes, its built-in tone generator helps locate cables, especially when paired with an optional amplifier probe.

        (MT902)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Features
        Specification Details
        Minimum Cable Length for Split Pairs Detection 0.5 Meters
        Maximum Coax Cable Length 305m
        Maximum Coax Cable Resistance 100Ω maximum DC
        Maximum Voltage between any two pins without damage 60V DC or 55V AC
        Cable Types Shielded or Unshielded Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 4, Cat 3, Coax
        Voice Tests RJ-11/12 6-wire cables
        Data Tests RJ-45 8-wire cables
        RJ-45 Remote 5 Remote mapping locations
        Video Tests F-connector coax cables
        Tone Use of Tone generator to trace phone lines
        Digital Display 2.4-inch TFT colour screen
        Back Light Yes
        Enclosure Moulded casing
        Low Battery Indication Yes
        Batteries 2 x AA
        Operating Temperature 0°C to +50°C
        Operating Humidity 10% to 90% RH
        Size 152 x 61 x 34mm
        Weight 230g
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT902
        Barcode # 6008229034411
        Package Weight 0.490kg
        Package Width 0.125m
        Package Height 0.060m
        Package Length 0.185m
        TYPE VALUE
        Type Wire Tester
        Brand Major Tech
        Batteries 2 x AA
        Cable Types Shielded or Unshielded Cat 7, Cat 7a, cat 6a, Cat 6, Cat 5e, Cat 5, Cat 4, Cat 3, Coax
        Minimum for Split Pair Detection 0.5m
        Maximum Coax Cable Length 305m
        Voice Tests RJ-11/12 6-wire cables
        Data Tests RJ-45 8-wire cables
        Video Tests F-connector coax cables
