        Learn more by watching our Major Tech MT195 | Cable Locator video.

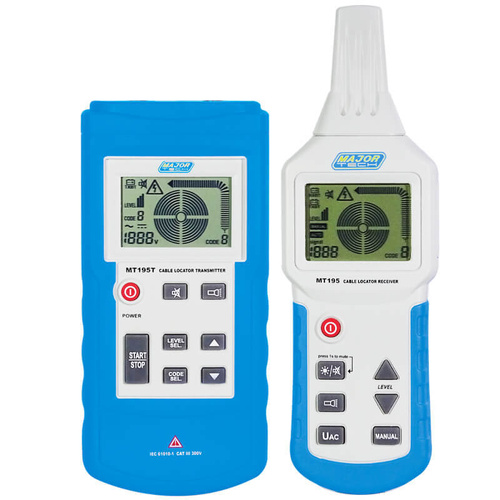

        Major Tech MT195 | Cable Locator

        Description:

        The MT195 Cable Locator is the ideal tool to detect electrical power cables, communication cables, metal pipes and much more during construction, maintenance, or renovation. Pinpoint pipes and cables in walls or underground with precision by identifying the corresponding signal number sent by the transmitter. The transmitter and receiver with their advanced digital circuit technologies ensures a highly stable and reliable performance. The transmitter not only sends signals but can be used as an AC/DC voltmeter displaying the voltage on the tested line. When testing on electrical circuits, the receiver can quickly identity circuit breakers in the distribution board of the circuit the transmitter is connected to or visa versa. The receiver displays the value of the signal measured and it can be used to check short circuits or breaks on existing installations, ideal for underfloor heating systems. The MT195 set is lightweight and is supplied with a complete set of accessories for direct measurement.

        Features:

        • CAT III 300V and CAT II 600V
        • Detects cables, electrical wire, water/gas supply pipelines concealed in walls and ground
        • Detects interruptions and short circuits in cables and concealed electrical wire
        • Tracing sockets and distribution sockets having accidentally been covered by plastering
        • The transmitter measures voltage from 12V to 400V AC/DC
        • The screen of transmitter displays preset transmitting power, transmitted codes and voltage
        • Transmitter has self-inspection displaying status on LCD
        • Both transmitter and receiver have flashlight function
        • Output signal 125kHz
        • Detects interruptions and short circuits in floor heating
        • The LCD of receiver displays preset transmitting power, transmitted codes and voltage
        • The sensitivity of the receiver can be adjusted manually or automatically
        • The receiver can sweep frequency automatically
        • Identifies fuses and assigned current circuits
        • Mute mode can be set for both the transmitter and receiver
        • Auto Power Off
        • Additional transmitters are available to extend or verify several functions

        (MT195)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Specifications

        Function Range Accuracy
        Transmitter functions
        Output Signal 125kHz
        External Voltage Range DC 12-400V ±2.0%
        AC12-400V (50/60Hz) ±2.5%
        Display LCD, with function display and column chart
        External Voltage Dielectric Strength Max. 400V AC/DC
        Batteries 9V
        Weight 420g
        Dimensions 190 x 89 x 43mm
        Receiver functions
        Depth of Tracking Depth depends on the material specific applications
        Cable Locating Mode Single Pole About 0 – 2meters
        Cable Locating Mode Dual Pole About 0 – 0.5meters
        Cable Locating Single Loop Line Up to 2.5meters
        Display LCD, with function display and column chart
        Batteries 6 x AAA
        Weight 350g
        Dimensions 242 x 78 x 39mm
        Safety Specs CAT III 300V

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT195
        Barcode # 6008229018053
        Package Weight 1.476kg
        Package Width 0.090m
        Package Height 0.280m
        Package Length 0.200m
        View Datasheet
        View Manual
        TYPE VALUE
        Type Cable Meters
        Brand Major Tech
        Display LCD
        Receiver Dimensions 242 x 78 x 39mm
        Transmitter Dimension 190 x 89 x 43mm
        Transmitter Batteries 9V
        Receiver Batteries 6 x AAA
