Robus | SunSync Sunset Switch Photocell 16A 1000W LED | IP66 IK10

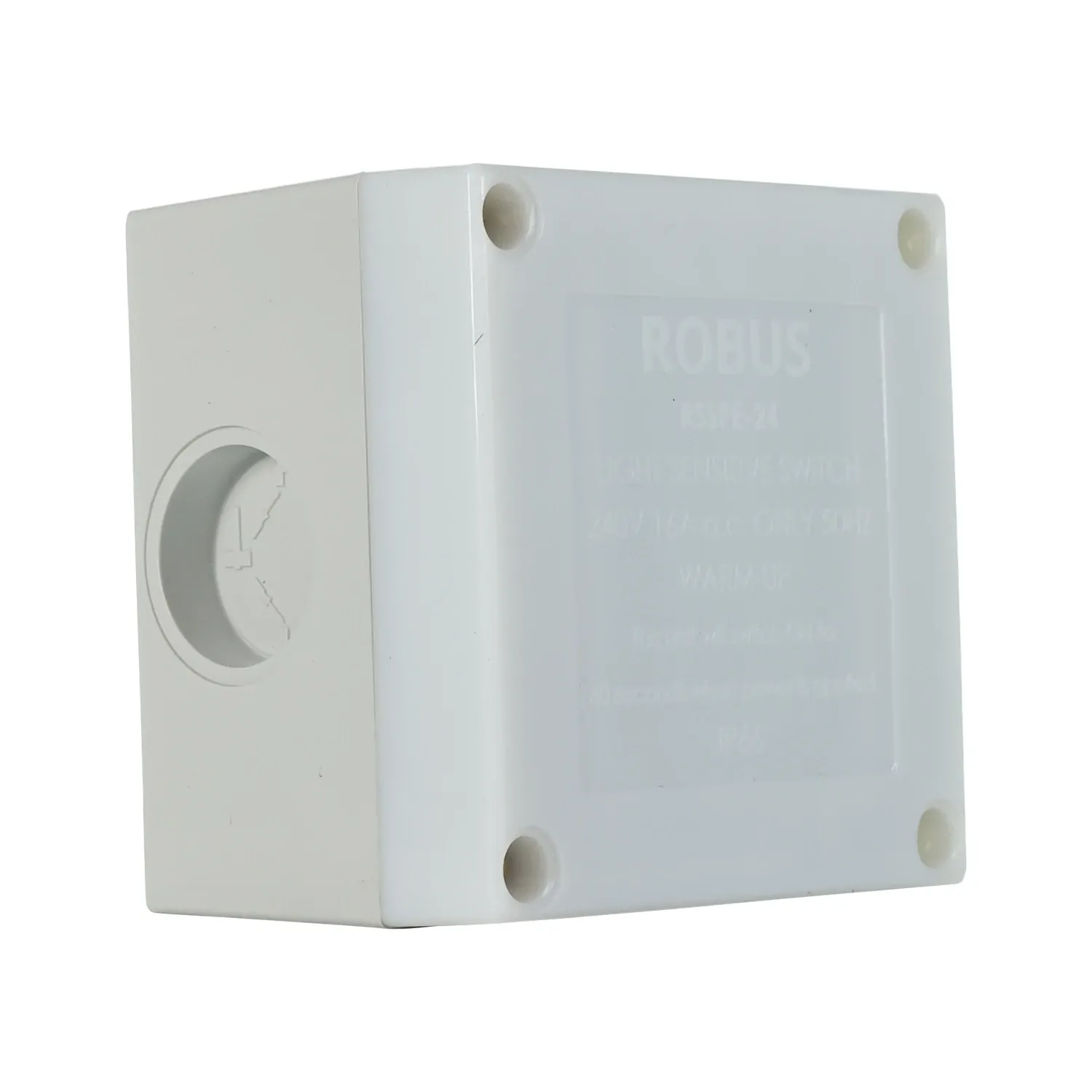

The Robus RSSPE-24 is a stand-alone sunset switch photocell rated 16A at 220-240V, which switches outdoor lighting automatically on ambient light level. The RSSPE-24 handles a maximum LED load of 1000W, with adjustable lux and time settings selected behind the front cover. It is rated IP66 and IK10 in a UV-stabilised polycarbonate enclosure, and is Class II double insulated.
Outdoor lighting on a timeclock drifts against seasonal sunset variation. A schedule programmed in January is operating through daylight hours by June, and manual switching is routinely forgotten. The RSSPE-24 responds to ambient illumination rather than a clock. Lux switching levels from 3 to 500 lux and a time delay of 1 to 9 hours or dusk to dawn calibrate the response to the installation.
A photocell positioned above the controlled fitting eliminates the biannual reprogramming a timeclock demands. Large terminals accepting 1.5mm2 loop-in and loop-out terminate the RSSPE-24 into an existing circuit without an additional junction box. Robus lists the unit as retrofittable with bases from most leading brands, so a replacement reuses the fixings already drilled. Class II construction requires only active, loop, and neutral terminations.
Features
- 16A load current — the RSSPE-24 switches up to 16A at 220-240V 50Hz.
- 1000W maximum LED load — Robus rates the switch at 1000W of LED lighting, which covers a bank of floodlights on one circuit.
- 600W inductive, 3200W resistive — the rating drops to 600W on inductive loads and rises to 3200W on resistive loads.
- Seven lux settings — switching levels of 3, 10, 30, 100, 200, 300, and 500 lux are selected on the knob behind the front cover.
- Ten time settings — 1 to 9 hours in one hour steps, plus a dusk to dawn position that holds the lights on until daylight returns.
- IP66 enclosure — the UV-stabilised polycarbonate housing is dust-tight and rated against powerful water jets.
- IK10 impact rating — the enclosure carries the top class on the IEC 62262 impact scale.
- Class II double insulated — the RSSPE-24 terminates active, loop, and neutral, with no earth at the unit.
- 0.5W standby — the photocell itself draws 0.5 watts in standby.
- Loop-in loop-out terminals — four 2 x 1.5mm2 screw terminals take loop-in and loop-out wiring without a separate junction box.
- 25mm conduit entries — knockout entries on each side and the back, with a sleeve joint that accepts DN15 (20mm) PVC conduit.
- -20 to +40 degrees C — rated for ambient temperatures between -20 and +40 degrees Celsius, at working humidity below 93% RH.
Where to use
- Floodlight banks on commercial buildings — the 1000W LED rating covers multiple floodlights switched from one circuit.
- Carpark and yard lighting — dusk to dawn switching keeps a yard illuminated through trading hours without a timeclock.
- Pathway and garden lighting — the RSSPE-24 switches domestic path and garden runs on falling light.
- Security lighting — a low setting of 3 or 10 lux holds the fittings off until genuine darkness rather than dusk.
- Timeclock replacements — the RSSPE-24 removes the seasonal reprogramming a fixed time switch demands twice a year.
- Exposed and coastal walls — the IP66 UV-stabilised enclosure suits walls taking direct sun, rain, and salt-laden air.
- Public and vandal-prone frontages — the IK10 rating suits schools, carparks, and entries where the unit sits within reach.
The RSSPE-24 is rated for ambient temperatures between -20 and +40 degrees Celsius and working humidity below 93% RH. The load rating varies by load type: 1000W LED, 600W inductive, and 3200W resistive. Robus states the controlled fittings must be positioned so their stray light cannot fall on the sensor, and the unit must sit clear of other light sources and swaying obstructions, or it will switch unintentionally.
