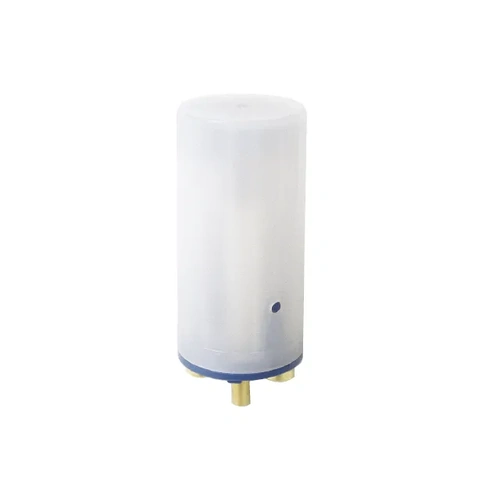

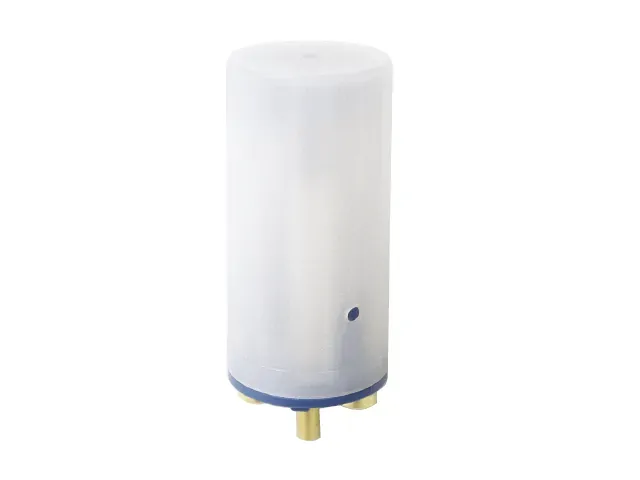

        Eye Lighting PBM2403 | 240 V Compact Daylight Switch | D2 Base

        The Eye Lighting PBM2403 is a compact, high-quality CdS daylight switch for automatic dusk-to-dawn lighting control. Operating on 240 V 50 Hz, it switches lighting on at 31.5–125 lux and off at ~400 lux, helping reduce energy use by running lights only when needed.

        Built with a durable melamine phenolic resin body and a D2 base, it measures just Ø26 mm × 63 mm. With a 3 A rating, it suits low-load lighting in residential, commercial, or industrial settings. Install in wall-mounted, bracketed, or pole-top fittings—indoors or in protected outdoor locations.

        PBM2403 Features

        • CdS daylight sensor: Reliable dusk-to-dawn operation.
        • Lux thresholds: Turns on at 31.5–125 lux; turns off at ~400 lux.
        • 240 V AC 50 Hz: Compatible with Australian mains.
        • D2 base: 26 mm diameter for standard D2 socket installations.
        • Compact & durable: Melamine phenolic resin housing for long-term reliability.
        • 3 A rating: Ideal for low-load lighting applications.

        (PBM2403)

        Eye Lighting PBM2403 FAQ

        The PBM2403 has a 3 A rating, designed for low-load lighting applications.

        It turns lights on at dusk and off at dawn automatically, so you don’t need to use a timer.

        It suits indoor use or protected outdoor areas, such as wall-mounted, bracketed, or pole-top fittings.

        For many people, yes. Unlike a timer, it adjusts automatically with the seasons and changing daylight hours.

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Eye Lighting
        SKU PBM2403
        Model # PBM2403
        Package Weight 0.051kg
        Package Width 0.070m
        Package Height 0.035m
        Package Length 0.055m
        TYPE VALUE
        Type Sensor
        Brand Eye Lighting
        Rated Current (A) 3
        Voltage (V) 240
        Material Melamin Phenol Resin
        Base D2
