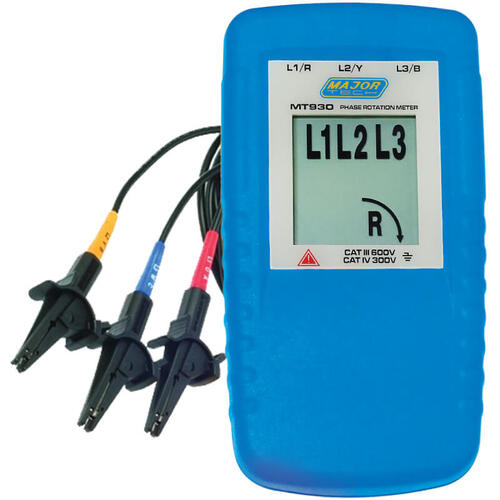

        Major Tech MT930 | Phase Rotation Meter

        Description:

        The MT930 is a compact handheld Phase Rotation indicator that has a large LCD to indicate the phase presence and rotation. Once connected to a 3 Phase power system, the meter indicates the phase sequence by displaying its corresponding phase symbol on the LCD, as well as the rotation by arrows indicating a clockwise or anti-clockwise direction. The MT930 operates from 40VAC to 690VAC.

        Features:

        • CAT IV 300V and CAT III 600V
        • Large LCD Display
        • Phase rotation indication
        • 3-Phase Indication
        • Checks phase sequence and open phase simultaneously
        • Double injection rubber housing
        • Small lightweight and portable
        • Can check a wide range of 3-phase power source from 40V to 690V AC
        • Large size crocodile clips

        (MT930)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Features

        Specifications

        Function Range
        AC Voltage 40 – 690V
        Clamp Diameter Range 20mm
        Detection Method LCD Display
        Measuring Frequency 15 – 400Hz
        Phase Rotation Clock or Anti clock
        Visual Indication LCD Indication
        Colours Red, Yellow Blue
        Casing Over Moulded case
        Weight 130g
        Dimensions 130 x 69 x 32mm
        Safety Specs IEC61010-1 CAT III 600V
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT930
        Barcode # 6008229008115
        Package Weight 0.507kg
        Package Width 0.070m
        Package Height 0.220m
        Package Length 0.140m
        TYPE VALUE
        Type Phase Rotation Meter
        Brand Major Tech
        Dimensions 130 x 69 x 32mm
