    Video

    Learn more by watching our Major Tech MTC35 | Multi-Purpose Wire Tracker | 1000m video.

    Description

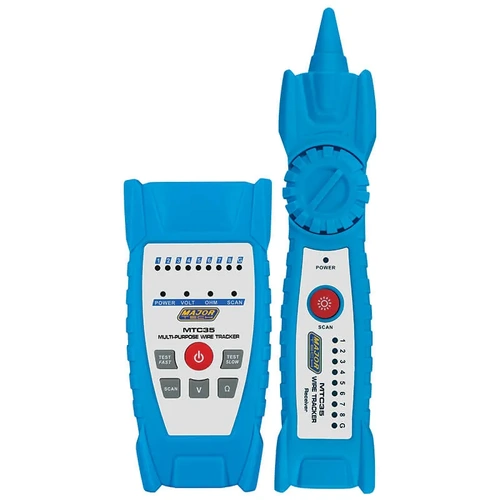

    Major Tech MTC35 | Multi-Purpose Wire Tracker | 1000m

    The Major Tech MTC35 is a multi-purpose wire tracker built for LAN and telephone installers, combining a tone and probe generator with a LAN cable tester. It efficiently traces and identifies cables up to 1000m, ensuring continuity, pair conditions, line polarity, and voltage checks for network cabling systems.

    With RJ45 and RJ11 modular connectors, the MTC35 can diagnose LAN cable conditions and detect faults in Cat 5, coaxial, and modular cables. The built-in speaker with adjustable sensitivity ensures clear signal tracing, and included earphones help in noisy environments. An insulated inductive probe tip prevents accidental shorting, while the integrated flashlight improves visibility in dimly lit areas.

    Major Tech MTC35 Features:

    • 1000m Cable Tracing – Tracks and identifies wires over long distances.
    • RJ45 & RJ11 Support – Tests LAN, telephone, and modular cables.
    • Tone & Probe Generator – Detects and traces cables using an audible signal.
    • LAN Cable Mapping – Diagnoses faults and verifies pin configurations.
    • Built-in Speaker & Earphones – Adjustable sensitivity for precise signal detection.
    • Flashlight & LED Indicators – Improves visibility and provides status updates in low-light conditions.

    MTC35 FAQ:

    Q: What types of cables can this wire tracker test?
    A: It supports RJ45, RJ11, BN, Cat 5, coaxial, and modular cables.

    Q: What is the maximum distance for wire tracing?
    A: The MTC35 can trace cables up to 1000m.

    Q: Does it include a flashlight for use in low-light conditions?
    A: Yes, it has a built-in flashlight for improved visibility.

    (MTC35)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Return to Sparky Direct

    All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

    How to Lodge a Warranty Claim

    To initiate a warranty claim:

    1. Return to Sparky Direct
      Ship the meter back to Sparky Direct along with:

      • A copy of your proof of purchase
      • A brief description of the issue
      • Your contact details

      Please ensure the unit is securely packaged to prevent damage in transit.

    2. Forwarded for Assessment
      Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

    Assessment Process

    Major Tech’s service lab will assess the returned unit to determine:

    • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
    • If the issue is the result of user error or no fault is found.

    Outcomes

    • If approved under warranty: The product will be repaired or replaced at no cost to you.
    • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

    Important Notes

    As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

    Please allow up to 7-14 working days for the return of your product.

    Features
    Function Range
    Operating Temperature 0°C to 50°C
    Operating Humidity 10% to 90%, non-condensing
    Maximum Voltage 60V DC or 55V AC (between 2 pins)
    Battery Type 2 x AAA 1.5V
    Cable Types Supported Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3
    Maximum Cable Length 305 meters
    Minimum Cable Length 0.5 meters for split pair detection
    Maximum Cable Resistance Max. 100 ohms DC
    LED Status Indicators Twisted pairs (RJ45)/Coax, Continuity, X (Cross-overs), S (Shield status), Split, Reversal, Miswire, Short, and Low Battery
    Detachable Remote RJ45
    Dimensions 127 × 55 × 28 mm
    Weight 126g
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Major Tech
    SKU MTC35
    Barcode # 6008229041334
    Package Weight 0.474kg
    Package Width 0.137m
    Package Height 0.060m
    Package Length 0.227m
    TYPE VALUE
    Type Wire Tracker
    Brand Major Tech
    Battery 3 x AAA, 1 x 9V
    Transmitter Range ≤1000m
    LAN Testing RJ45, RJ11 and BN
