Clipsal by Schneider Electric | Iconic Bell Press Push Button Switch Mechanism 10A 230/240V | Vivid White

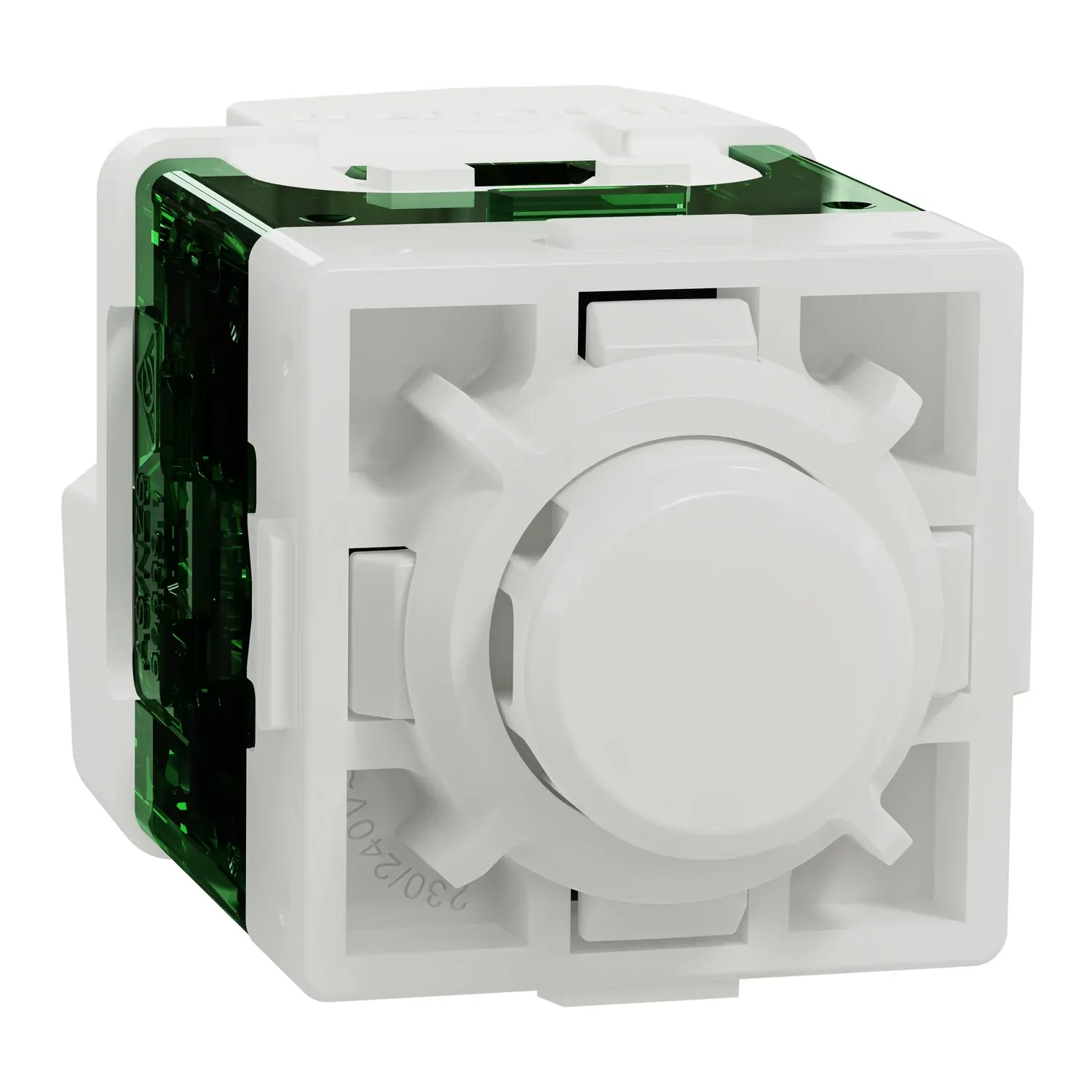

The Clipsal 40PBBP-VW is a momentary bell press push button switch mechanism rated 10 A at 230/240 V AC, supplied in Vivid White. The circuit is made only while the button is held, and breaks as soon as the button is released. The 40PBBP-VW has a 1/2-way switch function and is listed to AS/NZS 3133.
The 40PBBP-VW is a single push button mechanism, 22 mm square across the face with a matt actuator. It springs back on release, which is what separates a bell press from a standard light switch. The body runs 42 mm deep and mounts embedded in the wall, so the face sits flush once seated. It is rated to run at ambient temperatures from -3 to 50 degrees C.
Termination is by screw terminals, so each conductor lands under a screw at the back of the body. Fixing is by clipping locks, which hold the mechanism once it is seated. Compliance is settled at the point of supply, with the 40PBBP-VW listed to AS/NZS 3133.
Features
- Momentary bell press action — the circuit is made only while the button is held, and breaks the moment the 40PBBP-VW is released.
- Push button actuation — the mechanism is pressed on the face, with one button across the whole unit.
- 10 A rated current — the mechanism carries up to 10 A, which sets the ceiling for the load on the switched circuit.
- 230/240 V AC supply — rated for standard Australian mains voltage, with the mechanism switching an AC supply at 50 Hz.
- 1/2-way switch function — wires as a single press point or as one end of a two-way arrangement, using the same mechanism.
- Screw terminal connections — each conductor lands under a screw at the back of the mechanism.
- Clipping lock fixing — the 40PBBP-VW is secured by clipping locks, which hold the mechanism once it is pushed into position.
- 37 mm embedding depth — the mechanism sits 37 mm into the wall, so the position needs that much clear depth behind the face.
- Vivid White colour tint — supplied in the Clipsal Vivid White tint, carried in the product code suffix VW.
- IP3X rated — protection covers solid objects above 2.5 mm only, and the 40PBBP-VW carries no rating against water ingress.
- Operating range to 50 degrees C — rated for ambient air temperature between -3 and 50 degrees C in service.
Where to use
- Doorbell and chime circuits — the 40PBBP-VW is a bell press, giving the press point on a bell or chime circuit.
- Momentary signal inputs — the circuit closes only for the length of the press, which suits equipment that takes a momentary trigger.
- Circuits loaded to 10 A — the switched load has to sit at or under 10 A for the mechanism to be within rating.
- Flush wall positions — the 40PBBP-VW mounts embedded, sitting within the wall rather than proud of the surface.
- Positions with 37 mm clearance — the wall cavity behind the face needs at least 37 mm of free depth for the mechanism.
The 40PBBP-VW is rated IP3X, which covers solid objects only and gives no rating against water. It is not rated for outdoor positions, including an external door surround, or for damp areas such as bathrooms and laundries. Loads above 10 A sit outside the rating, and the momentary action rules out use as an on and off light switch.
