        Clipsal Iconic 40E1USBCM-VW | Single USB C 3.1A | 25W Fast Charging Mechanism | Vivid White
        $66.21 $60.19 ex. GST
        Video

        Learn more by watching our Clipsal Iconic 40E1USBCM-VW | Single USB C 3.1A | 25W Fast Charging Mechanism | Vivid White video.

        Additional related video.

        Description

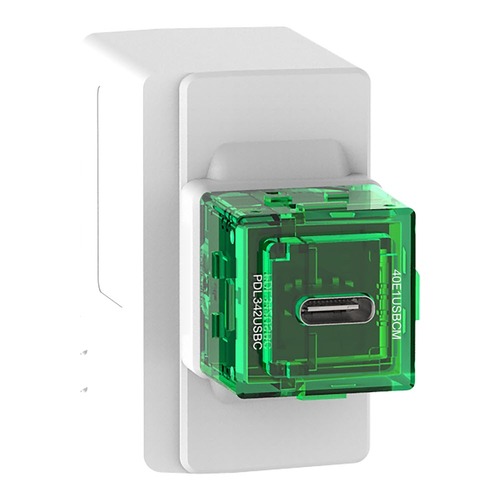

        Clipsal Iconic 40E1USBCM-VW | Single USB C 3.1A |  25W Fast Charging Mechanism | Vivid White

        The Clipsal Iconic USB-C Charging Mechanism makes it simple to fast charge your device.
        Clipsal Iconic is a modern electrical accessories range, based on a slim, sleek, clean design that is easy to customise and blends in perfectly with any environment.

        Features

        • USB Type C
        • 3.1A
        • 25w fast charging
        • USB-C charging mechanism has been designed to eliminate bulky chargers by providing a universal charging solution whilst freeing up socket outlets.
        • Providing a dedicated independent port that optimises charging whilst monitoring the temperature of the device to ensure internal components don’t overheat.
        • This patented technology has the added advantage that enables the mechanism to be installed in harsh temperature environments.
        • The charging mechanism also includes a patented rotating head so that the correct orientation of the outlets can be provided in both horizontal or vertical plates.
        • The charger fits perfectly into the Iconic single, double or quad power outlets and can be accommodated in a deep wall box or standard mounting bracket
        • These energy-efficient USB Charger Mechs are compatible with both Apple® and Android™ devices and use less than 0.07W of power while in Standby mode.

        (40E1USBCM-VW)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Features

        Features:

        • Input Voltage: 220-240V ac 50hz
        • Output Voltage: 5V dc
        • Output Current: Max 2.1A per port (Max 3.1A for the module)
        • Standby Power <70mW Efficiency: >78%
        • Charging: BC1.2, cable compensation & Smartcharge
        • Operating Temperature: 0°-45° C Ambient
        • Operating Humidity: 5% ~ 90%
        • Relative Humidity, Non-Condensing Storage Temperature: 0°-60° C
        • Storage Humidity: 5% ~ 90% Relative Humidity, Non-Condensing
        • USB Connection type: 2 x USB A-Type
        • Input Connections 120mm flyleads, 22 AWG (0.64mm dia, 0.33mm²) terminal block supplied
        • IP Rating: IP20 Indoor Use Only
        • Rotating head angle: 180° Lifetime insertion of USB 10,000 cycles
        • Protection: Short circuit, Over Current and Over Temperature (self regulates output current)
        • Depth from rear of plate: 55mm (suits deep wall boxes)
        • Plate compatibility: Suitable for 40 Mech compatible wall plates (e.g. Iconic).
        • Not suitable for 30 series apertures.
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 40E1USBCM-VW
        Barcode # 9311554816056
        Shipping Weight 0.1000kg
        Shipping Width 0.080m
        Shipping Height 0.050m
        Shipping Length 0.080m
        Shipping Cubic 0.000320000m3
        TYPE VALUE
        Type Switches
        Brand Clipsal by Schneider Electric
        Range Clipsal Iconic
        Colour Vivid White
        Height (mm) 27
        Width (mm) 56
        Additional Feature C-USB Outlet
        Embedding Depth (mm) 55
        Integrated connection type 1 USB type C 5V DC, maximum load current: 3 A | 1 USB type C 9V, 12V, 15V
        Power consumption in (W) 25
        Voltage (V) 220-240V
