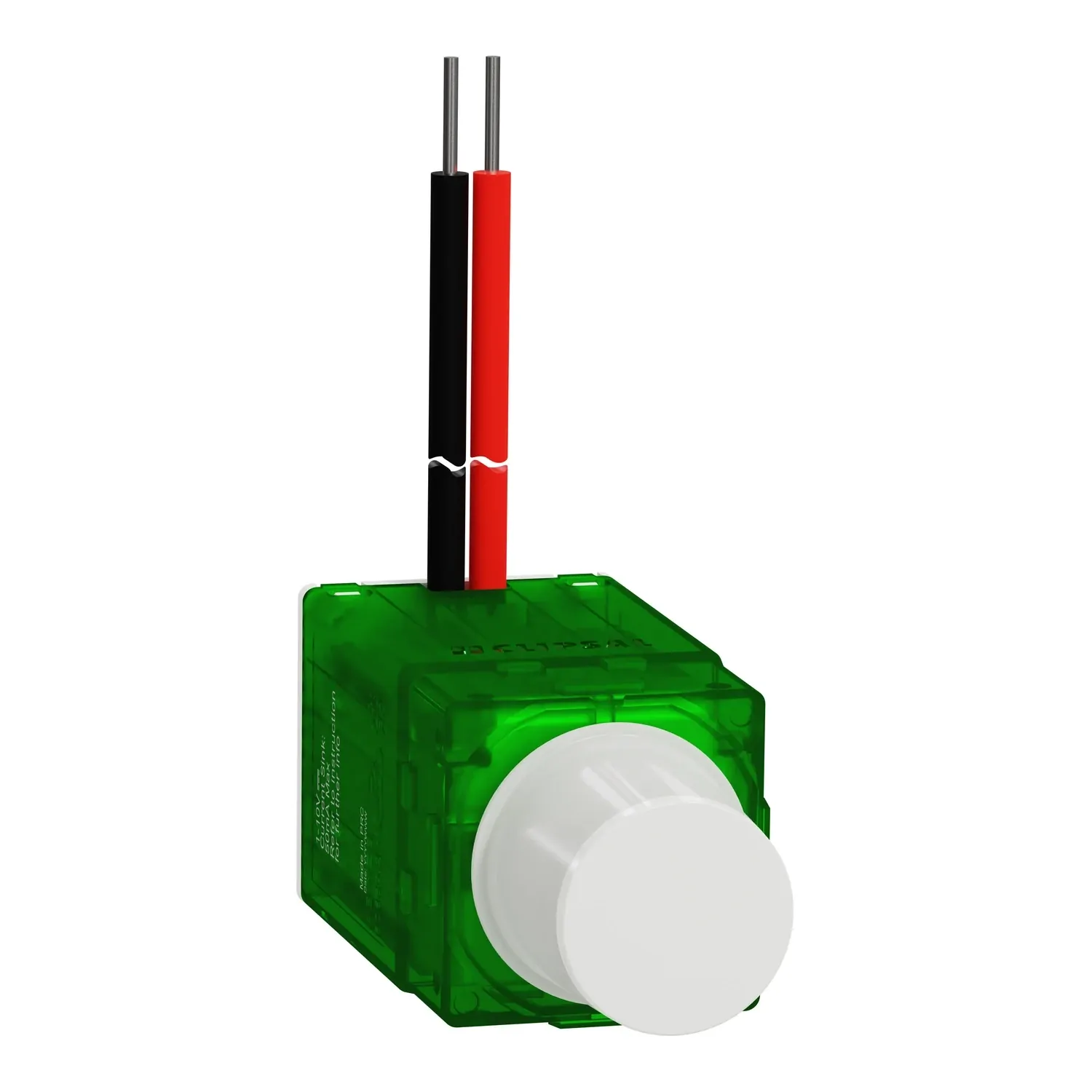

        Clipsal | Iconic Rotary Push Dimmer Mechanism 1-10V DC | Vivid White

        The Clipsal 40ER110DM-VW is a rotary push dimmer mechanism giving passive 1-10V DC control to LED drivers. The 40ER110DM-VW is part of the Clipsal Iconic 40 series and is supplied as a mechanism with a Vivid White glossy knob. It carries an IP20 rating and is built to AS/NZS 61347 for safety and AS CISPR15 for electromagnetic compatibility.

        A 1-10V DC dimmable LED driver takes its dimming level from a separate control pair, not from the mains feed. The 40ER110DM-VW lands on that control pair and works as a passive current sink, supplying no power to the load. The knob sets the level and the driver follows the analogue signal on the loop. Minimum brightness is set on the mechanism, by rotating the shaft behind the knob.

        The 40ER110DM-VW clips into a grid plate and takes one cutout, with multi-gang plates using a single locking bar across the row. The body measures 22.8 by 22.8 by 55.4 mm and sits flush at the plate once the bar closes. Only the 1-10V control loop runs through the mechanism, on two flying leads.

        Features

        • Passive 1-10V DC control — the 40ER110DM-VW sends an analogue 1-10V signal to the driver and supplies no power to the load.
        • Up to 30 devices — one mechanism controls the 1-10V inputs of up to 30 connected devices on the same loop.
        • 50 mA current sink — the mechanism draws a maximum of 50 mA from the driver control circuit.
        • Two-wire control loop — wiring is a 1-10V DC control loop only, with no mains supply landed on the mechanism.
        • Flying lead connections — the red lead is positive and the black lead is negative, landing on the driver control terminals.
        • Rotary push knob — turning the knob clockwise brightens the light and turning it counter-clockwise dims it.
        • Adjustable minimum level — removing the knob and adapter exposes a shaft that sets the lowest level the fitting runs at.
        • Clip-in fixing — the mechanism seats into the grid plate using a clip-in fixing mode.
        • SELV control only — the leads connect to isolated SELV 1-10V DC driver control interfaces only.
        • AS/NZS 61347 compliance — the 40ER110DM-VW is built to AS/NZS 61347 for safety and AS CISPR15 for electromagnetic compatibility.
        • IP20 indoor rating — the 40ER110DM-VW is rated IP20, which suits dry interior positions only.
        • Seven-year warranty — Clipsal warrants the 40ER110DM-VW for seven years from the date of installation.

        Where to use

        • Commercial LED lighting — the 40ER110DM-VW suits office and retail fitouts where the drivers take a 1-10V DC control input.
        • Multi-fitting lighting runs — one mechanism sets the level across up to 30 connected devices on a single control loop.
        • Grid plate positions — the clip-in body drops into a grid plate alongside switches and other mechanisms on the same row.
        • Commissioning low-end levels — spaces needing a fixed minimum light level have it set at the shaft during commissioning.
        • Flush wall positions — the 40ER110DM-VW is a flush-mount mechanism, so it sits in the wall rather than on the surface.
        • Zero to 40 degree interiors — the mechanism is rated for ambient temperatures from 0 to 40 degrees Celsius.

        The 40ER110DM-VW is rated IP20 and is not suitable for damp or wet positions such as bathrooms, laundries and external walls. It does not switch or dim mains power, so it cannot control a load with no 1-10V DC control input. Ambient temperature at the mechanism must stay between 0 and 40 degrees Celsius.

        (40ER110DM-VW)

        The 40ER110DM-VW is a rotary push dimmer mechanism that controls 1-10V DC dimmable LED drivers. It sends an analogue control signal down a two-wire loop and the driver sets the light level to match. The knob turns clockwise to brighten and counter-clockwise to dim.

        The 40ER110DM-VW only controls the light. It is a passive current sink, so it carries no power to the load and draws a maximum of 50 mA. Mains power runs to the LED driver as normal, and the dimmer lands on the driver's 1-10V control terminals.

        One dimmer runs up to 30 connected devices on the same 1-10V DC control loop. They all sit on the one two-wire control pair, with the red lead positive and the black lead negative.

        A licensed electrical contractor has to do the work, because wiring into a fixed electrical installation is restricted by law. The mechanism clips into a grid plate, the leads land on the driver control terminals, and the locking bar closes with a click.

        The 40ER110DM-VW is supplied as a mechanism with the knob fitted. A grid plate and a cover plate are needed to finish the installation and are not included. The body is 22.8 mm high, 22.8 mm wide and 55.4 mm deep.

        Clipsal warrants the dimmer for seven years from the date of installation. Claims go through Schneider Electric customer care, which handles the process directly.

        The dimmer is rated IP20, which covers dry interior positions only. It is not suitable for bathrooms, laundries, external walls or any damp or wet position. Ambient temperature at the mechanism needs to stay between 0 and 40 degrees Celsius.

        The Clipsal 40ER110DM-VW is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 40ER110DM-VW
        Model # 40ER110DM-VW
        Package Weight 0.015kg
        TYPE VALUE
        Type Switch Mechanism
        Brand Clipsal by Schneider Electric
        Range Clipsal Iconic
        Colour Vivid White
        Rated Current (A) 1.5
