Name: Robus RSNXPC | 80° Polycarbonate Highbay Reflector Suits LED MULTIBAY & SONICO
Brand: Robus
SKU: RSNXPC
Price: 77.88 AUD
Availability: InStock

Robus | Highbay Reflector 80 Degree for MULTIBAY and 170W SONICO | Clear Polycarbonate IK08

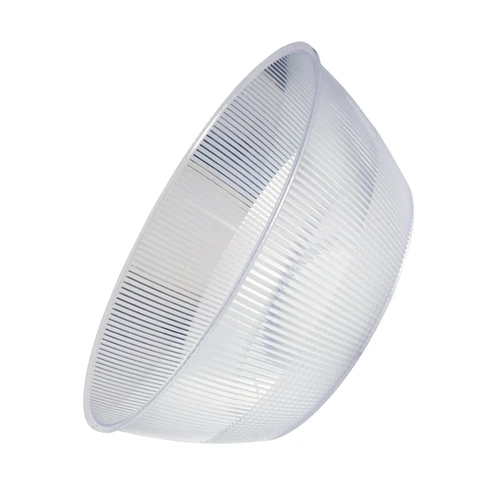

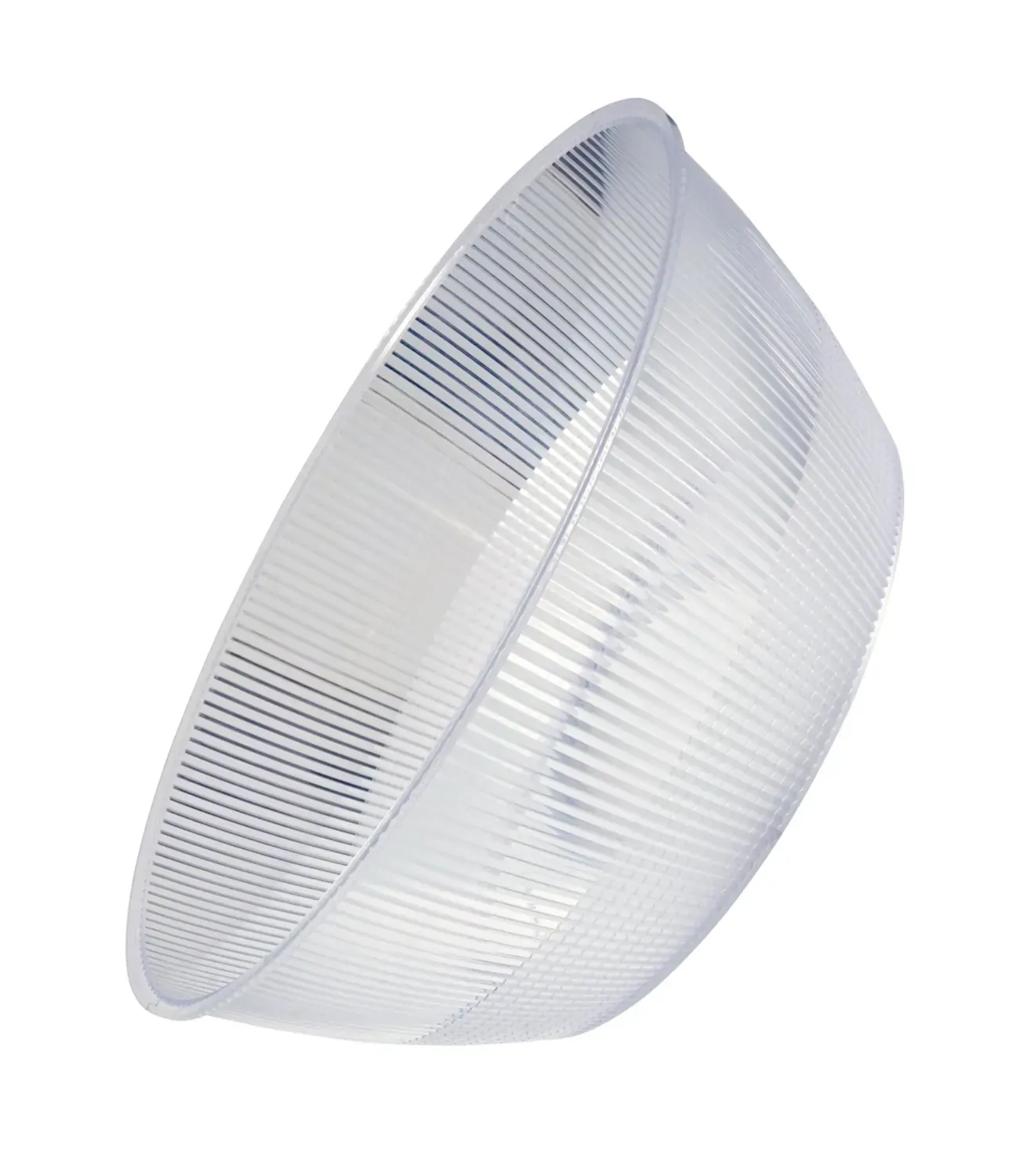

The Robus RSNXPC is a clear polycarbonate reflector that fits Robus MULTIBAY and 170W SONICO LED high bays and restricts the beam to 80 degrees. The RSNXPC measures 412mm in diameter by 151mm deep and weighs 0.66kg. It carries an IK08 impact rating, and is supplied as an accessory rather than as a complete luminaire.

A high bay running its native wide beam spreads light across the aisle and into the operator's eye line rather than onto the task. Racking reads as a dark canyon while the luminaire glares from the ceiling. The RSNXPC restricts the beam to 80 degrees and concentrates output downward, while IK08 polycarbonate tolerates the impacts a warehouse throws at it.

Adding a reflector at installation costs less than respecifying the luminaire or adding fittings to lift aisle illuminance. The 80 degree restriction concentrates identical output into a narrower footprint, which suits tall racking and narrow aisles. At 0.66kg the RSNXPC handles easily at height from a scissor lift, and clear polycarbonate keeps the fitting's appearance without a colour cast.

Features

80 degree beam restriction — the RSNXPC limits the high bay's beam to 80 degrees, concentrating output downward.

Glare reduction — Robus rates the reflector to reduce glare by cutting light that would otherwise spill toward the eye line.

Clear polycarbonate — the reflector is transparent polycarbonate, so it does not tint the light leaving the fitting.

IK08 impact rating — rated IK08 on the IEC 62262 impact scale for industrial and commercial positions.

412mm diameter — the RSNXPC measures 412mm across.

151mm depth — the reflector body is 151mm deep.

0.66kg — the reflector itself weighs 0.66kg, and ships at 1.450kg packaged.

-25 to +45 degrees C — Robus rates the reflector for ambient temperatures between -25 and +45 degrees Celsius.

Accessory only — the RSNXPC is a reflector, supplied without a luminaire, driver, or lamp.

Range specific — Robus lists the reflector for LED MULTIBAY and 170W SONICO high bays, and it is not a universal fit across other brands.

No electrical connection — the reflector is a passive optic with no wiring, driver, or dimming function.

Five year warranty — the RSNXPC carries a 5 year limited warranty for domestic and commercial use from the invoice date.

Where to use

Warehouse racking aisles — the 80 degree beam concentrates light down the aisle rather than across the racking tops.

Tall bay manufacturing — narrowing the distribution lifts floor illuminance under high mounting positions.

Workshops and service bays — the RSNXPC directs output onto the bench rather than into the operator's eye line.

Distribution centres — reduced spill concentrates illumination on the pick face where it is required.

Glare-sensitive positions — Robus rates the reflector to cut glare where operators look upward toward fittings.

Impact-exposed environments — IK08 polycarbonate suits areas where stock movement or equipment can strike the fitting.

Retrofit onto existing installations — the RSNXPC adds beam control to MULTIBAY and 170W SONICO fittings already mounted.

The RSNXPC is an accessory only, supplied without a luminaire, driver, or lamp. Robus lists it for LED MULTIBAY and 170W SONICO high bays, so it is not a universal reflector for other brands or models. Robus rates it for ambient temperatures between -25 and +45 degrees Celsius, so positions running hotter than that sit outside specification.

TYPE

VALUE

Type

Lighting

Brand

Robus

Colour

Clear

Depth (mm)

151

Diameter (mm)

412

Beam Angle (Degree)

Robus RSNXPC | 80° Polycarbonate Highbay Reflector Suits LED MULTIBAY & SONICO

Description

Robus | Highbay Reflector 80 Degree for MULTIBAY and 170W SONICO | Clear Polycarbonate IK08

Features

Where to use

Warranty

Specifications

Terms & Conditions

Reviews

Brand	Robus
SKU	RSNXPC
Model #	RSNXPC
Package Weight	1.450kg
