        Theben THELUXA-R180-WH | Outdoor Wall PIR Motion Detector 180° IP55 | White
        $54.89 $49.90 ex. GST
        Description

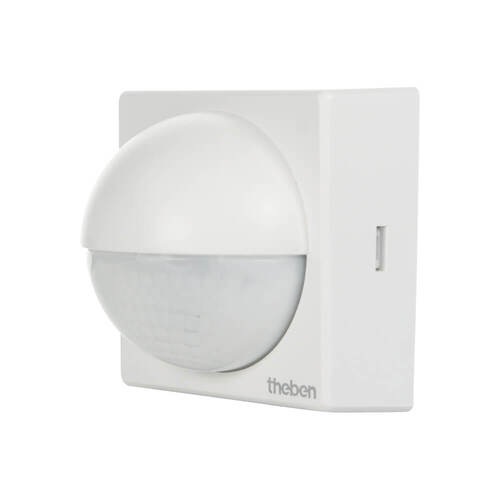

        Theben THELUXA-R180-WH | Outdoor Wall PIR Motion Detector 180° IP55 | White

        Theben THELUXA-R180-WH is a reliable outdoor wall PIR motion detector with a 180° detection angle. Designed for outdoor use, it features a robust case that protects it from tampering, and the operating controls are covered under a secured front cover.

        The detector includes adjustable brightness switching values and a switch-off delay, and an area limit can be set via a lens attachment. Its mixed light measurement capability suits various lamps, including fluorescent, incandescent, halogen, and LEDs.

        Zero-cross switching ensures relay-saving operation for high lamp loads. A test function allows for checking the detection area, and the device is easy to install on a flush-mounted socket (60 mm) with a single-handed plug-in process. Instant start-up is possible via factory preset, including a terminal for a protective earth conductor.

        PIR Detector Features:

        • Passive Infra-Red Motion Detector: Utilizes passive infra-red technology for reliable motion detection with a 180° detection angle.
        • Outdoor Durability: Robust case design provides tamper protection, with secured operating controls under a front cover.
        • Adjustable Settings: Features adjustable brightness switching value, switch-off delay, and area limit via lens attachment.
        • Mixed Light Measurement: Suitable for controlling fluorescent, incandescent, halogen lamps, and LEDs.
        • Efficient Operation: Zero-cross switching for relay-saving and high lamp loads, plus a test function to check the detection area.
        • Easy Installation: It fits flush-mounted sockets (60 mm) and can be plugged in with one hand. It starts instantly via a factory preset.
        • Safety Features: Includes a terminal for a protective earth conductor.

        THELUXA-R180-WH FAQ:

        Q: What is the operating voltage for this motion detector?
        A: The operating voltage is 230 V AC.

        Q: Can this motion detector be used with LED lamps?
        A: Yes, it is suitable for various lamp types, including LEDs.

        Q: What is the detection angle and range of the motion detector?
        A: The detection angle is 180°, and the range is semicircular.

        (THELUXA-R180-WH)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Detail
        Operating Voltage 230 V AC
        Frequency 50 - 60 Hz
        Stand-by Consumption <0.5 W
        Light Measurement Mixed light measurement
        Number of Channels 1
        Colour White
        Installation Type Wall installation, Outdoor
        Setting Range Brightness 2 lx - 200 lx
        Switching Capacity 10 A at 230 V AC, cos φ = 1
        Detection Angle 180°
        Installation Height 2.5 m
        Switching Output Light
        Light Switch-off Delay 2 s - 30 min
        Incandescent/Halogen Lamp Load 2300 W
        Fluorescent Lamp Load (Conventional, Not Corrected) 500 VA
        Fluorescent Lamp Load (Conventional, Parallel-Corrected) 500 W 60 µF
        Fluorescent Lamp Load (Conventional, Series-Corrected) 500 VA
        Fluorescent Lamp Load (Electronic Ballast) 500 W
        Energy Saving Lamps 500 W
        LED Lamp < 2 W 50 W
        LED Lamp 2-8 W 500 W
        LED Lamp > 8 W 500 W
        Lamp Types Incandescent/halogen lamps, fluorescent lamps, energy saving lamps, LEDs
        Detection Range Semicircular
        Ambient Temperature -25°C ... 45°C
        Impact Resistance IK09
        Protection Class II
        Type of Protection IP 55
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU THELUXA-R180-WH
        Barcode # 4003468100776
        Shipping Weight 0.2200kg
        Shipping Width 0.100m
        Shipping Height 0.090m
        Shipping Length 0.090m
        Shipping Cubic 0.000810000m3
        TYPE VALUE
        Type PIR Sensor
        Brand Theben
        Colour White
        Detection angle 180°
        Frequency 50Hz
        Installation Height 2.5m
        Operating Temperature 230V AC
        Brightness Range 2 lx - 200 lx
        IP Rating IP55
