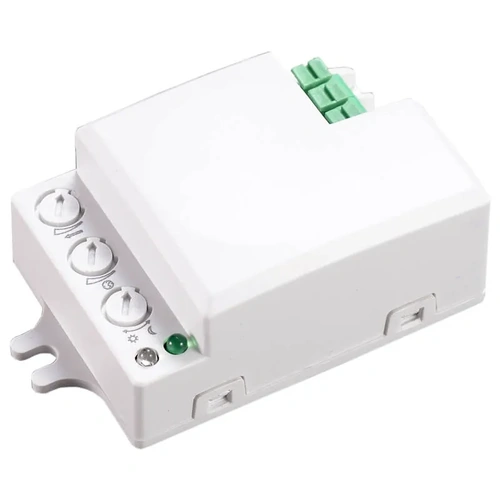

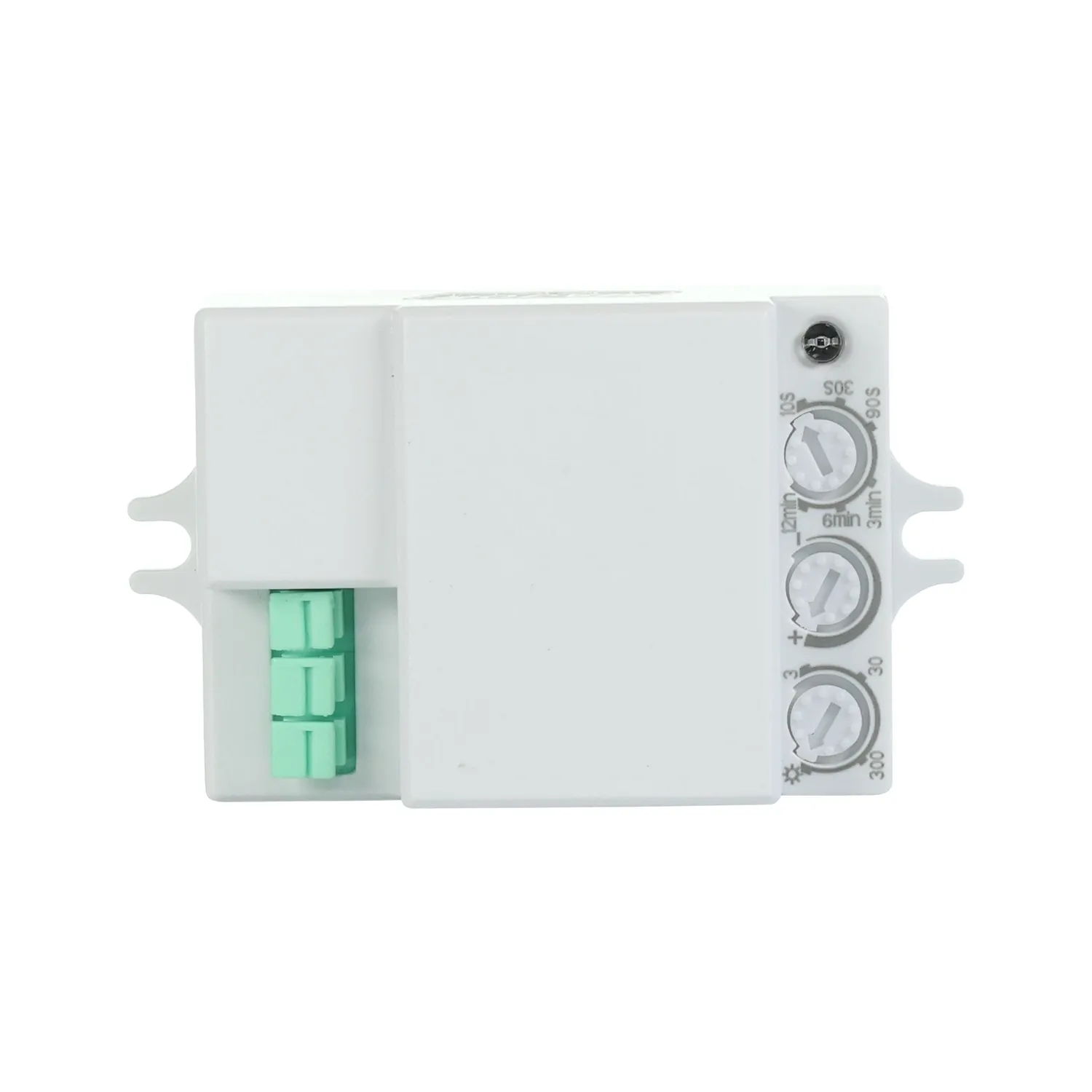

        Major Tech MS361 | 360° Indoor Microwave Motion Sensor | IP20

        The Major Tech MS361 is an indoor microwave motion sensor for automatic lighting control and presence detection in homes, offices, schools, and shared spaces. Unlike traditional PIR sensors, it detects subtle movement and body heat through doors, glass, and thin walls, making it ideal for enclosed areas where standard sensors may struggle.

        With 360° ceiling or 120° wall mounting, the MS361 delivers broad coverage with adjustable lux sensitivity, time delay, and day/night modes. It supports LED, CFL, and incandescent loads up to 600W, and is rated for indoor use only.

        MS361 Features

        • Mounting Options: 360° ceiling or 120° wall for flexible coverage
        • Microwave Detection: Detects motion and presence through non-metallic obstacles
        • Lux Sensitivity: Adjustable from 3 to 2000 lux for day/night operation
        • Detection Range: Ceiling mount: 2–16m, wall mount: 5–15m
        • Time Delay Settings: Adjustable hold time after last movement
        • Load Capacity: 600W LED/CFL, 1200W incandescent

        MS361 FAQ

        Q: Can it detect movement through doors or walls?
        A: Yes, it can detect through thin non-metallic surfaces like timber, plasterboard, or glass.

        Q: Is this suitable for outdoor use?
        A: No, it is IP20 rated and designed for dry indoor areas only.

        Q: Can I use this with LED lighting?
        A: Yes, it supports up to 600W total for LED and CFL fittings.

        (MS361)

        Warranty

        Warranty starts from Invoice Date

        5 Years Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Function 360° Ceiling / 180° Wall Motion Detection
        Detection Distance Ceiling: 2m – 16m (Adjustable)
        Wall: 5m – 15m (Adjustable)
        Detection Motion Speed 0.6 to 1.5 m/s
        HF System 5.8GHz CW Radar, ISM Band
        Ambient Light Sensitivity <3 to 2000 Lux (Adjustable)
        Installation Height Ceiling: 2m to 8m
        Wall: 5m to 15m
        Voltage 220 to 240V AC
        Power Frequency 50/60Hz
        Rated Load Incandescent: 1200W
        LED / CFL: 600W
        Time Delay 10 sec (±3 sec) to 12 min (±1 min)
        Power Consumption <0.9W
        Mounting Ceiling & Wall Mount
        Working Temperature -20°C to 40°C
        Working Humidity <93% RH
        IP Rating IP20 (Indoor Installation)
        Standards IEC 60669-1 / 60669-2-1
        AS/NZS 60669.1 / 60669.2.1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MS361
        Model # MS361
        Barcode # 6008229011856
        Package Weight 0.600kg
        Package Width 0.040m
        Package Height 0.110m
        Package Length 0.050m
        TYPE VALUE
        Type Sensor
        Brand Major Tech
        Voltage (V) 220 to 240V AC
        Time Delay 10 sec (±3 sec) to 12 min (±1 min)
        Detection Distance Ceiling: 2m - 16m (Adjustable) Wall: 5m - 15m (Adjustable)
        Detection Area Ceiling: 360°, Wall: 180°
        Detection Motion Speed 0.6 to 1.5m/s
        HF System 5.8GHz CW Radar, ISM Band
        Ambient Light <3 to 2000 Lux (Adjustable)
