        THEBEN LUNA111TOP3AL | Digital Surface-mounted light sensor | External Light Sensor | Top3
        $175.94 $159.95 ex. GST

        Learn more by watching our THEBEN LUNA111TOP3AL | Digital Surface-mounted light sensor | External Light Sensor | Top3 video.

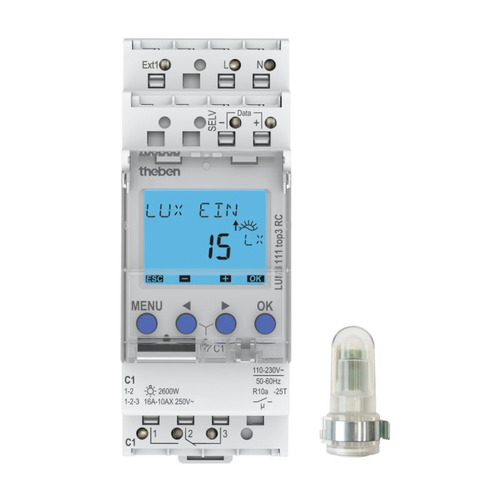

        THEBEN LUNA111TOP3AL | Digital Surface-mounted light sensor | External Light Sensor | Top3

        • Light level controller
        • The external light sensor included in delivery
        • 1 channel
        • External input
        • Programming by app is possible
        • Safe transfer via optional Bluetooth Low Energy OBELISK top3

        If you are controlling a motor or element, you must use a contactor to protect the twilight switch


        • Maximum manipulation security, programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the device
        • Switching brightness digitally adjustable
        • Adjustable On and Off switching delay
        • Switching brightness and switching delay can be set separately for switching On and Off
        • Onscreen display of channel and switching status as well as a current lux value
        • DuoFix spring terminals
        • Zero-cross switching for relay-saving switching and high lamp loads
        • Up to 4 sensors can be attached
        • Up to 10 devices can be connected to a digital sensor
        • Interface for OBELISK top2 memory card (PC programming)
        • Extended brightness range
        • Permanent switching ON/OFF
        • Test function
        • Switching preselection
        • Display backlight (can be turned off)
        • PIN coding
        • Operating hour counter



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Operating voltage 110 – 230 V AC
        Frequency 50 – 60 Hz
        Number of channels 1
        External inputs 1
        Stand-by consumption ~0.8 W
        Setting range brightness 1 – 99000 lx
        Preset brightness value 15 lx
        Switch-on delay 0 – 59 min
        Switch-off delay 0 – 59 min
        Type of contact Changeover contact
        Width 2 modules
        Installation type DIN rail
        Type of connection DuoFix spring terminals
        Display LCD-Display
        Keyboards 4 touch buttons
        Switching capacity 16 A at 250 V AC, cos φ = 1, 10 A at 250 V AC, cos φ = 0.6
        Incandescent/halogen lamp load 2600 W
        Halogen lamp load 2600 W
        Fluorescent lamp load (conventional) not corrected 2600 VA
        Fluorescent lamp load (conventional) parallel-corrected 130 µF
        LED lamp < 2 W 50 W
        LED lamp 2-8 W 600 W
        LED lamp > 8 W 600 W
        Sensor (included) Surface-mounted light sensor
        Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
        Ambient temperature -25°C ... 55°C
        Type of protection IP 20
        Protection class II, Sensor III
        Max. cable length to sensor 100 m

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU LUNA111TOP3AL
        Barcode # 4003468110034
        Shipping Weight 0.2220kg
        Shipping Width 0.103m
        Shipping Height 0.083m
        Shipping Length 0.076m
        Shipping Cubic 0.000650000m3
        TYPE VALUE
        Type Twilight Switch
        Brand Theben
        Rated Current (A) 16(10)
        Height (mm) 69.2
        Width (mm) 35.8
        Length (mm) 90.1
        Protection IP20
        Mounting Din Rail
        Voltage (V) 240
        Number of Modules 2
