    Search Results:

    Video

    Learn more by watching our THEBEN LUNA108PLUSEL | Analogue Flush-mounted light sensor | External Light Sensor video.

    Description

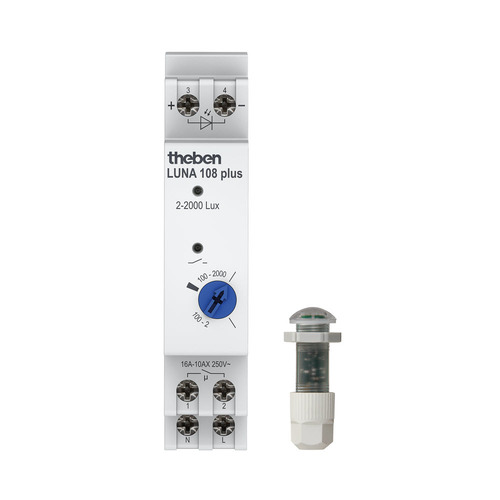

    THEBEN LUNA108PLUSEL | Analogue Flush-mounted light sensor | External Light Sensor

    • German Quality
    • Analogue twilight switch
    • The external light sensor included in delivery
    • Fixed On and Off switching delay

    If you are controlling a motor or element, you must use a contactor to protect the twilight switch

    Features

    • Analogue twilight switch
    • The external light sensor included in delivery
    • Fixed On and Off switching delay to avoid faulty operation caused by lightning, car headlights etc.
    • Display of channel and switching status
    • Infinitely adjustable switching brightness

    (LUNA108PLUSEL)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Operating voltage 230 V AC
    Frequency 50 – 60 Hz
    Number of channels 1
    Stand-by consumption ~0.3 W
    Setting range brightness 2 – 2000 lx
    Switch-on delay 20 s
    Switch-off delay 80 s
    Switching output Switching of various phases, no SELV
    Width 1 modules
    Installation type DIN rail
    Type of connection Screw terminals
    Switching capacity 16 A at 250 V AC, cos φ = 1, 10 AX Fluorescent lamp load
    Incandescent/halogen lamp load 2600 W
    Halogen lamp load 2600 W
    LED lamp < 2 W 30 W
    LED lamp 2-8 W 350 W
    LED lamp > 8 W 350 W
    Sensor (included) Flush-mounted light sensor
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Ambient temperature -30°C ... 55°C
    Type of protection IP 20
    Protection class II
    Max. cable length to sensor 50 m
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Theben
    SKU LUNA108PLUSEL
    Barcode # 4003468100967
    Package Weight 0.126kg
    Package Width 0.103m
    Package Height 0.046m
    Package Length 0.076m
    TYPE VALUE
    Type Twilight Switch
    Brand Theben
    Rated Current (A) 16(10)
    Height (mm) 65.5
    Width (mm) 17.5
    Width (mm) 35.8
    Length (mm) 85.5
    Protection IP20
    Mounting Din Rail
    Number of Modules 1
    Voltage (V) 240
