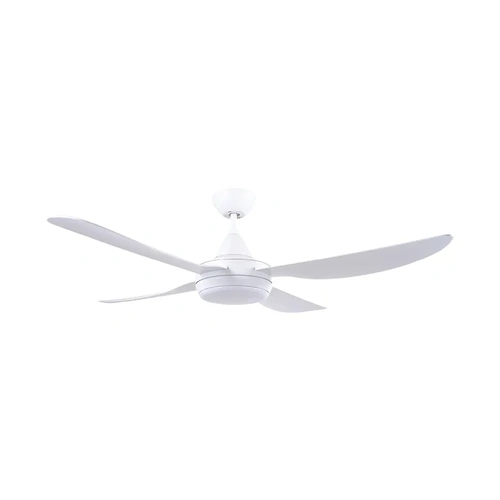

The Brilliant Vector III 22293-05 is a 52-inch AC ceiling fan with an integrated 18W tri-colour LED light, offering both strong airflow and energy-efficient lighting. Designed in matte white with a durable ABS body, it suits modern bedrooms, living areas, or enclosed outdoor spaces. The fan is 85% pre-assembled out of the box, and features Brilliant’s Ezi-Fit push-in blade system for fast, tool-free installation.
Powered by a 60W AC motor, it delivers up to 13,400 m³/hr of airflow for reliable circulation. The tri-colour LED array (3000K/4200K/6000K) is selectable via a switch on the light panel, providing 1400 lumens of adjustable lighting. A 3-speed wall controller is included, and the unit is compatible with Brilliant remote and Smart WiFi control kits (sold separately).
Rated for indoor and enclosed alfresco use, it handles up to 15° ceiling rake, backed by a 6-year warranty (3-year in-home + 3-year replacement).
Brilliant 22293-05 Features
22293-05 FAQ
Q: Can the LED colour be changed after installation?
A: Yes, the LED has a switch on the panel to select warm, cool, or natural white (3000K/4200K/6000K).
Q: Is the fan easy to install?
A: Yes, it comes mostly pre-assembled and features Ezi-Fit tool-free blade installation.
Q: Does it support smart control?
A: Yes, it’s compatible with Brilliant’s optional remote and WiFi smart control kits.
(22293-05)
Warranty starts from Invoice Date
3-year in-home plus 3-year replacement (6-Year)
*Limited warranty for wall controller, remote controller and light. Refer to the warranty card inside the box for more details
If you do experience any problems with your Brilliant ceiling fan within this period, lodge a warranty claim here or you can contact Brilliants warranty team on +61 3 9765 2555.
Specification | Details |
---|---|
Model | 22293/05 |
Size | 52 inch (1320mm) |
Motor Type | AC (Alternate Current) |
Operating Voltage | 220-240V AC / 50 Hz |
Motor Wattage | 60W |
Construction | ABS body and canopy |
Blade Material | Moulded ABS (x4) |
Ceiling Install | Hangsure |
Blade Pitch | 14° (effective) |
Ceiling Rake | 15° max |
Control | Wall 3-speed with light switch (included) |
Light Type | 18W LED CCT |
Light CCT Options | 3000K / 4200K / 6000K |
Dimmable | No |
Airflow | 13,400 m³/hr |
Warranty | 3 year in-home + 3 year replacement (6 years total) |
Standards | AS/NZS 60335-1, AS/NZS 60335-2-80, AS/NZS 60598-2-1 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Brilliant Lighting |
SKU | 22293-05 |
Barcode # | 9312641222934 |
Package Weight | 7.500kg |
Package Width | 0.285m |
Package Height | 0.290m |
Package Length | 0.590m |
TYPE | VALUE |
---|---|
Type | Ceiling Fan |
Brand | Brilliant |
Range | Vector |
Colour | Matt White |
Height (mm) | 376 |
Additional Feature | Corrosion resistance |
Lumens (Lm) | 1400 |
Lighting Technology | LED |
Light Colour (K) | 4000K |
Canopy Diameter | 150 |
Blade Size | 52 inch (1320mm) |
Ceiling Rake | 15 Degree Max |
Blade pitch | 14 Degree (effective) |
Construction | ABS body and canopy |
Control | Wall 3 speed with on/off switch (included) |
Air Flow (m3/h) | 10,804 |
Maximum Revolution Speed | 214 rpm |
Diameter (mm) | 1300 |
Summer / Winter Reverse | YES |
Light Wattage | 18 |
Power Consumption | 50W |
Material | ABS Plastic (acrylonitrile butadiene-styrene) |
Dimmable | Yes |
