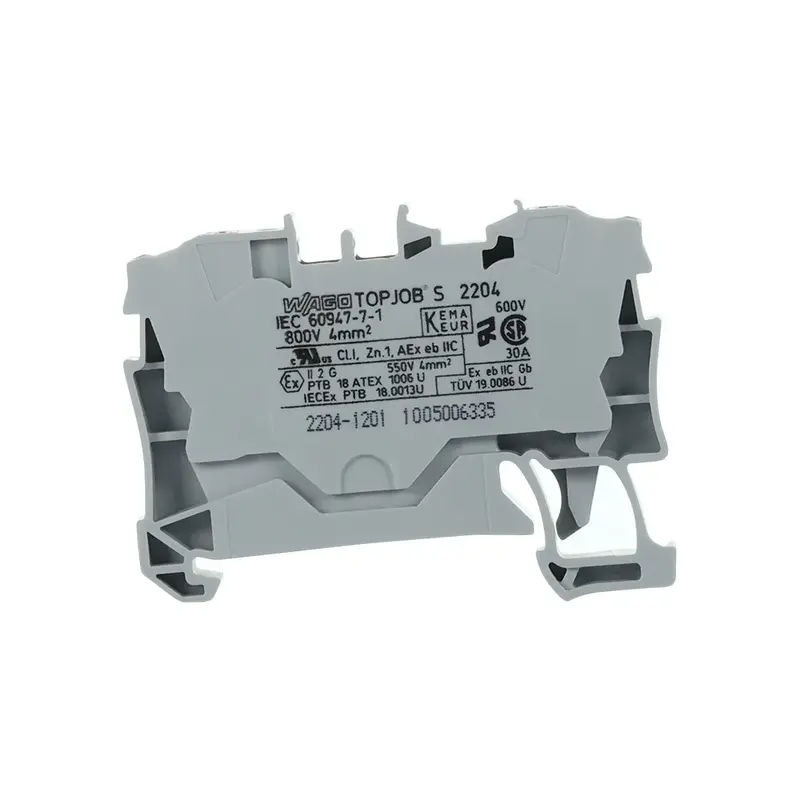

    Wago 2204-1201 | 2 Conductor Through Terminal With Push Button DIN-Rail 4mm² | 50-Pack

    The Wago 2204-1201 2-Conductor Through Terminal Block offers reliable, compact connectivity for 4mm² conductors on DIN-35 rails. Featuring convenient push-button actuation, this terminal block uses Wago’s CAGE CLAMP® push-in technology, allowing for easy insertion of both solid and stranded conductors. A 2mm test port is also included, providing simple access for testing and diagnostics.

    With a slim 6.2mm width, this terminal block maximizes space in control panels and distribution boards. Built from durable polyamide (PA66), it operates across a wide temperature range of -60°C to +105°C, making it suitable for diverse environments. It also includes centre and side marking options for clear identification.

    Wago 2204-1201 Features:

    • Push Button Actuation: Enables fast, secure connections with CAGE CLAMP® technology.
    • 2mm Test Port: Easy access for testing without interrupting connections.
    • DIN-35 Rail Compatibility: Fits standard DIN-35 x 15 and 35 x 7.5mm rails for versatile mounting.
    • Wide Temperature Range: Operates from -60°C to +105°C, adaptable to various conditions.
    • Flexible Marking Options: Supports side and centre marking for straightforward identification.
    • Compact 6.2mm Width: Saves space in control panels and tight installations.

    Wago 2204-1201 FAQ:

    Q: What conductor sizes does this terminal block support?
    A: It supports up to 4mm² conductors, providing secure connections in control applications.

    Q: Is there a test port for diagnostics?
    A: Yes, it includes a 2mm test port for convenient testing and troubleshooting.

    Q: What are the compatible DIN rail types?
    A: It’s compatible with DIN-35 x 15 and 35 x 7.5mm rails, allowing for flexible mounting.

    Q: What is the operating temperature range?
    A: It operates from -60°C to +105°C, making it suitable for various environmental conditions.

    (2204-1201)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Item Number 2204-1201
    Connection Technology Push-in CAGE CLAMP®
    Rated Voltage 800 V
    Rated Surge Voltage 8 kV
    Rated Current 32 A
    Dimensions (WxHxD) 6.2 x 52.3 x 39.5 mm
    Operating Temperature -60°C to +105°C
    Material Polyamide (PA66)
    Flammability Class UL94 V0
    Weight 7.1 g
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Wago
    SKU 2204-1201
    Barcode # 4055143847087
    Package Weight 0.410kg
    Package Width 0.330m
    Package Height 0.045m
    Package Length 0.095m
    TYPE VALUE
    Type Electrical Accessories
    Brand Wago
    Quantity 50
    Nominal Voltage 800V
    Rated Current 32A
    Connection points 2
    Rated Surge Voltage 8kV
