    Learn more by watching our Wago 2202-1201 | 2 Conductor Through Terminal With Push Button DIN-Rail 2.5mm² | 100-Pack video.

    Description

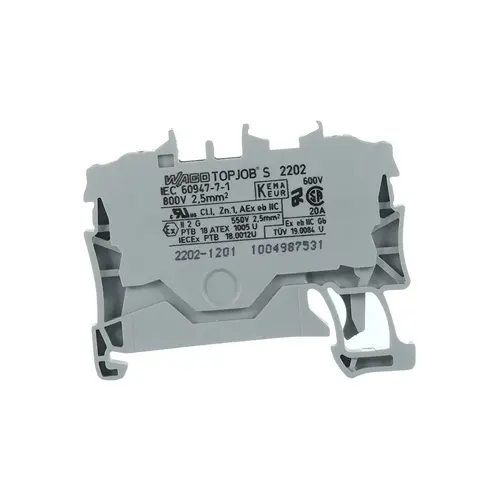

    Wago 2202-1201 | 2 Conductor Through Terminal With Push Button DIN-Rail 2.5mm² | 100-Pack

    The Wago 2202-1201 2-Conductor Through Terminal Block is designed for efficient wiring on DIN-35 rails. With a push-button actuation, it features Wago’s CAGE CLAMP® technology, allowing secure push-in connections for 2.5mm² wires, ensuring ease of use and reliability. It also includes a 2mm test port, simplifying testing and troubleshooting during maintenance.

    Constructed from durable polyamide (PA66), this terminal block operates across a wide temperature range of -60°C to +105°C, making it suitable for demanding environments. It provides flexible marking options with both side and centre markings, enhancing organization in control panels.

    Wago 2202-1201 Features:

    • Push Button Operation: Provides fast, secure connections with CAGE CLAMP® technology.
    • 2mm Test Port: Built-in access for efficient testing and diagnostics.
    • DIN-35 Rail Compatibility: Fits standard DIN-35 x 15 and 35 x 7.5mm rails for versatile setups.
    • Wide Temperature Range: Rated for -60°C to +105°C, suitable for various environments.
    • Flexible Marking Options: Supports both side and centre marking for easy identification.
    • Compact 5.2mm Width: Saves space in control panels and distribution boards.

    Wago 2202-1201 FAQ:

    Q: What conductor sizes does this terminal block support?
    A: It supports 2.5mm² conductors for stable, secure connections.

    Q: Can this terminal block be installed on DIN rails?
    A: Yes, it’s compatible with DIN-35 x 15 and 35 x 7.5mm rails, fitting seamlessly into standard setups.

    Q: Does this unit include a test port?
    A: Yes, it features a 2mm test port for convenient testing and diagnostics.

    Q: What is the operating temperature range for this terminal block?
    A: It is rated for -60°C to +105°C, suitable for diverse applications.

    (2202-1201)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Item Number 2202-1201
    Connection Technology Push-in CAGE CLAMP®
    Rated Voltage 800 V
    Rated Surge Voltage 8 kV
    Rated Current 24 A
    Dimensions (WxHxD) 5.2 x 48.5 x 39.5 mm
    Operating Temperature -60°C to +105°C
    Material Polyamide (PA66)
    Flammability Class UL94 V0
    Weight 5.3 g
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Wago
    SKU 2202-1201
    Barcode # 4055143848497
    Package Weight 0.585kg
    Package Width 0.280m
    Package Height 0.050m
    Package Length 0.110m
    TYPE VALUE
    Type Electrical Accessories
    Brand Wago
    Quantity 100
    Nominal Voltage 800V
    Rated Current 24A
    Connection points 2
    Rated Surge Voltage 8kV
