Learn more by watching our Wago 2210-1207-Single | 2 Ground Conductor Through Terminal With Push Button DIN-Rail 10mm | Single Buy video.

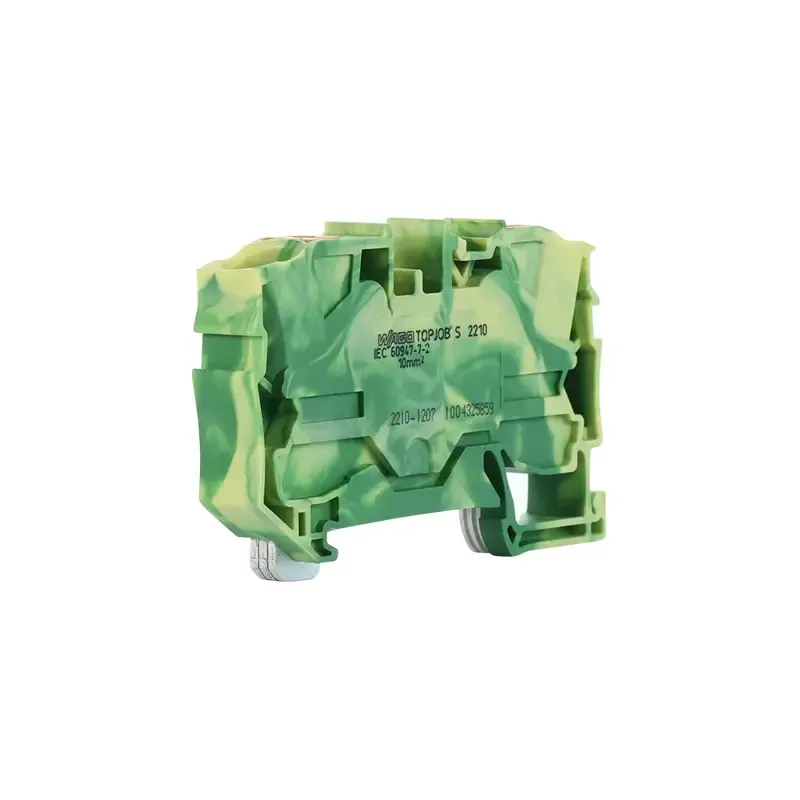

The Wago 2210-1207 is a two-conductor ground terminal block with a 10mm2 nominal cross-section. This listing supplies one block rather than Wago's twenty-five-piece pack. The 2210-1207 takes 0.5 to 16mm2 copper conductors and mounts on DIN-35 rail at 10mm wide. Conductors go in through a push-button Push-in CAGE CLAMP, and there is a test port in the front face.
Earth positions on a switchboard rarely land on a round number. Supplied as a single block, the 2210-1207 lets an earth bar be built to the exact position count. The 0.5 to 16mm2 range runs well past the 10mm2 name, so a heavy main earth lands in the same block as the smaller ones. The green-yellow housing marks the position as protective earth against the grey blocks either side.
An earth connection that cannot be demonstrated becomes a problem at inspection. The test port takes a probe, so continuity is checked with conductors still terminated. Push-button actuation holds spring pressure on the conductor instead of relying on a screw staying torqued. Two jumper slots take a push-in jumper bar, so a set of positions is commoned in one go.
The 2210-1207 is a green-yellow earth block, so it takes earth conductors only and never an active or a neutral. It carries no amp rating, because an earth terminal is sized by the earthing arrangement the electrician is working to, not by a figure on the block. Every run also needs an end plate on the end, ordered separately.
(2210-1207-Single)
One block. Wago packs this item in boxes of twenty-five, and this listing breaks the pack so a board can be ordered to the exact number of earth positions it needs.
0.5 to 16mm2 solid or fine-stranded copper, which is 20 to 6 AWG. The 10mm2 figure in the product name is the nominal cross-section, not the largest conductor the block accepts.
Solid conductors from 2.5 to 16mm2 and ferruled ones from 4 to 10mm2 push straight in. Bare fine-stranded conductors need the operating tool, and so does getting any conductor back out.
No, and Wago does not publish one. An earth block is not sized from a terminal rating. The earth conductor size comes from the earthing arrangement the installing electrician is working to.
10mm of rail per block. It stands 67.6mm high and sits 36.9mm off the top edge of the rail, and weighs 30.9g.
Yes. Each block has two jumper slots. Drop a push-in jumper bar in and press it down until it hits the backstop, and the blocks are commoned.
Yes. Wago lists an end and intermediate plate as a required accessory, sold separately. Allow one for the end of each terminal run.
Hazardous area approvals under ATEX, IECEx, AEx, CCC, EAC and INMETRO for Ex eb IIC Gb and Ex eb I Mb. Marine approvals come from ABS, Bureau Veritas, DNV GL and Lloyds Register, plus EN 50155 rail testing.
The Wago 2210-1207 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Item Number | 2210-1207 |
| Connection Technology | Push-in CAGE CLAMP® |
| Clamping Units | 2 |
| Nominal Cross-Section | 10 mm² |
| Solid Conductor Range | 0.5 … 16 mm² / 20 … 6 AWG |
| Fine-Stranded Conductor Range | 0.5 … 16 mm² / 20 … 6 AWG |
| Strip Length | 17 … 19 mm / 0.67 … 0.75 inches |
| Width | 10 mm / 0.394 inches |
| Height | 67.6 mm / 2.661 inches |
| Depth from Upper-Edge of DIN-Rail | 36.9 mm / 1.453 inches |
| Material | Polyamide (PA66) |
| Color | Green-Yellow |
| Weight | 30.9 g |
| Operating Temperature | -60°C to +105°C |
| Flammability Class | UL94 V0 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 2210-1207-Single |
| Model # | 2210-1207 |
| Barcode # | 4055143736084 |
| Package Weight | 0.003kg |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Brand | Wago |
| Colour | Yellow/Green |
| Height (mm) | 68 |
| Width (mm) | 10 |
| Mounting | DIN rail |
| Weight (g) | 3 |
| Connection Type | Push-in Cage Clamp |
| Solid Conductor | 0.5 - 16mm² |
| Fine-Stranded Conductor | 0.5 - 16mm² |
