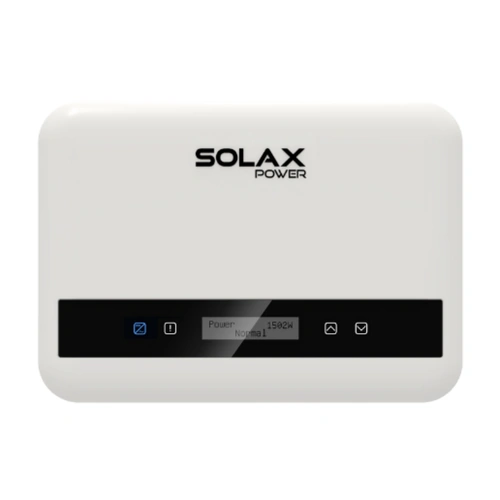

        SolaX X1-MINI-1.5K-G4  | 1.5kW X1-Mini G4 Solar Single-Phase Inverter | MPPT

        The SolaX X1-MINI-1.5K-G4 is a compact single-phase grid-tied inverter designed for small-scale residential solar systems. It delivers 1.5kW rated AC output and supports up to 3kWp of PV input, allowing 200% oversizing to maximise yield with high-power panels.

        Its ultra-wide MPPT window (40–520V) with global MPP scan ensures optimum power tracking across varied conditions, ideal for rooftops with multiple orientations or intermittent shading. The G4 series also includes Type II SPD on both AC and DC sides, IP66 weather protection, and optional AFCI support for advanced safety.

        It offers built-in export control, supports parallel connection of up to 5 inverters without the need for an external EMS, and integrates with smart loads like EV chargers and heat pumps. Remote monitoring is enabled via SolaXCloud with 10-second refresh rate and IV curve scanning for efficient diagnostics.

        SolaX X1-MINI-1.5K-G4 Features

        • 1.5kW AC output: Ideal for small homes and urban solar installations
        • 200% DC oversizing: Up to 3kWp PV input supported for greater energy harvest
        • High conversion efficiency: Up to 98% max efficiency with strong Euro efficiency ratings
        • Advanced protection: Type II SPD (AC/DC), optional AFCI, IP66-rated casing
        • Flexible energy control: Export limit, parallel operation (up to 5 units), smart load compatibility
        • Smart monitoring: SolaXCloud with 10s data refresh and IV curve scan
        • Compact and light: Natural convection cooled, 290 × 206 × 120mm, 5.2kg

        Where to Use the SolaX X1-MINI-1.5K-G4

        • Small residential PV systems: Perfect for grid-connected installs up to 1.5kW AC
        • Inverter upgrades: Replace ageing inverters with modern, efficient, cloud-connected tech
        • Export-limited sites: Take advantage of integrated power control without additional hardware
        • Multi-inverter setups: Run multiple units in parallel for scalable solar arrays

        Refer to the official SolaX datasheet for full electrical specifications and installation guidelines.

        (X1-MINI-1.5K-G4)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        5-Year Standard Warranty

        Your product is covered for 5 years from the earlier of:

        • The date it is first installed; or

        • Six (6) months after the manufacturing date shown on the product.

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SolaX
        SKU X1-MINI-1.5K-G4
        Model # X1-MINI-1.5K-G4
        Package Weight 5.500kg
        Package Width 0.220m
        Package Height 0.135m
        Package Length 0.310m
        TYPE VALUE
        Type PV Inverter
        Brand SolaX
        Colour White
        IP Rating IP66
        Nominal Output Power (W) 1500
        Max PV Voltage (V) 450
        PV Input (kWp) 3
        Rated AC Voltage 1 / N / PE, 220 / 230 / 240 V
