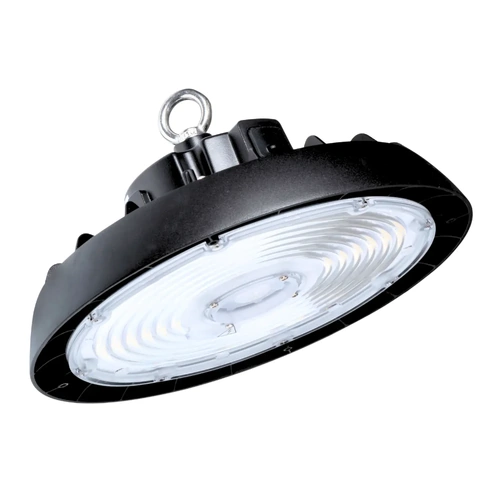

        Robus RSNXCCT3DA-04 | 120-200W LED Highbay Tri CCT | Dimmable

        The Robus RSNXCCT3DA-04 is a multiwattage, tri-colour dimmable LED highbay, purpose-built for replacing traditional 200W–400W metal halide fittings. This high-performance luminaire allows selection between 120W, 150W, or 200W output, and offers colour temperature switching between 3000K, 4000K, and 5000K, all in a single unit.

        With a dimmable 1–10V driver and lumen output up to 32,010lm, it delivers high-efficiency lighting at up to 182lm/W, making it ideal for commercial buildings, warehouses, and industrial installations. The housing is made from die-cast aluminium with an IK10-rated polycarbonate lens, offering impact resistance and IP65 protection for tough environments. It comes prewired with 2m rubber flex and plug, and is compatible with Robus microwave sensor (RSPMW) and remote control (RSPMW-RC) for smart control integration. (NOT INCLUDED)

        RSNXCCT3DA-04 Features

        • Selectable output: 120W / 150W / 200W: One fitting, three power levels for installation flexibility.
        • Tri-CCT switchable: 3000K / 4000K / 5000K: Adapt colour temperature to suit any application.
        • Dimmable via 1–10V interface: Smooth brightness control in large areas.
        • High lumen performance: up to 32,010lm: With efficacy of 153–182 lm/W depending on setting.
        • IK10 & IP65 rated housing: Impact and weather-resistant for indoor/outdoor use.

        RSNXCCT3DA-04 FAQ
        Q: What is the light output range?
        A: Depending on the selected wattage, output ranges from 20,770lm to 32,010lm.

        Q: Can this highbay be dimmed?
        A: Yes, it's 1–10V dimmable and compatible with sensor and remote accessories.

        Q: Is it suitable for use in dusty or damp areas?
        A: Yes, with its IP65 rating, it can be used in demanding indoor or partially exposed environments.

        (RSNXCCT3DA-04)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year Limited Warranty
        Commercial Use: 5 Year Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Model RSNXCCT3DA-04
        Total Power (W) 120 / 150 / 200
        Total Light Output (lm) 20770 / 24970 / 32910
        Efficacy (lm/cctW) 173 / 167 / 165
        Lux at 1m (lux) 7995 / 9590 / 12240
        CCT (K) 3000 / 4000 / 5000
        CRI 80
        Power Factor ≥0.95
        IP Rating IP65
        Operating Temperature (°C) -25 to +45
        Inrush Current 50A/1us
        Rated Life to L70B50 (Hrs) 50,000
        Dimensions (mm) 390 x 163 (Ø x H)
        Weight (kg) 2.3
        Time Off Delay 10 sec to 60 min
        Illuminance Switching Range 10 lx to 50 lx, disabled
        Sensitivity Range (%) 25%, 50%, 75%, 100%
        Max Mounting Height 12 m
        Detection Diameter 12 m
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Robus
        SKU RSNXCCT3DA-04
        Package Weight 3.340kg
        Package Width 0.375m
        Package Height 0.150m
        Package Length 0.380m
        TYPE VALUE
        Type Highbay
        Brand Robus
        Colour Black
        Light Colour (K) 3000/4000/5000K
        Wattage (W) 120/150/200W
        Dimmable Yes
        IP Rating IP65
        Beam Angle (°) 110°
        Lumen Output (lm) 20770/24970/32010lm
