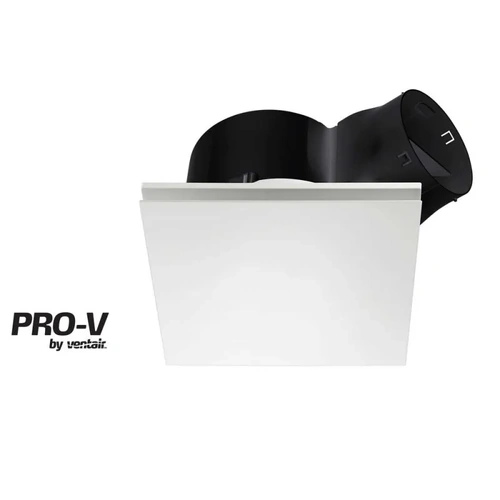

        Ventair PVPXHF300SQR | Airbus AC 300 Square Ceiling Exhaust Fan | White

        The Ventair PVPXHF300SQR is a 300mm square ceiling exhaust fan built for efficient moisture removal in bathrooms, ensuites, and laundries. Part of the Airbus AC 300 series, it features a high-performance centrifugal motor delivering up to 550m³/h airflow while maintaining quiet operation at just 46dB(A).

        This model includes a built-in backdraft stopper to prevent heat loss and unwanted reverse airflow. Its low sheen white square fascia provides a clean finish, while the plug-and-play design with included plug and lead ensures quick and easy installation. With an IPX4 moisture rating and 150mm duct compatibility, it's ideal for wet-area ceiling installs.

        Ventair PVPXHF300SQR Features

        • 300mm square ceiling fan in white: Sleek, low-profile design for moisture-prone spaces.
        • 550m³/h airflow capacity: Strong extraction with minimal noise.
        • Quiet operation at 46dB(A): Comfortable for daily use in residential environments.
        • Plug-and-play connection: Supplied with plug and lead for fast, no-fuss setup.
        • Built-in backdraft stopper: Helps improve energy efficiency.
        • 150mm duct outlet: Standard duct compatibility with 220mm install depth required.
        • IPX4 moisture rating: Safe for use in wet zones.
        • 5-year warranty: Backed by Ventair for long-term peace of mind.

        PVPXHF300SQR FAQ
        Q: Is this fan easy to install?
        A: Yes, it features a plug-and-play design with included plug and lead.

        Q: Is it suitable for use in bathrooms or laundries?
        A: Yes, the IPX4 rating makes it perfect for high moisture areas.

        Q: What size ducting does it support?
        A: It’s compatible with 150mm ducting and requires at least 220mm cavity depth.

        (PVPXHF300SQR)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Years (2 Years Parts & Labour In-Home + 3 Years Motor Replacement Only)
        Commercial Use: 1 Year
        Warranty Method: Lodge Claim with Ventair





        Features
        Specification Details
        Model PVPXHF300SDR
        Style Airbus AC 300 White Square
        Air Delivery 550m³/h
        Motor Power 106W
        Noise Level 42dB(A)
        Duct Outlet 150mm
        Draft Stopper Yes
        Minimum Install Depth 220mm
        Cut Out 296mm diameter
        Fascia Size 326mm x 326mm
        Power Input 220–240V~ 50Hz
        IP Rating IPX4
        Installation AC Plug and Lead
        Warranty 5 years
        Packaging Size 340mm x 340mm x 246mm
        Gross Weight 4.26kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Ventair
        SKU PVPXHF300SQR
        Barcode # 9339310015413
        Package Weight 4.260kg
        Package Width 0.340m
        Package Height 0.246m
        Package Length 0.340m
        TYPE VALUE
        Type Exhaust Fan
        Brand Ventair
        Size 300mm
        IP Rating IPX4
        Power Input 220-240V~ 50Hz
        Depth of installed product Min. 220mm
        Colours White
        Duct Size (mm) 150
