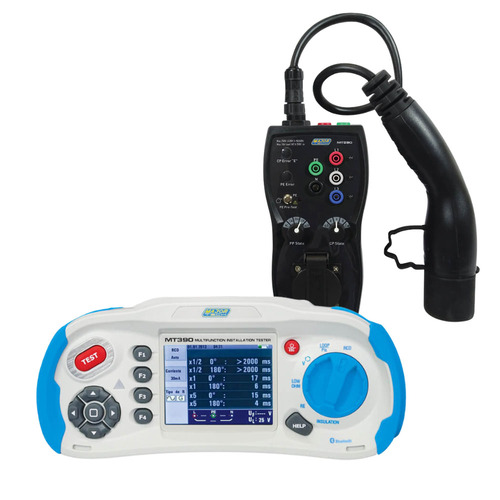

Major Tech MATE-1 | MT390 Tester + MT290 Adaptor
Learn more by watching our Major Tech MATE-1 | MT390 Tester + MT290 Adaptor video.
Additional related video.
Major Tech MT390 | Multifunction Installation Tester
Download the Datasheet
Description:
The MT390 is a fast and accurate Multifunction Installation tester which makes testing installations easy and ensures that it is safe and complies to regulations, and is a must have in an electrician’s arsenal. It is the most cost effective MFT on the market and is a firm favourite with electrical installers and commissioning engineers. The unit features Insulation resistance, Low Ohm measurement, Loop/PSC measurement, RCD measurement, Earth resistance measurement, Phase rotation and shows mains voltage with frequency on screen. The MT390 has soft key and menu options allowing the user to access the easy-to-use menu to select and change parameters, and a friendly “Help” option displays a wiring diagram on screen to ensure correct connection. With safety in mind, the meter connections panel has a protective slide that prevents incorrect connection while charging and communicating with the meter. The 3.5″ TFT screen displays multiple readings clearly and are visible from all angles. The instrument allows the user to save, review and label recordings. The all-in-one design includes Bluetooth file transfer and an internal memory with easy-to-use software that eliminates time consuming paperwork while testing multiple sites. The Bluetooth app allows the user to instantly share a measurement to a smartphone, both iOS and Android devices are supported, and the test report can be shared instantly via email in CSV format. Other connection options include Mini USB, S-Video TV out and MicroSD. The rugged double injection rubber housing withstands the knocks and bangs of everyday heavy use, and is supplied in a hard plastic carrying case. The MT390 complies with the IEC 61010 CAT IV 400V safety ratings.
Features:
Major Tech MT290 | Electric Vehicle Supply Equipment Adaptor
Download the Datasheet
Description:
Are you ready to take your vehicle diagnostics to the next level? The Major Tech MT290 Electric Vehicle Supply Equipment Adaptor is your key to seamless and efficient diagnostics. Say goodbye to uncertainties and hello to a new era of vehicle diagnostics.
Benefits:
Universal Compatibility: The MT290 is designed to be compatible with a wide range of vehicle diagnostics, making it a versatile tool for automotive professionals. It ensures that your diagnostics are universally accessible.
Thorough Testing: This adaptor is your universal tool for thorough diagnostics of Mode 3 AC Electric Vehicle charging stations. Ensure the safety and functionality of your diagnostics points with ease.
PE Pre-Test Safety: Safety comes first, and the MT290 incorporates a PE Pre-Test feature that checks the PE conductor for the presence of dangerous voltage against earth. Peace of mind is paramount when it comes to diagnostics.
Cable Simulation: The rotary switch for the Proximity Pilot (PP) state "Cable Simulation" allows you to simulate various current capabilities of charging cables. Ensure that your cables can handle the load with confidence.
Vehicle Simulation: The rotary switch for Control Pilot (CP) state "Vehicle Simulation" lets you select and simulate various diagnostic states. It's like having a virtual diagnostic tool at your fingertips for testing and optimization.
Live Conductor Testing: The MT290 empowers you to take live conductor measurements using either the front-mounted mains socket or the 4mm measuring terminals of L1, L2, L3, N, and PE of the EVSE adaptor. Comprehensive testing is at your fingertips.
Rugged and Protected: The MT290 is built tough with an IP54 rating for dust and splash-proof water protection. It's designed to withstand the demands of your testing environment, ensuring reliability and longevity.
Elevate your vehicle diagnostics experience with the Major Tech MT290 Adaptor. Ensure the safety, functionality, and compatibility of your diagnostics equipment. Embrace the future of automotive diagnostics and get your MT290 today!
(MATE-1)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Function | Range | Resolution | Accuracy |
| Continuity | 4-400.0Ω | 0.001Ω | ±(1.5% + 30 Digits) |
| Insulation Resistance | 125/250/500/1000V | 0.125 – 4000MΩ | ±(2% + 10 Digits) |
| Loop Range | 0 – 999Ω | 0.01Ω | ±(4% + 6 Digits) |
| PSC/PFC | 0.23A – 23000A | Derived from Loop and Voltage measurement | |
| RCD | x 5, x 1, x 1/2, auto ramp mA | 15/30/50/100/200/500/650/1000mA | |
| Measuring Range | 2000ms | ±(1% + 3) | |
| Voltage Measurement | 80V – 500V | 1V | ±(2% + 2 Digits) |
| Frequency Response | 45-65Hz | 1Hz | ±(2Hz) |
| Earth Resistance | 99.99/2000Ω | 0.01Ω | ±(2% + 30 Digits) |
| Short Circuit Current | >200mA | ||
| Rated Current | 1mA | ||
| Loop Impedance | L-PE, L-PE(ATT), L-N, L-L | ||
| Test Current | 8.0A – 25.0A | ||
| Phase Angle | 0° to 180° | ||
| PC Interface | USB/Bluetooth | ||
| Display | 3.5″TFT Display | ||
| Memory | SD Card | ||
| Back Light | Yes | ||
| Enclosure | Over Moulded case | ||
| Low Battery Indication | Yes | ||
| Batteries | 8 x AA | ||
| Weight | 631g | ||
| Dimensions | 220 x 94.6 x 60.5mm | ||
| Safety Specs | IEC61010-1 CAT IV 400V | ||
| Function | Range |
| Input Max Single Phase System | 250V |
| Input Max Three Phase System | 430V, 50/60Hz, |
| Input Max | 10A200.0mV – 600V |
| EVC-200 Connector | AC charging mode 3. Suitable for Type 2 wall top contact or fixed cable with vehicle connection (type 2 7P operation phase) |
| EVC-100 Connector | AC charging mode 3. Suitable for Type 1 with vehicle connection (type 1 5P single-phase) |
| PE Pre-Test | Yes
open (Error condition or disconnection of plug) 13A Coding for maximum current of the EV cable |
| PP Stimulation | 20A
32A EVSE is connected and can operate in any, 63A of these coding position. |
| CP Stimulation | states A (EV disconnect),
states B (EV connected), states C (EV charged without ventilation), states D (EV charged with ventilation) |
| CP Error “E” | On (CP short to PE via diode / off |
| PE Error | On (PE error) / off |
| Size | 227 x 115 x 60mm |
| Weight | 832g (without connection cables) |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MATE-1 |
| TYPE | VALUE |
|---|---|
| Brand | Major Tech |
| Combo | MT390 + MT290 |
