        Learn more by watching our Major Tech MTC30 | Voice Data Video Cable Mapper 305m video.

        Description

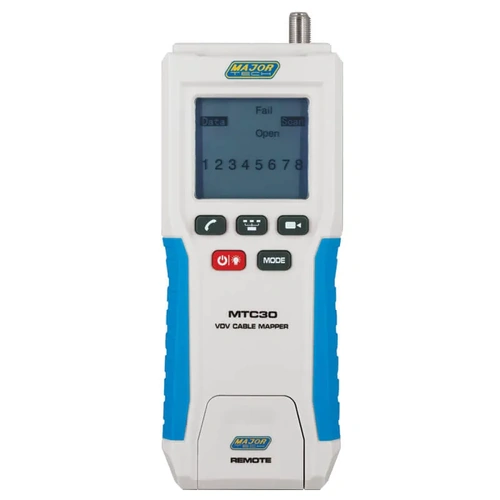

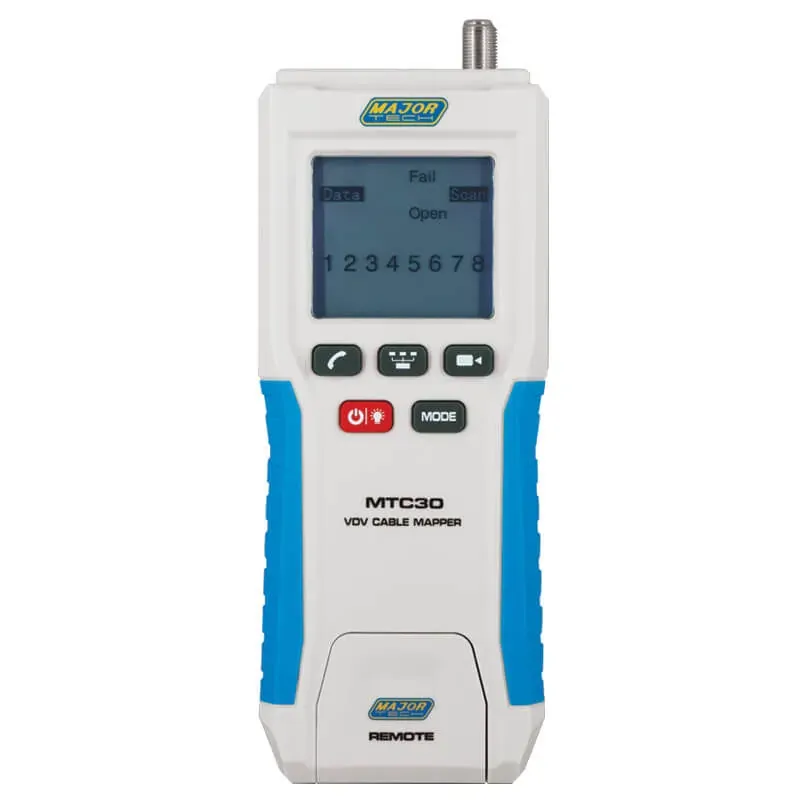

        Major Tech MTC30 | Voice Data Video Cable Mapper 305m

        The Major Tech MTC30 is a professional cable mapper built for voice, data, and video testing. It works with phone (RJ11/RJ12), network (RJ45), and coaxial (F-Connector) cables, making it a versatile tool for telecom, networking, and AV installations. In one step, it maps out cable connections and detects faults like split pairs, shorts, opens, and miswires. A large backlit LCD provides a clear layout of the wiring, helping with quick diagnostics.

        This tester also features a built-in tone generator for easy cable tracing, especially when paired with the optional MTC40 tone probe. It supports both shielded and unshielded cables up to 305 meters, with a detachable remote terminator for testing long runs. The pass/fail function gives instant verification of correct wiring. Powered by batteries and designed for portability, it's an essential tool for electricians and network professionals.

        Major Tech MTC30 Features:

        • Multi-Function Cable Testing – Supports phone (RJ11/RJ12), network (RJ45), and coaxial (F-Connector) cables.
        • Backlit LCD Display – Shows wiring layouts and faults in an easy-to-read format.
        • Built-In Tone Generator – Three selectable tones for quick cable tracing.
        • Fault Detection – Identifies split pairs, shorts, opens, miswires, and reversed pairs.
        • Remote Identification – Includes a detachable remote terminator for long-distance testing.
        • 305m Testing Capability – Tests cables up to 1000 feet with a maximum resistance of 100Ω.
        • Battery Powered & Portable – Compact design with a low battery indicator.
        • Optional MTC40 Tone Probe Compatible – Enhances cable tracing when used together.

        MTC30 FAQ:

        Q: What types of cables does the MTC30 support?
        A: It supports Cat 3, Cat 5, Cat 5e, Cat 6, Cat 6a, Cat 7, Cat 7a, RJ11, RJ12, and coaxial cables.

        Q: How does the built-in tone generator work?
        A: It produces three selectable tones to help locate cables in wiring closets and patch panels, especially when used with the MTC40 tone probe.

        Q: What is the maximum cable length it can test?
        A: The MTC30 can test cables up to 305 meters (1000 feet).

        (MTC30)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Features
        Function Range
        Operating Temperature 0°C to 50°C
        Operating Humidity 10% to 90%, non-condensing
        Maximum Voltage 60V DC or 55V AC (between 2 pins)
        Battery Type 2 x AAA 1.5V
        Cable Types Supported Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3
        Maximum Cable Length 305 meters
        Minimum Cable Length 0.5 meters for split pair detection
        Maximum Cable Resistance Max. 100 ohms DC
        LED Status Indicators Twisted pairs (RJ45)/Coax, Continuity, X (Cross-overs), S (Shield status), Split, Reversal, Miswire, Short, and Low Battery
        Detachable Remote RJ45
        Dimensions 127 × 55 × 28 mm
        Weight 126g
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTC30
        Barcode # 6008229041587
        Package Weight 0.536kg
        Package Width 0.145m
        Package Height 0.057m
        Package Length 0.230m
        TYPE VALUE
        Type Cable Mapper
        Brand Major Tech
        Dimensions 181 x 70 x 38mm
        Weight 386g
        Cable Types Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax
        Maximum Voltage 60V DC/55V AC
        Maximum Cable Length 305m
