        Ohme HP5-07AU-WI-BLSTD-01 | Home Pro 7.4kW EV Charger Type 2 5M Cable | WiFi

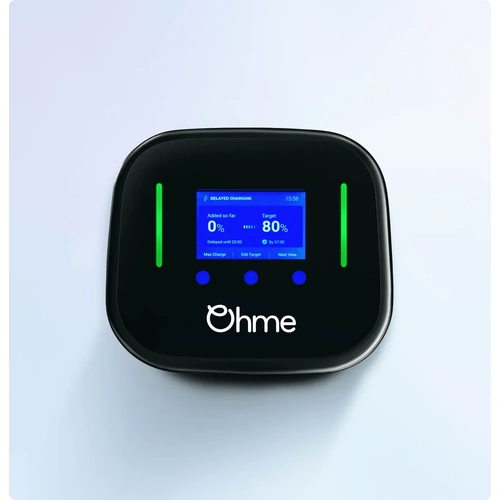

        The Ohme Home Pro HP5-07AU-WI-BLSTD-01 is a smart 7.4kW EV charger built for home use, offering fast charging, intelligent scheduling, and rugged, outdoor-ready construction. It includes a tethered 5-metre Type 2 cable, compatible with most EVs in Australia, and suits wall or post mounting in garages, carports, or open areas.

        Equipped with WiFi connectivity, the unit gives users full control via the Ohme mobile app or its full-colour LCD display with built-in push-button controls. Through the app, users can schedule charging, track real-time energy usage, optimise for off-peak electricity rates, or leverage excess solar generation—all designed to reduce costs and increase charging efficiency.

        Built tough with an IP55 weather rating and IK08 impact resistance, it performs reliably in harsh Australian conditions. The unit includes built-in RCD protection (30mA AC + 6mA DC), eliminating the need for an external Type B RCD. A CT clamp is also included for load management, helping prevent overloads by adjusting charging based on available supply.

        HP5-07AU-WI-BLSTD-01 Features

        • 7.4kW charging output (32A single-phase): Fast, efficient EV charging for Australian homes.
        • Tethered 5m Type 2 cable: Convenient, ready-to-use solution for most electric vehicles.
        • Smart control via Ohme app or onboard LCD panel: Schedule, monitor, and optimise charging remotely or on-site.
        • IP55 and IK08 rated housing: Built for tough outdoor environments with impact and weather protection.
        • Built-in RCD (30mA AC + 6mA DC): Fully compliant safety without the need for Type B RCDs.

        HP5-07AU-WI-BLSTD-01 FAQ
        Q: How do I connect to the charger?
        A: Through the Ohme app via WiFi, or directly using the charger’s LCD screen and push-button controls.

        Q: Can it charge using my solar system?
        A: Yes, when connected via WiFi, the charger can utilise surplus solar energy through the app settings.

        Q: Is this unit safe for outdoor installation?
        A: Absolutely. It’s rated IP55 for weather resistance and IK08 for impact protection—perfect for exposed areas.

        (HP5-07AU-WI-BLSTD-01)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Order Code HP5-07AU-WI-BLSTD-01 (5m cable)
        Power Rating 7.4kW
        Rated Current 32A
        Nominal Supply 230V/240V AC, 50Hz
        Supply Cable Entry 1m length input cable with 3x6mm² L1, N, PE, and Data
        Overcurrent Protection Not fitted (to be installed separately)
        Residual Current Protection Type A 30mA (AC), 6mA (DC)
        Status Indication 3 colour LED strip (green, blue, red), LCD screen (blue, red)
        Charging Mode Mode 3
        Socket Type Tethered unit with Type 2 plug
        Dimensions (H x W x D) 170mm x 200mm x 100mm
        Unit Weight 4kg (Shipping weight: 5.35kg)
        Mounting Location Wall or post mounted, indoor or outdoor
        Operating Temperature -25°C to 45°C
        Storage Temperature -40°C to 85°C
        Operating Humidity 5 - 95% RH
        Enclosure PC6600, UV Stabilised (f1 UL 746C), Fire Rated (V-0 UL94)
        IP Rating IP55
        Impact Rating IK08
        Finish Black
        Connectivity WiFi (IEEE 802.11b/g/n, 2.4GHz), Bluetooth
        Control Method Buttons on charger or Ohme smartphone app
        Technology Load balancing (CT clamp included), solar compatible via WiFi only
        Upgrades Over-the-air firmware and software updates
        Compliance RCM marked, EESS Registered; complies with multiple IEC/AS/EN standards
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Ohme EV
        SKU HP5-07AU-WI-BLSTD-01
        Package Weight 5.350kg
        Package Width 0.375m
        Package Height 0.115m
        Package Length 0.368m
        View Datasheet
        TYPE VALUE
        Type Charging Station
        Brand Ohme
        Rated Current (A) 32A per phase
        IP Rating IP54/IK08
        Earth Leakage Protection RCD Type A 30 mA with integral 6 mA DC
        Power Rating 7.4kW
        Nominal Supply 240V AC, 50 HZ
        Charging Mode Mode 3
