        Hager EGN200AU | Multi-function Time switch 2 channels Bluetooth control
        $324.50 $295.00 ex. GST
        Video

        Learn more by watching our Hager EGN200AU | Multi-function Time switch 2 channels Bluetooth control video.

        Description

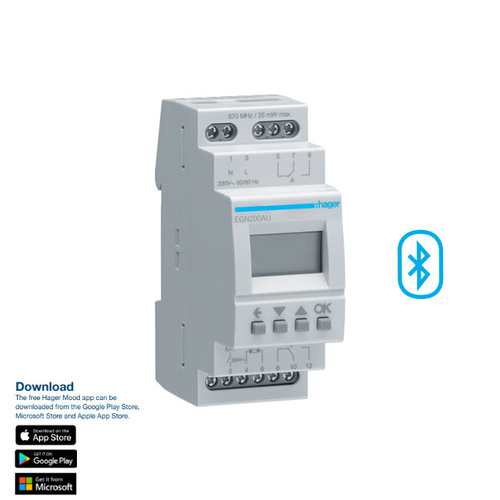

        Hager EGN200AU | Multi-function Time switch 2 channels Bluetooth control

        Yearly time switch, 2 channels, 16A, 2 space units, digital

        • Digital multifunctional time switch to control loads with commands such as on, off, pulse or cycle.
        • Astronomical function that switches connected loads according to the sunrise and sunset times.
        • Programmable via app with Bluetooth interface for easy implementation of exception programs or for saving the switching program (with myHager).
        • Temporary and permanent exception control on the device.
        • The twilight function measures the lighting level via a photocell and switches depending on the measured value.
        • Automatic summer/winter time change.

        Additional Features

        • Integrated Bluetooth connection
        • Program cycles: daily, weekly, yearly
        • 2 changeover outputs
        • With pulse function
        • Programming without voltage supply possible
        • Button lock
        • LC display with lighting
        • Automatic summer/winter time change (astro mode)
        • Screw terminals
        • For mounting on DIN top-hat rail
        • 10 years power reserve

        Technical specifications

        • Operating voltage: 230V (+10% / -15%)
        • Frequency: 50/60 Hz
        • Contact rating: AC1 μ 16A 230 V~
        • Power consumption: 0.35W
        • 230 V incandescent and halogen lamps max.:  2300 W
        • LED lamps:  400 W
        • Fluorescent tubes, compensated // (max. 45 μ F): 400 W
        • Fluorescent tubes, uncompensated, series compensated: 1000 W
        • Compact fluorescent lamps: 400 W
        • Number of function channels: 2
        • Number of contacts per channel: 2
        • Shortest switching time: 1 min
        • Number of switching times for On/Off: 200
        • Power reserve: 10 years
        • Accuracy rate: ± 0.25 s/day
        • Operating temperature: - 5 … 45 °C
        • Conductor cross-section (flexible): 0.2 … 2.5 mm²
        • Conductor cross-section (rigid): 0.2 … 4 mm²
        • Rail-mounted device (RMD) width: 2 units
        • Number of programs: 10
        • Number of steps: 200

        (EGN200AU)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU EGN200AU
        Barcode # 3250618502466
        Shipping Weight 0.2300kg
        Shipping Width 0.062m
        Shipping Height 0.036m
        Shipping Length 0.090m
        Shipping Cubic 0.000201000m3
        TYPE VALUE
        Type Timer
        Brand Hager Electrical
        Additional Feature Bluetooth
        Battery Backup 10 Years
