        Description

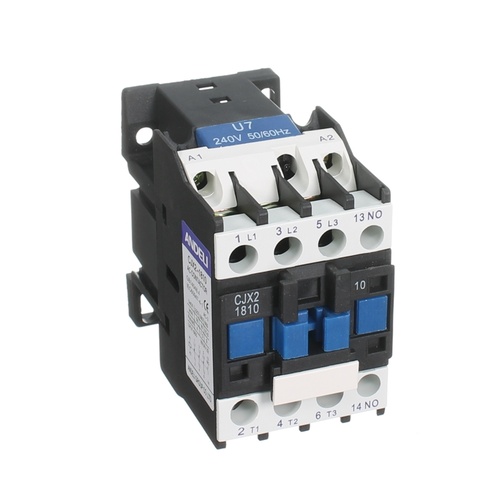

        ANDELI CJX2-D1810-U7 Contactor | 18Amp (AC3) - 32Amp (AC1) | 240V coil

        CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50/60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947- 4-1 stardand.

        Features:

        • Current Ratings: AC-1 32A
        • Current Ratings: AC-3 18A
        • Standard Power Rating: 9kW at 415V 50/60Hz
        • Contacts: 3P+NO
        • Rated Operational Power in AC-3 Pe (kW)
          • ​220/230V : 4kW
          • 415V : 9kW

        (CJX2-D1810-U7)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand
        SKU CJX2-D1810-U7
        Barcode # 9321592167430
        Package Weight 0.330kg
        Package Width 0.080m
        Package Height 0.050m
        Package Length 0.090m
        TYPE VALUE
        Type Contactor
        Brand Andeli
        Rated Current (A) AC-1 32A
        Rated Current (A) AC-3 18A
        Kilowatt Rating (kW) 9kW at 415V 50/60Hz
        Contact Configuration 3P+NO
