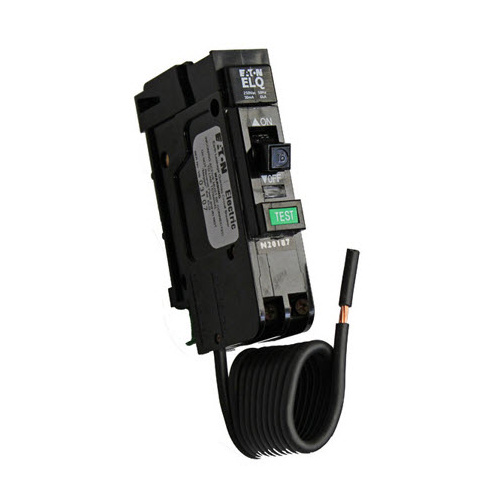

        Eaton ELQ110C3TD | ELQ 10A Earth Leakage Breaker MCB/RCD Combination | 30mA
        $170.44 $154.95 ex. GST
        Description

        Eaton ELQ110C3TD | ELQ 10A Earth Leakage Breaker MCB/RCD Combination | 30mA

        Description:

        The Eaton ELQ110C3TD Earth Leakage Breaker is a single-pole device designed for commercial applications, providing efficient electrical circuit protection. This product uniquely combines an MCB (Miniature Circuit Breaker) and an RCD (Residual Current Device) within a single unit, streamlining protection against overload and short circuits. With a 950mm permanent connected neutral conductor and a rating breaking capacity of 6kArms, it ensures a reliable safeguard against electrical faults.

        Operating at a rated voltage of 240V and a current of 10A, this breaker is engineered to handle surge currents up to 6kA. Its compliance with AS/NZS 3190:2016 and AS/NZS 3111:2009+A1-2, certified by the Australian approval number NSW27675, attests to its quality and safety standards. Designed for DIN Rail mounting, the ELQ110C3TD is an ideal solution for protecting commercial electrical infrastructures.

        Features:

        • Combined MCB/RCD device for comprehensive electrical protection
        • 950mm permanent connected neutral conductor
        • 6kA rating breaking capacity for effective fault current management
        • Conforms to AS/NZS 3190:2016 and AS/NZS 3111:2009+A1-2 standards
        • Australian approval number NSW27675 for verified quality
        • DIN Rail mounting method for easy installation

        FAQ:

        Q: What is the rated fault current for the ELQ110C3TD?
        A: The ELQ110C3TD is rated for a fault current of 30mA, providing sensitive and prompt reaction to electrical anomalies.

        Q: Is the ELQ110C3TD suitable for residential use as well?
        A: Primarily designed for commercial settings, its specifications also allow for residential use, offering versatile protection solutions.

        Q: How does the ELQ110C3TD’s MCB/RCD combination benefit users?
        A: This combination offers dual protection in one compact unit, enhancing safety by instantly disconnecting power in case of overload or earth leakage faults.

        (ELQ110C3TD)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Number of poles (total) 1
        Number of protected poles 1
        Rated voltage 240 V
        Rated current 10 A
        Rated fault current 30
        Surge current capacity 6 kA
        Voltage type AC
        Mounting method DIN Rail
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Eaton
        SKU ELQ110C3TD
