        Eaton ELQ116C3TD-A | ELQ 16A Earth Leakage Breaker MCB/RCD Combination | 30mA
        $164.94 $149.95 ex. GST

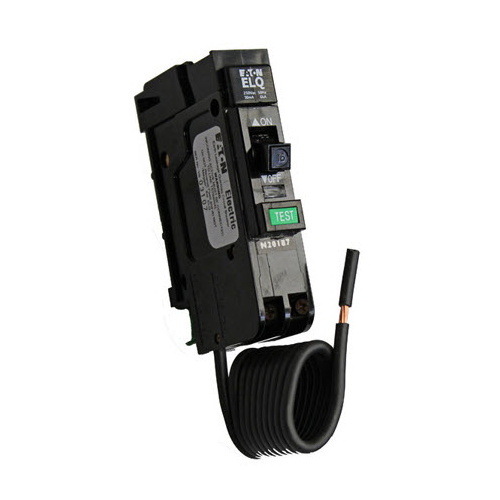

        Eaton ELQ116C3TD-A | ELQ 16A Earth Leakage Breaker MCB/RCD Combination | 30mA


        The Eaton ELQ116C3TD Earth Leakage Breaker is a single-pole device designed for commercial applications, providing efficient electrical circuit protection. This product uniquely combines an MCB (Miniature Circuit Breaker) and an RCD (Residual Current Device) within a single unit, streamlining protection against overload and short circuits. With a 950mm permanent connected neutral conductor and a rating breaking capacity of 6kArms, it ensures a reliable safeguard against electrical faults.

        Operating at a rated voltage of 240V and a current of 16A, this breaker is engineered to handle surge currents up to 6kA. Its compliance with AS/NZS 3190:2016 and AS/NZS 3111:2009+A1-2, certified by the Australian approval number NSW27675, attests to its quality and safety standards. Designed for DIN Rail mounting, the ELQ116C3TD is an ideal solution for protecting commercial electrical infrastructures.


        • Combined MCB/RCD device for comprehensive electrical protection
        • 950mm permanent connected neutral conductor
        • 6kA rating breaking capacity for effective fault current management
        • Conforms to AS/NZS 3190:2016 and AS/NZS 3111:2009+A1-2 standards
        • Australian approval number NSW27675 for verified quality
        • DIN Rail mounting method for easy installation


        Q: What is the rated fault current for the ELQ116C3TD?
        A: The ELQ116C3TD is rated for a fault current of 30mA, providing sensitive and prompt reaction to electrical anomalies.

        Q: Is the ELQ116C3TD suitable for residential use as well?
        A: Primarily designed for commercial settings, its specifications also allow for residential use, offering versatile protection solutions.

        Q: How does the ELQ116C3TD’s MCB/RCD combination benefit users?
        A: This combination offers dual protection in one compact unit, enhancing safety by instantly disconnecting power in case of overload or earth leakage faults.




        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Details
        Number of poles (total) 1
        Number of protected poles 1
        Rated voltage 240 V
        Rated current 16 A
        Rated fault current 30
        Surge current capacity 6 kA
        Voltage type AC
        Mounting method DIN Rail

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Eaton
        SKU ELQ116C3TD-A
