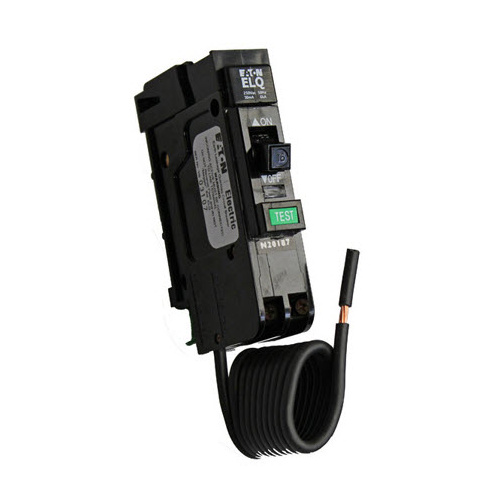

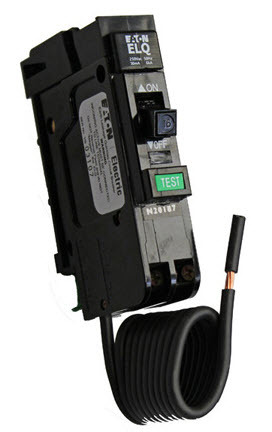

Eaton ELQ120C3TD | ELQ 20A Earth Leakage Breaker MCB/RCD Combination | 30mA
The Eaton ELQ120C3TD is a 20A MCB/RCD combination breaker, providing comprehensive protection against both overloads and earth leakage. Designed for residential and commercial electrical systems, this device combines a 20A Miniature Circuit Breaker (MCB) with a Residual Current Device (RCD) that has a 30mA sensitivity. The breaker features a 6kA short circuit breaking capacity and a permanently connected 950mm neutral conductor for reliable performance.
Certified to AS/NZS 3190 and AS/NZS 3111 standards, this Type A RCD is sensitive to both residual AC and pulsating DC currents. The yellow test button makes it easy to identify the device, while the trip indication window allows for quick status checks. Additionally, the test button is designed to prevent accidental pushing, ensuring safety during operation.
ELQ120C3TD Features:
- 20A MCB/RCD Combination: Provides protection from overload and earth leakage in a single device.
- 30mA Sensitivity: Detects small earth leakages to prevent electric shocks and fires.
- 6kA Breaking Capacity: Designed for high-performance protection in residential and commercial environments.
- Type A RCD: Sensitive to residual AC and pulsating DC currents for enhanced safety.
- Yellow Test Button: Easy identification and operation of the test function.
- Trip Indication Window: Visual indication for easy monitoring of the device status.
- Accidental Push Prevention Design: Test button designed to prevent accidental activation.
ELQ120C3TD FAQ:
Q: What type of RCD is this device?
A: The Eaton ELQ120C3TD is a Type A RCD, sensitive to both residual AC and pulsating DC currents.
Q: What is the breaking capacity of this breaker?
A: The device has a 6kA breaking capacity.
Q: How can I test the RCD?
A: The device is equipped with a yellow test button, allowing you to easily test the RCD function. The button is designed to prevent accidental pressing.
Q: Does this breaker comply with Australian standards?
A: Yes, the breaker complies with AS/NZS 3190 and AS/NZS 3111 standards and has an Australian approval number (NSW27675).
