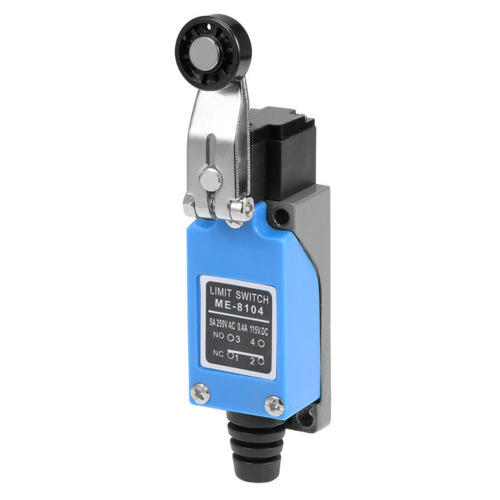

        Andeli LS-8104 | Limit Switch With Roller Arm 5Amp 250Vac

        Specification:

        • Actuator Type: Plastic Wheel Roller Lever Type
        • Rated Voltage: 5A 250V AC / 0.4A 115V DC
        • Contact Configuration: 1NC+1NO
        • Body Size: 64 x 28 x 25mm (L*W*T)
        • Mounting Hole Size: M5
        • Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

        The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.

        These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

        Operating Characteristics:

        • OF max.: 700g (6.86N)
        • RF min.: 60g (0.59N)
        • PT max.: 30°
        • OT min.: 60°
        • MD max.: 15°
        • TT: 90°

        Description:

        • Double circuit limit switch with built-in double-reed mechanism.
        • Zine alloy and intensive plastic shell, strong and highly rigid construction.
        • Smooth operation with higher OT.
        • Brass contacts with 30% silver contained. Easy-to-wire design.
        • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.

        (LS-8104)
