    Description

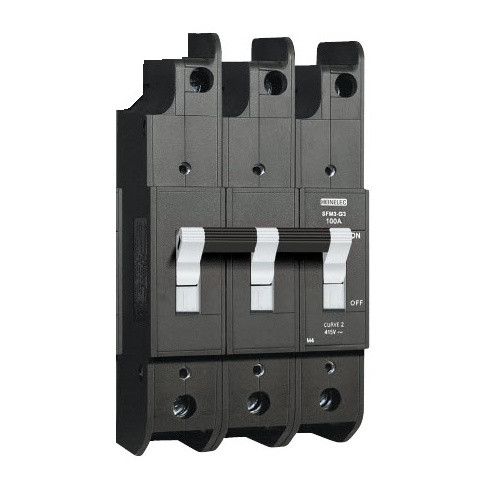

    Heinemann SFM3-G3-25-2 | 25A 3P Circuit Breaker

    FEATURES

    • AS 3111 approved (Approval No. N15215)
    • Available in triple pole units
    • Precision circuit breaker utilizing hydraulic magnetic technology results in accurate temperature independent tripping
    • IP2X “finger proof” line and load box (tunnel) type terminals can accommodate copper cables up to 50mm2
    • Clear positive identification for ON/OFF (I/O) provided
    • Shunt trip provides for remote tripping
    • Auxiliary switch provides for remote indication

    TECHNICAL DATA PRODUCT TYPE: SFM SERIES

    • Number of poles: 3 pole.
    • Standards: AS 3111
    • Approval Number: N15215
    • Standard Ampere Rating: 10,16,20,25,32,40,50,63,80,100A
    • Rated Voltage (Un):  3 pole 415V
    • Frequency: 50/60Hz for AC forms
    • Rated Breaking Capacity (kA): 6kA at 415/240V AC
    • Rated Impulse Withstand Voltage (Uimp): 6kV
    • Time Current Characteristics: Curve 2 (Medium)
    • Operating temperature: -10 to +60ºC
    • Storage temperature: -20 to +60ºC
    • Degree of Protection: IP2X terminals
    • Rated Service Life (AC): 6000 electrical operations 4000 mechanical operations
    • Humidity: To Mil-Std-202G Method 103B test condition A
    • Shock: Single pole conforms to 50G shock at 6ms, when tested to Mil-Std-202G Method 213B test condition 1
    • Vibration: Single pole conforms to Mil-Std-202G
    • Method 204D test condition A
    • It also conforms to IEC577, which is applicable to rolling stock Mounting: Surface, cliptray or front screws (M4)
    • Terminal connections: Front connected box (tunnel) type main terminal suitable for up to 50mm2 copper conductors (4Nm torque)
    • Front connected screw type terminal suitable for up to 50mm2 lugs (4Nm torque). Back/Rear connected stud type terminal fitted with M6 studs (2.5Nm torque)
    • Handle colour: White – curve 2/3 circuit breaker AC

    (SFM3-G3-25-2)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Heinemann
    SKU SFM3-G3-25-2
    Barcode # 6009522909864
    Package Weight 0.788kg
    Package Width 0.070m
    Package Height 0.080m
    Package Length 0.150m
