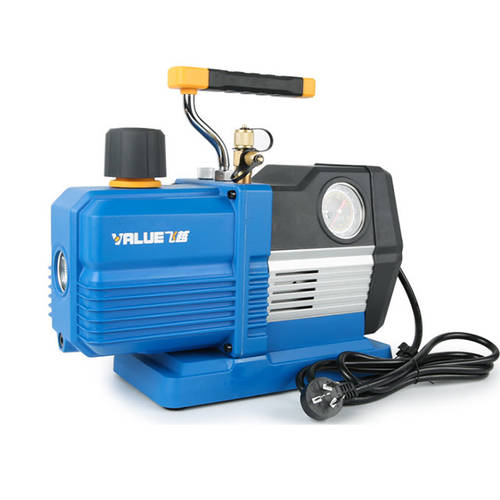

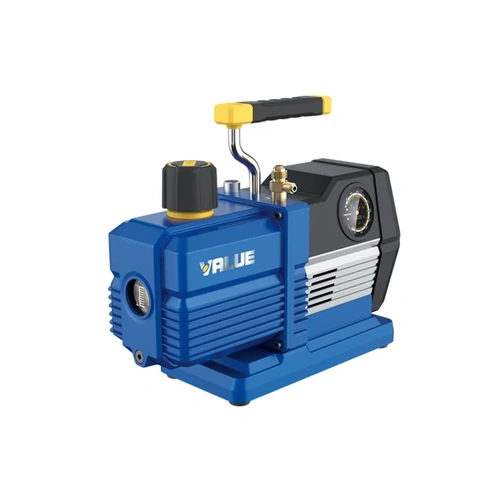

    VALUE VRP-6DV | Dual Stage 6.0 CFM DC Vacuum Pump R32 & R410

    The VALUE VRP-6DV is a compact 6.0CFM dual-stage vacuum pump engineered for HVAC and refrigeration applications using HFC and HFO refrigerants such as R32 and R1234yf. Designed with safety and portability in mind, it delivers efficient vacuum performance with a non-sparking motor for enhanced worksite safety.

    Equipped with a built-in vacuum gauge for real-time monitoring, a solenoid valve to prevent oil backflow, and a gas ballast valve for moisture protection, this pump is ideal for professional HVAC/R technicians. The large oil sight glass aids easy maintenance, while its lightweight build makes it perfect for field service use.

    VRP-6DV Features

    • 6.0 CFM Dual Stage: Delivers strong performance for HVAC and refrigeration tasks.
    • Built-in Vacuum Gauge: Allows direct monitoring of vacuum levels during operation.
    • Solenoid Valve: Protects against oil backflow when the power supply is interrupted.
    • Non-Sparking Design: Safe for use with R32, R1234yf, and similar refrigerants.
    • Compact & Lightweight: Ideal for service technicians needing portable gear.
    • Oil Sight Glass & Gas Ballast: Simplifies oil checks and helps prevent moisture contamination.

    VRP-6DV FAQ

    Q: Is this pump suitable for R32 refrigerant?
    A: Yes, it is compatible with HFC and HFO refrigerants including R32 and R1234yf.

    Q: Does it include a built-in vacuum gauge?
    A: Yes, the vacuum gauge is integrated for easy pressure monitoring.

    Q: What does the gas ballast valve do?
    A: It helps protect the pump oil from moisture contamination.

    (VRP-6DV)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Flow 170 l/min; 6 CFM
    Vacuum Level 0.2 Pa / 15 microns
    Motor Power 0.55 kW (0.75 HP)
    Compression Stages 2
    Power Supply 230 V
    Frequency 50 - 60 Hz
    Power Cord Length 200 cm
    Motor Speed 2000 rpm at 50 Hz
    Noise Level 68 dB
    Inlet Connection 1/4" & 3/8" SAE
    Oil Capacity 0.6 L
    Oil Type Mineral, viscosity 68 mm²/s
    Dimensions (L×W×H) 346 × 145 × 302 mm
    Weight 11.5 kg
    Protection Class IP44
    Operating Temperature 5°C to 40°C
    Storage Temperature -20°C to 60°C
    Minimum Oil Temperature for Startup 5°C
    Shut-Off Valve Yes
    Exhaust Plug Thread M33 × 1.5 mm
    Vacuum Gauge Internal mechanic, 63 mm, Accuracy class 1.6, Units KPa / mbar
    Motor Type Inverter
    Packaging Cardboard Box
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Value
    SKU VRP-6DV
    Model # VRP-6DV
    Package Weight 13.450kg
    Package Width 0.135m
    Package Height 0.302m
    Package Length 0.346m
    TYPE VALUE
    Type Vacuum Pump
    Brand Value
