Description:

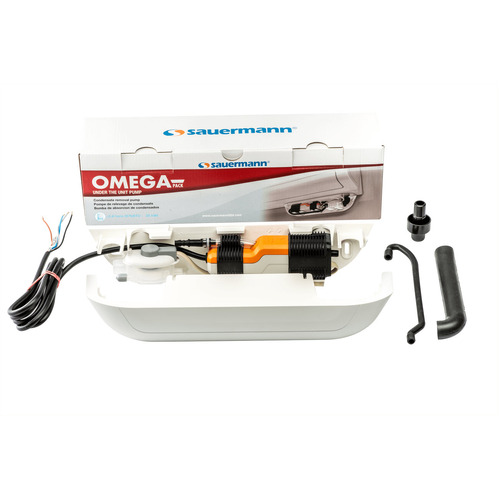

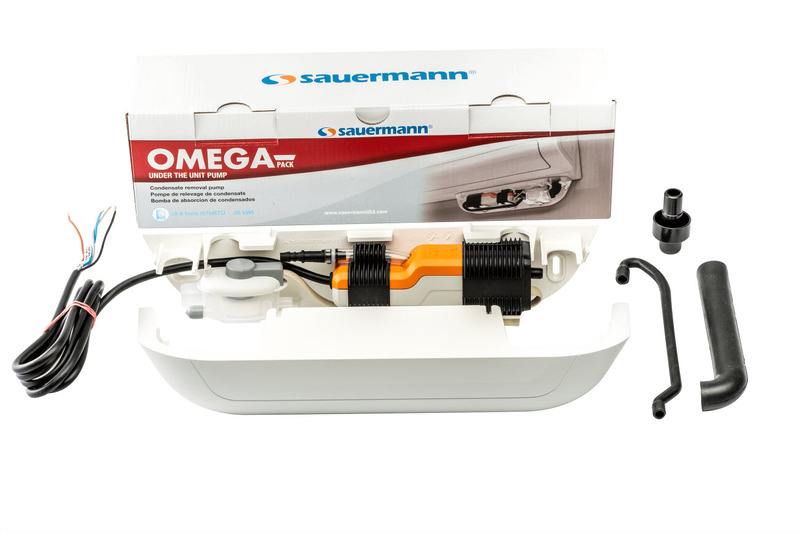

The Sauermann OmegaPack Mini Condensate Pump represents the pinnacle of innovation in condensate removal solutions, designed specifically for under unit mounting in air conditioning systems. This pump boasts a maximum flow rate of 20 l/h, making it capable of handling significant condensate volumes with ease. Its maximum discharge head of 10m and pressure of 14m, combined with a suction head of 3m, ensure efficient operation across various installation conditions.
Operating with double insulation, the operation conditions are optimized for continuous duty, with cycle times designed to maintain the pump's efficiency and longevity. Protected by IPX2, it's well-equipped to handle the moist environments typical of condensate removal applications.
Coloured in RAL 9010 Pure White, the OmegaPack seamlessly integrates into any space, maintaining an aesthetic coherence with most air conditioning units. Its compact and sleek design is not just about looks; it allows for left or right underside mounting, providing unparalleled versatility in installation. The ultra-quiet operation of the onboard Si-20 pump ensures that it works effectively without disrupting the tranquillity of your space.
Features:
FAQ:
Q: How does the OmegaPack manage noise?
A: It features ultra-quiet operation, ensuring minimal disruption.
Q: Is the pump easy to install?
A: Yes, its compact design allows for flexible under-unit mounting on either side, making installation straightforward.
Q: Can the Si-20 pump be removed?
A: Yes, the Si-20 is designed for easy removal, offering additional versatility in mounting options.
The Sauermann OmegaPack is the perfect choice for those seeking a high-performance, quiet, and versatile condensate pump solution.
(OMEGAPACK)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Max. Flow Rate | 20 l/h |
Max. Suction Head | 3 m |
Max. Discharge Head | 10 m - flow rate = 4 l/h |
Max Pressure | 14 m - flow rate = 0 l/h |
Sound Level at 1m | ≤ 22 dBA (EN ISO 3744) |
Sound Level in Application at 1m | ≤ 25 dBA |
Mains Supply | 230 V~ 50 Hz - 14 W |
Insulation Class | Double Insulation |
Detection Levels | On: 16 mm; Off: 11 mm; Safety: 19 mm |
Safety Switch | NF 8 A resistive – 250 V |
Thermal Protection | 115 °C (auto-reset) |
Max. Condensate Temperature | 35 °C |
Operating Conditions | 100% - Continuous Duty |
Protection | IPX2 |
Safety Standards | CE et EAC |
RoHS Directive | Compliant |
WEEE Directive | Compliant |
