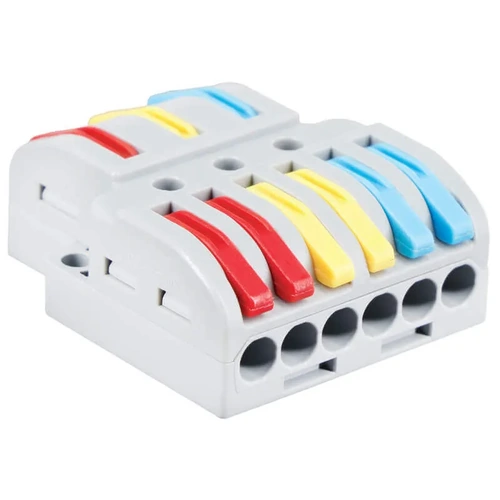

        Major Tech LT-633 | 3-Pole Splitter Connector Blocks | Jar of 15

        The Major Tech LT-633 is a 3-pole parallel splitter block designed for clean, fast multi-wire distribution. Each pole can connect up to 4 conductors, making it perfect for power branching in lighting, control, and switchboard systems.

        With a screwless, tool-free lever design, these connectors streamline installation and save time during rewiring or fault-finding. Rated at 32A / 450V with 4kV insulation resistance, they meet ICE standards and come in a jar of 15 for easy access on-site. Coloured levers (red, yellow, blue) help identify phases or functions quickly.

        LT-633 Features

        • 3-Pole Connector: Joins up to 4 wires per pole for multi-point power splits
        • Tool-Free Lever Clamps: No screwdriver needed, just lift, insert, clamp
        • High Electrical Rating: 32A, 450V with 4kV insulation resistance
        • Colour-Coded Levers: Easy phase or load identification (red, yellow, blue)
        • Jar of 15 Units: Supplied in bulk for quick access during jobs
        • ICE Standards Approved: Built to meet modern compliance and safety

        LT-633 FAQ

        Q: How many wires can each block connect?
        A: Each pole supports 4 parallel conductors, totalling 12 wires per block.

        Q: Can the connectors be reused?
        A: Yes, the levers are designed for multiple reuse cycles without damage.

        Q: What applications is it best suited for?
        A: Ideal for switchboards, junction boxes, or any installation needing tidy and fast multi-wire branching.

        (LT-633B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Application Splitter
        Pole 3
        Rated Current 32A
        Rated Voltage 450V
        Voltage Resistance 4kV
        Strip Length 11mm to 12mm
        Dimensions 33.3 × 39.3 × 14.3mm
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU LT-633B
        Model # LT-633B
        Barcode # 6008229041518
        Package Weight 0.300kg
        Package Width 0.090m
        Package Height 0.125m
        Package Length 0.090m
        TYPE VALUE
        Type Electrical Accessories
        Colour Grey
        Nominal Voltage 450V
        Dimensions 33.3 x 39.3 x 14.3mm
        Rated Current 32A
        Connection points 8
