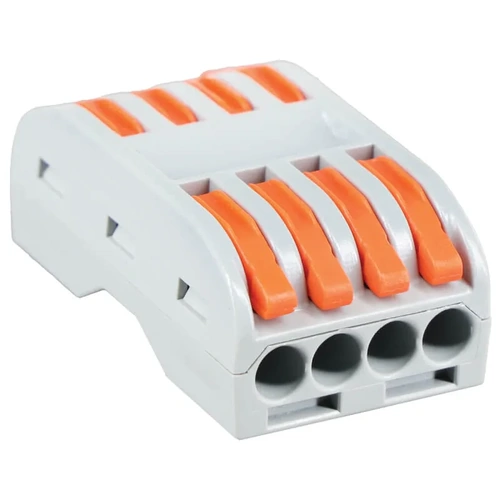

The Major Tech PCT-224B is a 2.5mm2 four pole interjoining connector block, supplied in a jar of 25. The PCT-224B uses a screwless clamping terminal, so a stripped conductor pushes home and is held without a screwdriver, then releases for reuse. It is rated 450V and 32A with 4kV voltage resistance, and measures 23.10 by 39.30 by 14.30mm.
A screw terminal is only as sound as the last person to tighten it. A screw relaxed by vibration or thermal cycling becomes the loose joint that arcs behind a fitting years afterwards. The PCT-224B applies consistent clamping pressure to every conductor with no screw requiring verification, across four poles rated 450V and 32A.
Stripping to 11 to 12mm and pushing the conductor home consumes seconds against tightening a screw terminal on every core. The connector releases and reuses, so a maintenance alteration does not consume a fresh block. A jar of 25 keeps the vehicle stocked, and the compact 23mm by 39mm body occupies enclosures where a terminal strip will not fit.
The PCT-224B is rated for conductors to 2.5mm2 at 450V and 32A, so larger conductors and higher ratings need a different connector. Strip length matters: under-stripping leaves insulation in the clamp, and over-stripping leaves bare copper outside the housing. A connector block is not an enclosure, so the joint still requires a box or fitting around it, and installation is work for a licensed electrician.
(PCT-224B)
It connects up to four wires securely without screws or tools, making wire joins quick, tidy, and safe.

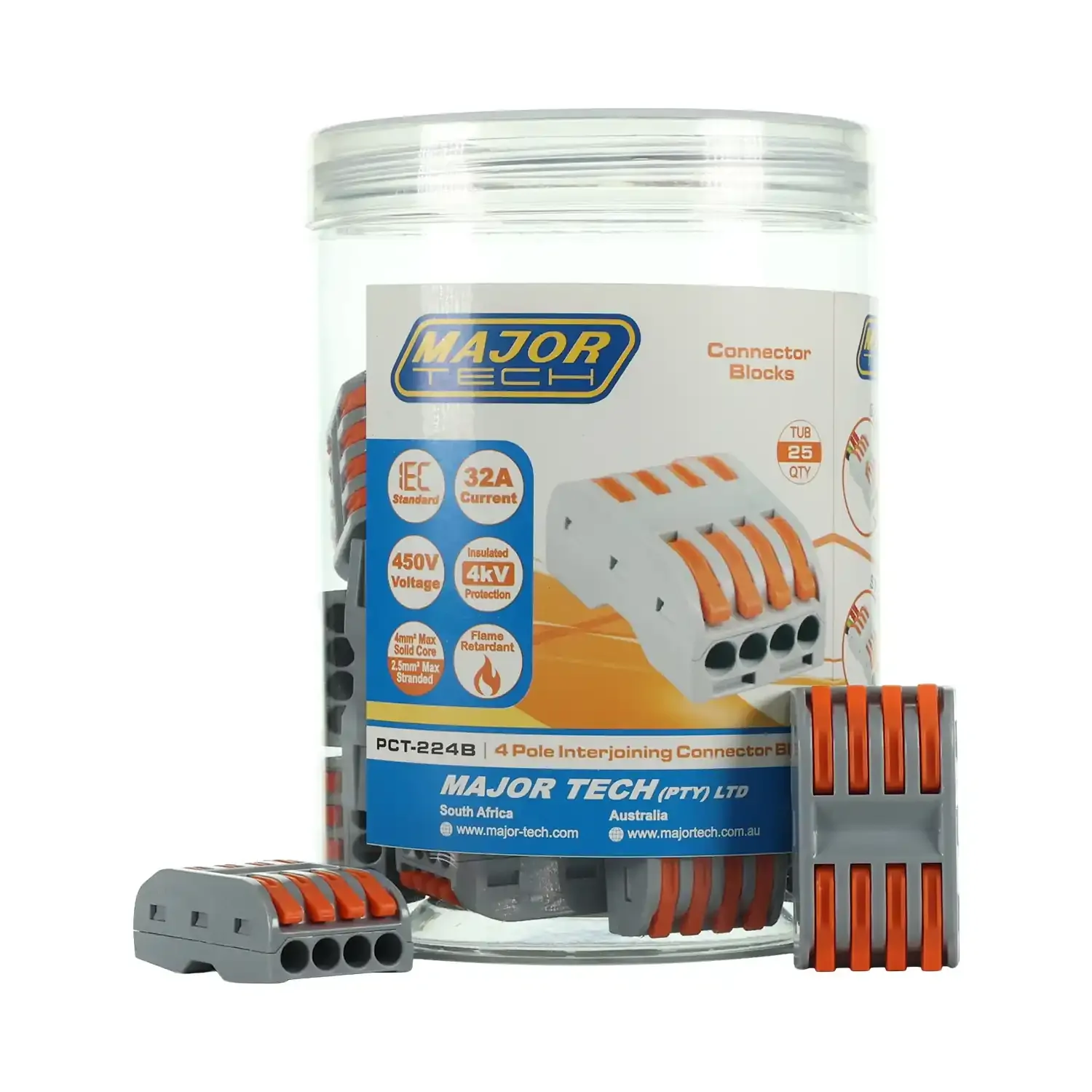

Each jar contains 25 connectors, making it easy to keep stocked for ongoing jobs.
Yes, the screwless clamp lets you make a solid connection in seconds, just strip the wire and push it in.
Yes, they can be released and reused during maintenance or when adjusting wiring layouts.
Yes, they’re rated 450V / 32A and designed for licensed electricians to use across all types of installations.
They save time, give consistent pressure on every joint, and remove the risk of loose screws.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Application | Inline / Interjoining |
| Pole | 4 |
| Rated Current | 32A |
| Rated Voltage | 450V |
| Voltage Resistance | 4kV |
| Strip Length | 11mm to 12mm |
| Dimensions | 23.10 x 39.30 x 14.30mm |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | PCT-224B |
| Model # | PCT-224B |
| Barcode # | 6008229041464 |
| Package Weight | 0.330kg |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Colour | Grey |
| Nominal Voltage | 450V |
| Dimensions | 23.10 x 39.30 x 14.30mm |
| Rated Current | 32A |
| Connection points | 4 |
