Learn more by watching our Wago 207-5485-316-000 | Multicore Cable Repair Set 8-24mm² With Heat Shrink and Splicing Connectors video.

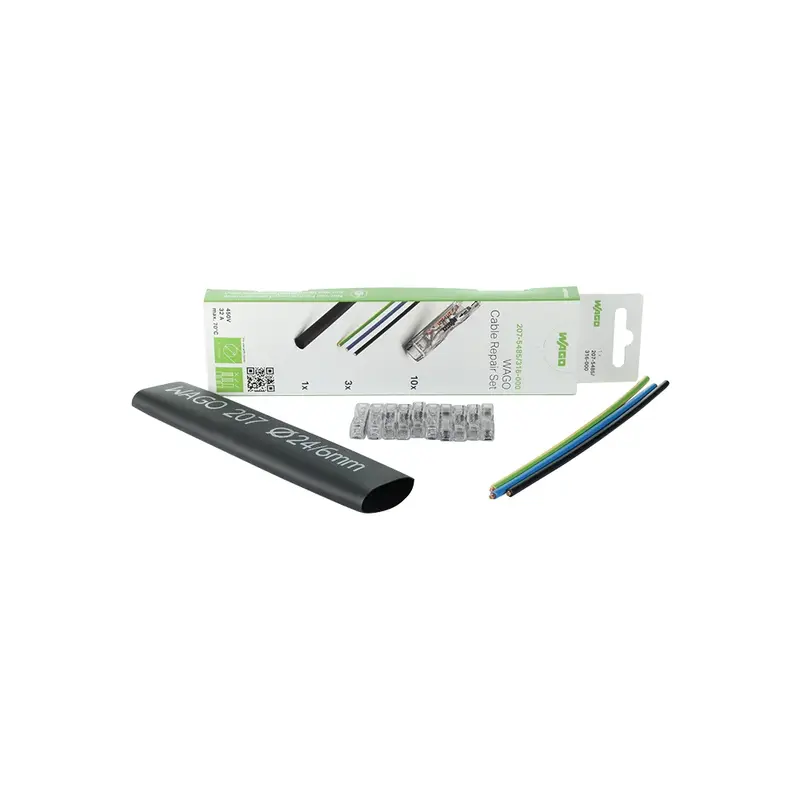

The Wago 207-5485-316-000 Multicore Cable Repair Set offers a dependable solution for fixing damaged cables in fixed installations. Designed for multicore cables with diameters from 8mm to 24mm², it includes heat shrink tubing and 10 inline splicing connectors for safe and efficient repairs. The glue-sealed, medium-walled tubing makes it perfect for environments requiring sturdy, insulated cable repairs. However, it is not suitable for underwater or underground applications due to the lack of longitudinal water tightness.
The kit comes with H07 V-U conductors in black, green/yellow, and blue, as well as Wago’s PUSH WIRE® Inline Splicing Connectors, which ensure secure connections for both solid and stranded conductors. The heat shrink tubing, with a 4:1 shrink ratio, provides a strong seal that insulates and protects the repaired area.
Q: What cable sizes can this kit repair?
A: This set is designed for multicore cables with diameters from 8mm to 24mm².
Q: Can this repair set be used underground?
A: No, it is not suitable for underground or underwater use, as it does not provide longitudinal water tightness.
Q: What is the shrink factor of the heat shrink tubing?
A: The tubing has a 4:1 shrink factor, ensuring a secure, insulated seal over damaged cables.
Q: What types of conductors can the splicing connectors handle?
A: The included Wago 2773-2401 connectors are compatible with both solid and stranded conductors up to 4mm².
(207-5485-316-000)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Nominal Voltage | 450V |
| Rated Surge Voltage | 4kV |
| Rated Current | 32A |
| Connection Solid Conductor | 0.75~4mm² / 18~12AWG |
| Connection Stranded Conductor | 1.5~4mm² |
| Connection Strip Length | 10~11mm |
| Insulation Material | Polyolefin |
| Diameter Before Shrink | 24mm |
| Diameter After Shrink | 6mm |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 207-5485-316-000 |
| Barcode # | 4066966371246 |
| Package Weight | 0.070kg |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Brand | Wago |
| Nominal Voltage | 450V |
| Rated Current | 32A |
| Cable Diameter | 8-24mm |
| Rated Surge Voltage | 4kV |
| Stranded Conductor | 1.5-4mm² |
| Solid Connductor | 0.75-4mm² |
