        Description

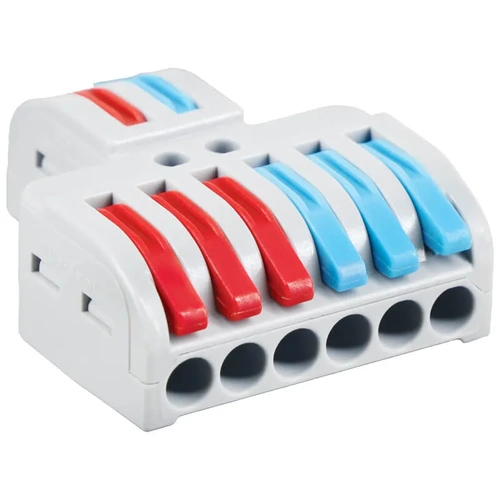

        Major Tech LT-623B | 2-Pole Splitter Connector Blocks | Jar of 20

        The Major Tech LT-623B is a 2-pole splitter connector block that allows for quick and secure parallel connections across four conductors per pole. Supplied in a jar of 20, these compact, colour-coded connectors are ideal for branching or splitting power feeds across multiple circuits in switchboards or junction boxes.

        Designed with screwless terminals, they ensure faster install times and strong contact retention without tools. Rated at 32A and 450V with a 4kV voltage resistance, the LT-623B is ICE Standard Approved and suited for demanding electrical environments.

        LT-623B Features

        • 2-Pole Splitter Connector: Connects four conductors per side in parallel
        • Screwless Design: Tool-free, secure wire clamping saves installation time
        • High Electrical Rating: 32A current / 450V voltage rating with 4kV resistance

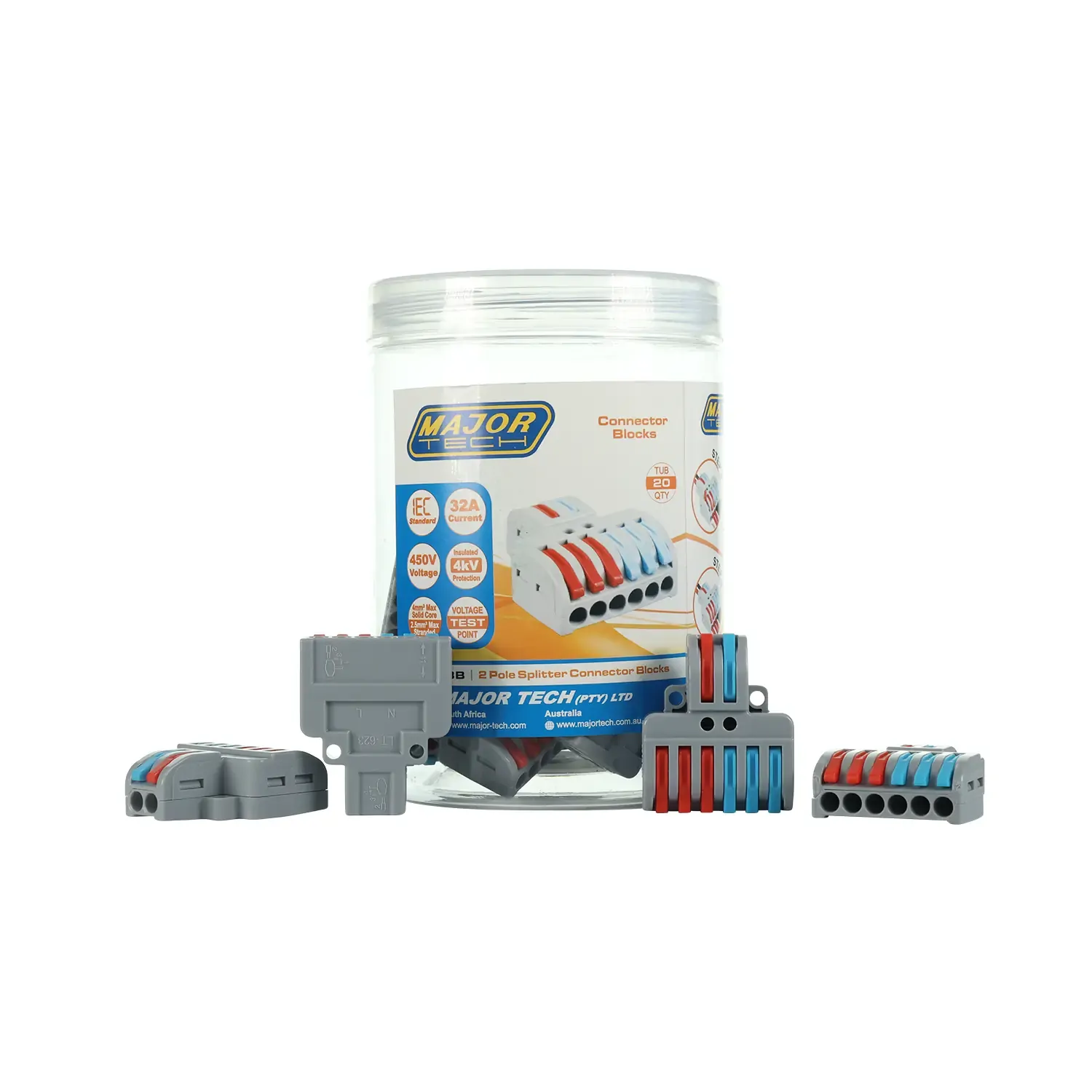

        • Jar of 20 Units: Supplied in bulk for convenience and easy access on-site
        • ICE Standard Approved: Complies with key industry safety and performance standards
        • Compact Build: Colour-coded levers for quick identification and neat wiring

        LT-623B FAQ

        Q: How many wires can each block connect?
        A: Each side allows for four conductors, enabling multiple outputs from a single input.

        Q: Is it reusable?
        A: Yes, the screwless levers allow for safe and repeated use without damage.

        Q: What applications suit the LT-623B best?
        A: It’s perfect for multi-point power distribution in lighting, control, or switchboard installs.

        (LT-623B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Application Splitter
        Pole 2
        Rated Current 32A
        Rated Voltage 450V
        Voltage Resistance 4kV
        Strip Length 11mm to 12mm
        Dimensions 33.3 × 39.3 × 14.3mm
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU LT-623B
        Model # LT-623B
        Barcode # 6008229041501
        Package Weight 0.300kg
        Package Width 0.090m
        Package Height 0.125m
        Package Length 0.090m
        TYPE VALUE
        Type Electrical Accessories
        Colour Grey
        Nominal Voltage 450V
        Dimensions 33.3 x 39.3 x 14.3mm
        Rated Current 32A
        Connection points 8
