Description:

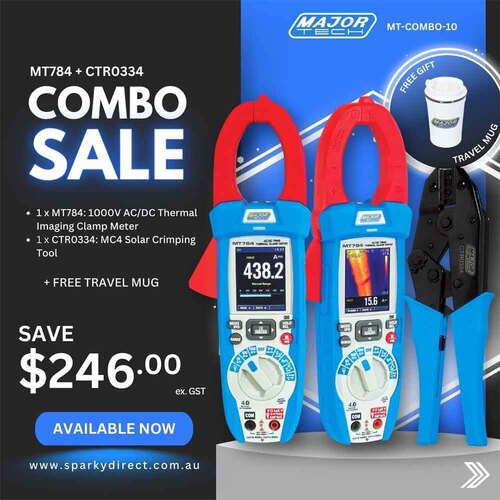

The Major Tech MT-COMBO-10 is an exceptional bundle designed for professional electricians, especially those working in solar panel installation and maintenance. This set includes the MT784 Thermal Imaging Clamp Meter, the CTR0334 Solar Crimper, and an MTCFM1 Travel Mug, combining precision, efficiency, and convenience.
The MT784 is a versatile clamp meter that combines traditional electrical measurement capabilities with advanced thermal imaging. It can handle 1000A AC/DC and voltages up to 1500V DC and 1000V AC. Features include a 6000 count 2.4” TFT colour LCD, an Ø37mm cable clamp size, and an 80x80 pixel thermal imager with a frequency of up to 50Hz. It measures resistance, capacitance, frequency, and temperature, offering detailed insights into circuits' electrical and thermal characteristics. Additional features like INRUSH Current Measurement, NCV detection, and a built-in flashlight enhance its utility and safety.
Designed specifically for creating secure and reliable connections in solar panel PV systems, this tool accommodates various terminal sizes (2.5mm², 4.0mm², 6mm²). It features a ratchet mechanism with pressure adjustment for precision and an automatic release with a manual override option for ease of use. The drop-forged jaw ensures durability and professional quality and is suitable for left- and right-handed operation.
As a bonus, the kit includes a travel mug, perfect for professionals on the go. The mug lets you keep your drinks hot or cold as you move between jobsites or during long hours of work.
FAQ:
Q: What are the primary applications of the MT784 Clamp Meter?
A: The MT784 is ideal for both standard electrical measurements and thermal diagnostics in complex systems, including industrial applications and solar power setups.
Q: How does the thermal imaging function of the MT784 enhance electrical inspections?
A: Thermal imaging allows for the detection of hot spots and potential points of failure in electrical systems, providing a non-invasive method to monitor and diagnose issues.
Q: Can the CTR0334 Solar Crimper be used for other types of wiring besides solar PV?
A: While optimized for solar PV cable terminals, its versatile design and adjustable pressure settings allow it to be used effectively on a variety of other cable types and sizes.
(MT-COMBO-10)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
MT784 Specifications | Range | Accuracy |
---|---|---|
Field of View | 21° x 21° / 0.5m | |
Spatial Resolution | 2.53mrad | |
Thermal Sensitivity | <0.1°C at 30°C / 100mk | |
Image Frequency | 50Hz | |
IR Resolution | 80 x 80 Pixels | |
Display | 2.4" TFT Colour LCD, 240 x 320 pixels | |
Thermal Temperature Range | -20°C to 260°C | ±(3.0% +3°C) |
Spot | Center Spot | |
Automatic Detection | Hot Point or Cold Point | |
Emissivity Correction | Variable 0.01 to 0.99 in 0.01 steps | |
Colour Palette | Iron/Rainbow/Grey/Grey Inverted/Feather | |
Focus Mode | Focus Free | |
Focal Length | 7.5mm | |
Spectral Range | 8 - 14µm | |
Data Communication Interface | Bluetooth BLE | |
Jaw Size | 37mm | |
DC Current | 60.00A - 1000A | ±(2.0% +8) |
AC Current | 60.00A - 1000A | ±(2.5% +5) |
Flexible Coil Current | 30.00A - 3000A | ±(3.0% +5) |
DC Voltage | 600.0mV - 1500V | ±(0.5% +5) |
AC Voltage | 6.00V - 1000V | ±(1.2% +5) |
LowZ AC Voltage | 6.00V - 300V | ±(3.0% +40) |
AC+DC TRMS Voltage | 6.00V - 1000V | ±(2.5% +20) |
LowZ AC+DC Voltage | 6.00V - 300V | ±(3.5% +40) |
Resistance | 600.0Ω - 60MΩ | ±(0.8% +5) |
Frequency | 60.00Hz - 10.00kHz | ±(0.2% +5) |
Capacitance | 60.00nF - 100.0mF | ±(3.0% +8) |
K-Type Temperature | -40°C to 1000°C | ±(1.5% +3°C) |
Duty Cycle | 10.0% to 90% | ±(1.2% +8) |
Size | 270 x 95 x 42mm | |
Weight | 550g | |
CTR0334 Specifications | Details | |
Terminal Sizes | 2.5mm²,4.0mm²,6mm² | |
Length | 250mm | |
Head | 38mm | |
Handle | 210mm |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT-COMBO-10 |
TYPE | VALUE |
---|---|
Brand | Major Tech |
Combo | MT784 + CTR0334 + Free Travel Mug |
