Description:

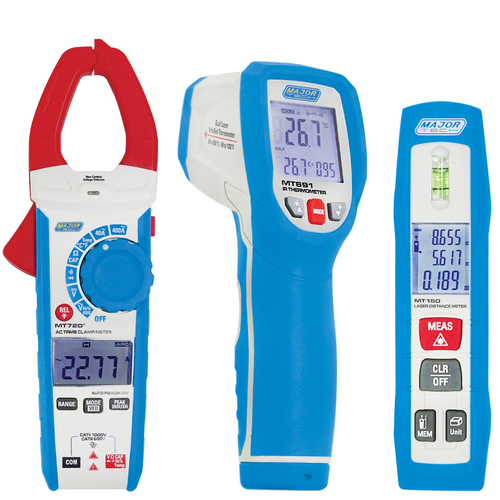

The Major Tech MTCK4 HVAC Combo Kit is a meticulously assembled toolkit designed to provide HVAC professionals with the essential instruments for various tasks. This kit includes the MT723 Clamp Meter, MT691 Infrared Thermometer, and MT150 Laser Distance Meter, each tailored to enhance efficiency and accuracy in HVAC system installation, troubleshooting, and maintenance.
The MT723 Clamp Meter boasts a robust 4000-count backlit LCD, a wide clamp size, and versatile measurement capabilities, including voltage, capacitance, and temperature. It also has specialized functions like INRUSH Current Measurement and Non-Contact Voltage Detection. Its ergonomic design facilitates one-hand operation, which is crucial in tight spaces.
Accompanying the clamp meter, the MT150 Laser Distance Meter offers high precision and Bluetooth connectivity for easy data transfer. It supports measurements up to 50 meters and has advanced features like area and volume calculations and Pythagorean mode for indirect measurements. Its IP54 rating ensures durability in challenging environments.
Completing the kit, the MT691 Infrared Thermometer provides rapid, accurate temperature readings from -50°C to +650°C. It has adjustable emissivity and dual laser sighting for pinpoint accuracy. It's rugged, tested for drops up to two meters, and features an IP54 rating for dust and water resistance.
MT723 Clamp Meter:
MT691 Infrared Thermometer:
MT150 Laser Distance Meter:
FAQ:
Q: What are the primary uses of the MTCK4 HVAC Combo Kit?
A: The kit is ideal for HVAC professionals who install, troubleshoot, and maintain HVAC systems.
Q: Can the MT150 Laser Distance Meter be used outdoors?
A: It is IP54 rated for dust and water resistance, suitable for indoor and outdoor applications.
Q: How accurate is the MT691 Infrared Thermometer?
A: It offers a high accuracy with a resolution of 0.1°C and a quick response time of 150ms.
(MTCK4)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
MT723 Clamp Meter | Range | Accuracy |
---|---|---|
DC Current | 40.00A - 400A | ±(2.0% +8) |
AC Current | 40.00A - 400A | ±(2.0% +8) |
DC Voltage | 4.000V – 1000V | ±(1.0% +3) |
AC Voltage | 4.000V – 1000V | ±(1.2% +5) |
Resistance | 400.0Ω – 40MΩ | ±(1.5% +2) |
Frequency | 10Hz – 100kHz | ±(1.0% +5) |
Capacitance | 99.00nF – 100mF | ±(3.0% +5) |
Temperature | -20⁰C – 1000⁰C | ±(3.0%+3⁰C) |
Duty Cycle | 20.0% to 80% | ±(1.2% +10) |
Size | 220 x 80 x 39mm | |
Weight | 305gm | |
MT691 Thermometer | Range | Accuracy |
Infrared Temperature Range | -50⁰C to +650⁰C | ±(1.0% +1⁰C) |
Resolution | 0.1⁰C | |
Distance Spot Ratio | 12:1 | |
Response Time | 150ms | |
Emissivity | Digitally Adjustable from 0.10 to 1.0 | |
MIN/MAX/AVG/DIF Display | Yes | |
Hi/Lo Alarm | Yes | |
Overrange Indication | Yes | |
Size | 170 x 50 x 85mm | |
Weight | 238g | |
MT150 Laser Distance Meter | Range | |
Range | 0.05 to 50m | |
Measurement units | m, in & ft | |
Laser class | Class II | |
Laser type | 635nm, less than 1mW | |
IP Grade | IP54 | |
Size | 135 x 33 x 24mm | |
Weight | 80g |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MTCK4 |
TYPE | VALUE |
---|---|
Type | HVAC Kit |
Brand | Major Tech |
Kit Includes | MT723, MT691, MT150 |
