Learn more by watching our Major Tech MTC25 | Data Cable Mapper 305m video.

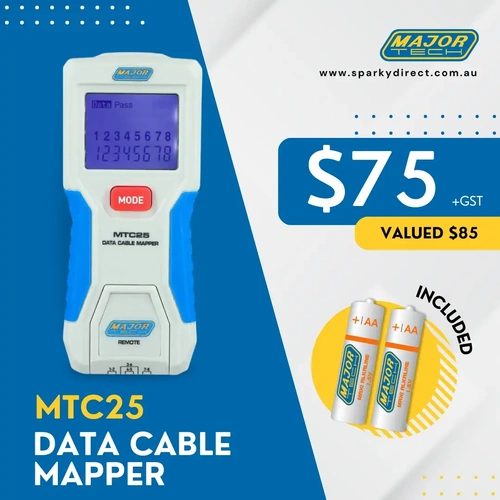

The Major Tech MTC25 is a professional-grade data cable tester designed to map and verify RJ45-terminated cables with ease. It works with shielded and unshielded Cat 3 through Cat 7a cables, testing up to 305 meters. Whether you're checking for wiring faults, split pairs, shorts, opens, or miswires, this tester helps you troubleshoot quickly and accurately.
The MTC25 features a backlit LCD for clear visual feedback, making it easy to read in any lighting condition. It also includes a built-in tone generator with three distinct tones to help locate cables in complex wiring setups. A detachable remote terminator allows for long-distance testing, and the Pass/Fail function provides instant confirmation of wiring accuracy. Running on two AAA batteries, this portable tester is a must-have for network installers and technicians.
Q: What types of cables can this tester check?
A: It supports shielded and unshielded Cat 3, Cat 5, Cat 5e, Cat 6, Cat 6a, Cat 7, and Cat 7a cables.
Q: How far can this device test cables?
A: It can test data cables up to 305 meters (1000 feet) with a maximum resistance of 100Ω.
Q: Does it include a tone generator for cable tracing?
A: Yes, it has a built-in tone generator with three selectable tones to help locate cables.
(MTC25)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range |
---|---|
Operating Temperature | 0°C to 50°C |
Operating Humidity | 10% to 90%, non-condensing |
Maximum Voltage | 60V DC or 55V AC (between 2 pins) |
Battery Type | 2 x AAA 1.5V |
Cable Types Supported | Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3 |
Maximum Cable Length | 305 meters |
Minimum Cable Length | 0.5 meters for split pair detection |
Maximum Cable Resistance | Max. 100 ohms DC |
LED Status Indicators | Twisted pairs (RJ45)/Coax, Continuity, X (Cross-overs), S (Shield status), Split, Reversal, Miswire, Short, and Low Battery |
Detachable Remote | RJ45 |
Dimensions | 127 × 55 × 28 mm |
Weight | 126g |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MTC25 |
Barcode # | 6008229041570 |
Package Weight | 0.197kg |
Package Width | 0.136m |
Package Height | 0.036m |
Package Length | 0.230m |
TYPE | VALUE |
---|---|
Type | Cable Mapper |
Brand | Major Tech |
Dimensions | 141 x 55 x 28mm |
Battery | 2 x AAA 1.5V |
Weight | 126g |
Cable Types | Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3, Coax |
Maximum Voltage | 60V DC/55V AC |
Maximum Cable Length | 305m |
