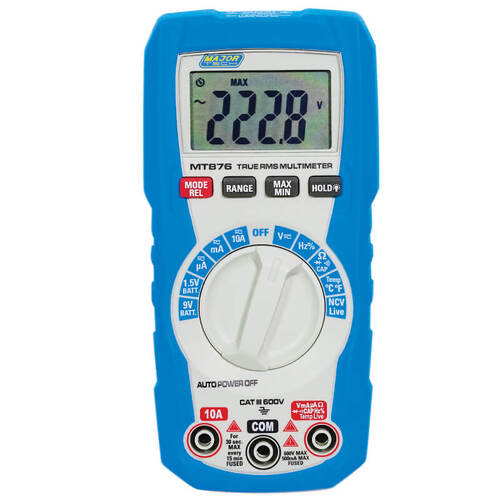

Major Tech MT876 | 600V AC/DC True RMS Multimeter
Learn more by watching our Major Tech MT876 | 600V AC/DC True RMS Multimeter video.
Additional related video.
Description:
The MT876 is a compact True RMS multimeter supplied in a double moulded rubber housing, designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters. This is an auto ranging multimeter with the option of manual override and has a 4000 count display with a back light. The “Live” function allows the user to physically connect one lead to the Live or Neutral wires to determine the Live contact and when detected, LIVE is displayed on screen and the NCV indicator light flashes and the buzzer sounds. This meter conforms to the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, the air conditioning industry and DIY users.
Features:
(MT876)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Function | Range | Resolution | Accuracy |
| DC Voltage | 200mV – 600V | 0.1mV | ±(0.5% + 5 Digits) |
| AC Voltage | 200V – 600V | 0.1V | ±(1.2% + 10 Digits) |
| DC Current | 200mA – 10A | 0.1mA | ±(1.2% + 5 Digits) |
| AC Current | 200mA – 10A | 0.1mA | ±(1.2% + 5 Digits) |
| Duty Cycle | 0.5% – 99.9% | 0.001 | ±(1.2% + 5 Digits) |
| Resistance | 200Ω – 2MΩ | 0.1Ω | ±(0.8% + 5 Digits) |
| Temperature | -18°C – 1000°C | 1°C | ±(1.5% + 5°C) |
| True RMS Measurements | Yes | ||
| AC Bandwidth | 50Hz to 1kHz | ||
| Digital Display | 2000 | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Overrange Indication | Yes | ||
| Input Impedance | >10MΩ VDC & VAC | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 221g | ||
| Dimensions | 154 x 74 x 43mm | ||
| Safety Specs | IEC61010-01 CAT III 600V | ||
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT876 |
| Barcode # | 6008229034190 |
| Shipping Weight | 0.4600kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.252m |
| Shipping Length | 0.155m |
| TYPE | VALUE |
|---|---|
| Type | Multimeter |
| Brand | Major Tech |
| Batteries | 2 x AAA |
| Voltage (V) | 600 |
| Dimensions (mm) | 154 x 74 x 43mm |
