Learn more by watching our Major Tech MT26 | 600V AC/DC True RMS Bluetooth Multimeter video.
Description:

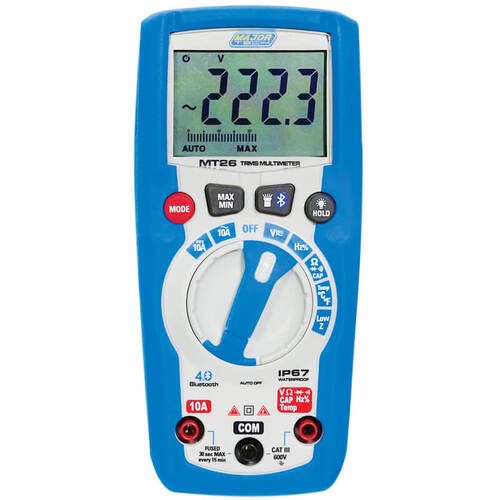

The MT26 is a CAT III 600V True RMS compact multimeter offering measurements of AC and DC voltage, AC and DC current, frequency, capacitance, resistance and temperature. The meter has a large 4000 count backlit LCD with the added advantage of an analogue bar graph. The Low Z function has a low pass filter to eliminate errors caused by “Ghost” voltages. There is a built-in LED flashlight for dimly lit areas and a tilt stand. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating.
Features:
(MT26)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 400mV – 600V | 1V | ±(1.0% + 3 Digits) |
Low Z DC Voltage | 400mV – 400V | 0.1V | ±(1.5% + 5 Digits) |
AC Voltage | 4.000V – 600V | 1V | ±(1.5% + 5 Digits) |
Low Z AC Voltage | 4V – 400V | 0.1V | ±(1.5% + 5 Digits) |
DC Current | 4A – 10A | 10mA | ±(2.0% + 3 Digits) |
AC Current | 4A – 10A | 10mA | ±(2.5% + 3 Digits) |
Resistance | 400Ω – 40MΩ | 10kΩ | ±(1.5% + 5 Digits) |
Capacitance | 40nF -4000µF | 1µF | ±(3.0% + 5 Digits) |
Frequency | 9.999Hz – 9.999MHz | 1kHz | ±(1.0% + 5 Digits) |
Temperature | -18°C – 760°C | 0.1°C | ±(2.0% + 5°C) |
Duty Cycle | 1% – 99.9% | 0.1% | ±(1.2% + 2 Digits) |
AC Response | True RMS | ||
Digital Display | 4000 Count | ||
Continuity Test | Audible signal if the resistance is approx. 50Ω or less | ||
Diode Test | Test current 1.5mA typical, open circuit voltage 3V DC typical | ||
Bluetooth | Bluetooth 4.0 Technology | ||
Data Hold | Yes | ||
Back Light | Yes | ||
Enclosure | IP67 Dust & Waterproof Double Moulded | ||
Batteries | 3 x AAA | ||
Dimensions | 147 x 68 x 50mm | ||
Weight | 318g |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT26 |
Barcode # | 6008229034442 |
Package Weight | 0.545kg |
Package Width | 0.060m |
Package Height | 0.180m |
Package Length | 0.120m |
TYPE | VALUE |
---|---|
Type | Compact Multimeter |
Brand | Major Tech |
Dimensions | 147 x 68 x 50mm |
Batteries | 3 x AAA |
Bluetooth | Yes |
